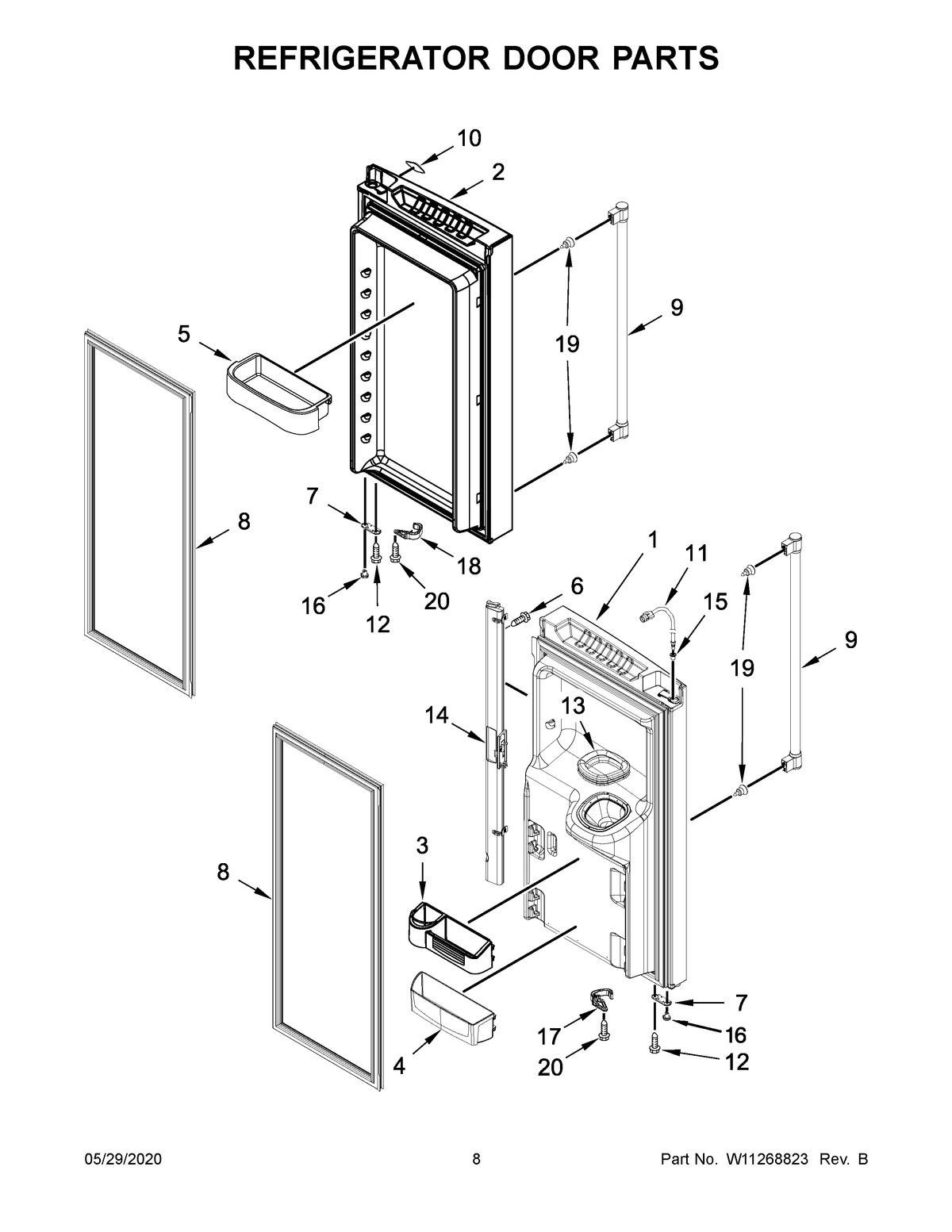

MFI2570FEZ06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
2DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
3MAY W10323808
4MAY W10212139
5MAY W10224961
6MAY 12990204
7MAY 12968202AP
8GASKET, DOOR RIGHT HAND (GREY)
9ASSEMBLY, HANDLE (STAINLESS)
10MAY W10612926
11MAY W10511930
12Screw (8)
13MAY W10287601
14MULLION, DOOR STAINLESS
15MAY 12996601
16MAY 12028505AP
17LATCH, DOOR CLOSER LEFT HAND (GREY)
18LATCH, DOOR CLOSER RIGHT HAND (GREY)
19SCREW
20SCREW
