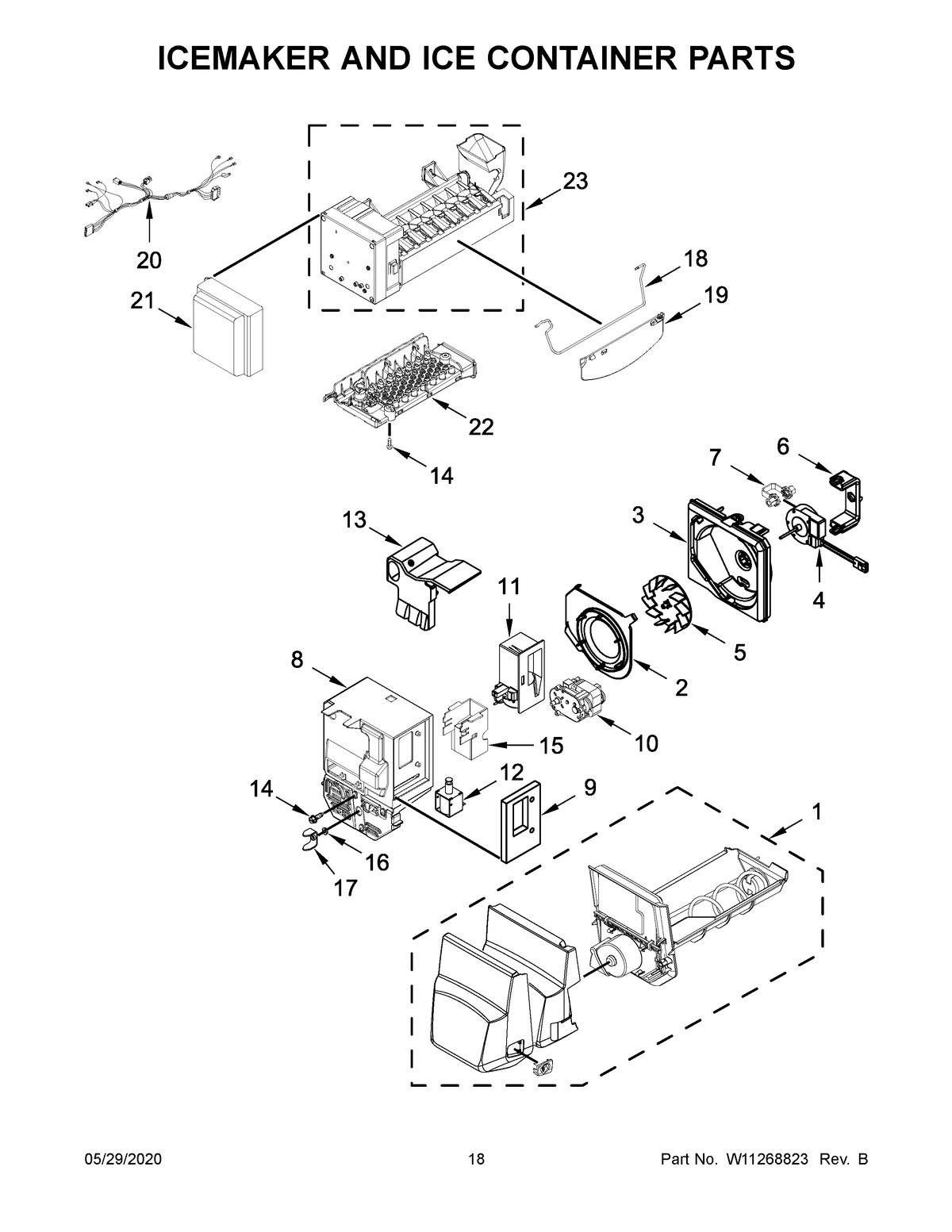

MFI2570FEZ06 10 – ICEMAKER AND ICE CONTAINER PARTS

MFI2570FEZ06 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

MFI2570FEZ06 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1ASSEMBLY, ICE BIN
2MAY W10121282
3MAY W10309863
4MAY W10308033
5MAY W10123444
6MAY 12956603
7MAY W10151687
8MAY W10309864
9MAY 12920001
10MAY W10317991
11DAMPER, CONTROL
12ASSEMBLY, SOLENOID
13MAY W10118612
14SCREW (10)
15MAY W10346971
16WASHER
17YOKE, ICE (DISPENSER)
18ARM, SHUTOFF
19MAY W10351019
20MAY W10826037
21MAY W10290556
22IMPINGER ASSY.
23MAY W10300024
