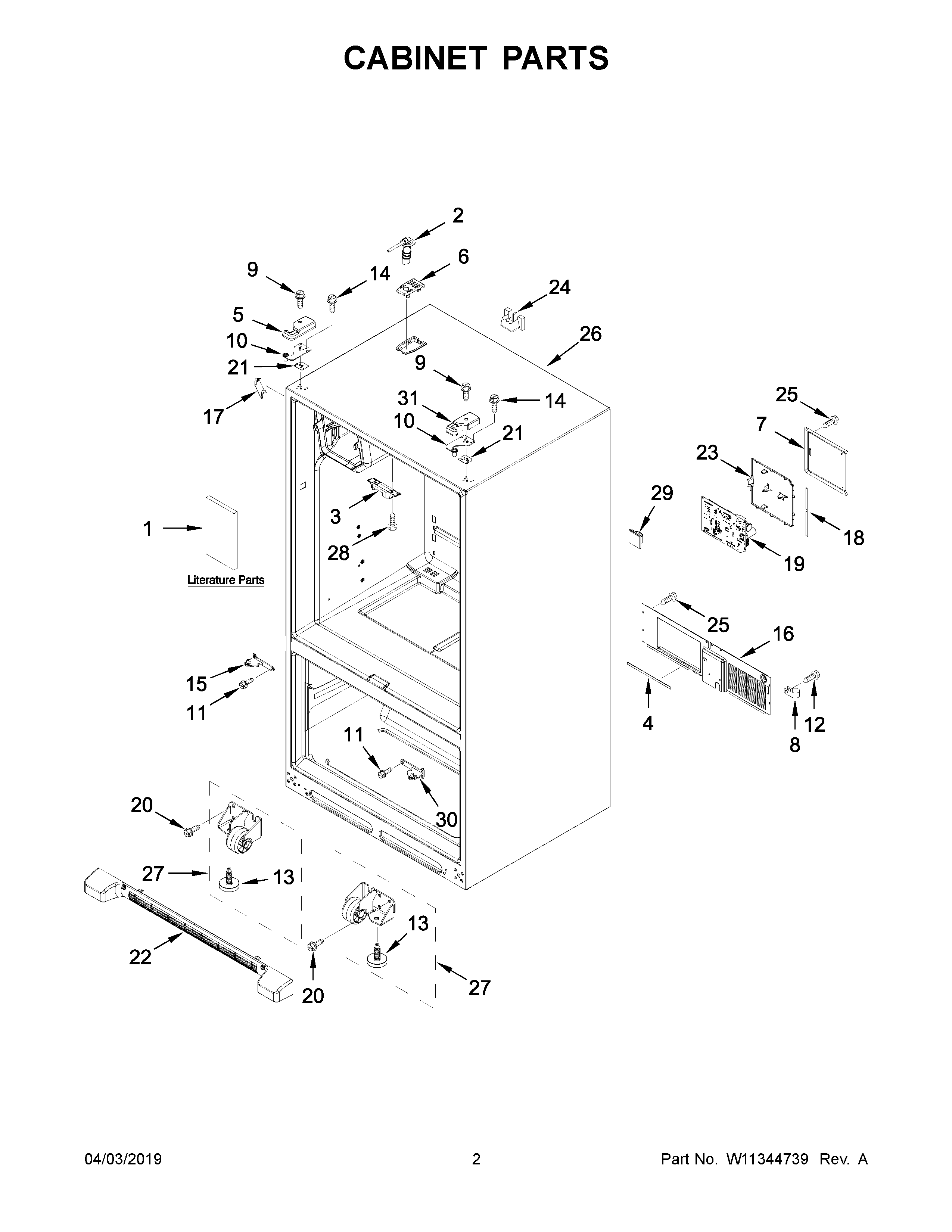

MFI2570FEZ07 02 – CABINET PARTS

Products

Position	Product
1B	USE AND CARE GUIDE
1	MAY W10826081
1C	ENERGY GUIDE
1A	MAY W10826085
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	COVER, TOP HINGE (LEFT) (GREY)
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	MAY W10673840
12	SCREW (10)
13	Brake, Foot
14	SCREW (6)
15	HINGE, CENTER LEFT HAND (GREY)
16	MAY W10270394
17	COVER, CORNER (GREY)
18	GASKET, CONTROL BOX
19	CONTROL, ELECTRONIC
20	MAY W10709365
21	MAY 12999501
21A	MAY 12999502
22	MAY W10534155
23	MAY W10296541
24	MAY W10658542
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (LEFT HAND)
27A	ROLLER ASSEMBLY (RIGHT HAND)
28	SCREW
29	WPM0104106 Whirlpool Refrigerator Clip
30	HINGE, CENTER RIGHT HAND (GREY)
31	MAY 12962302AP
