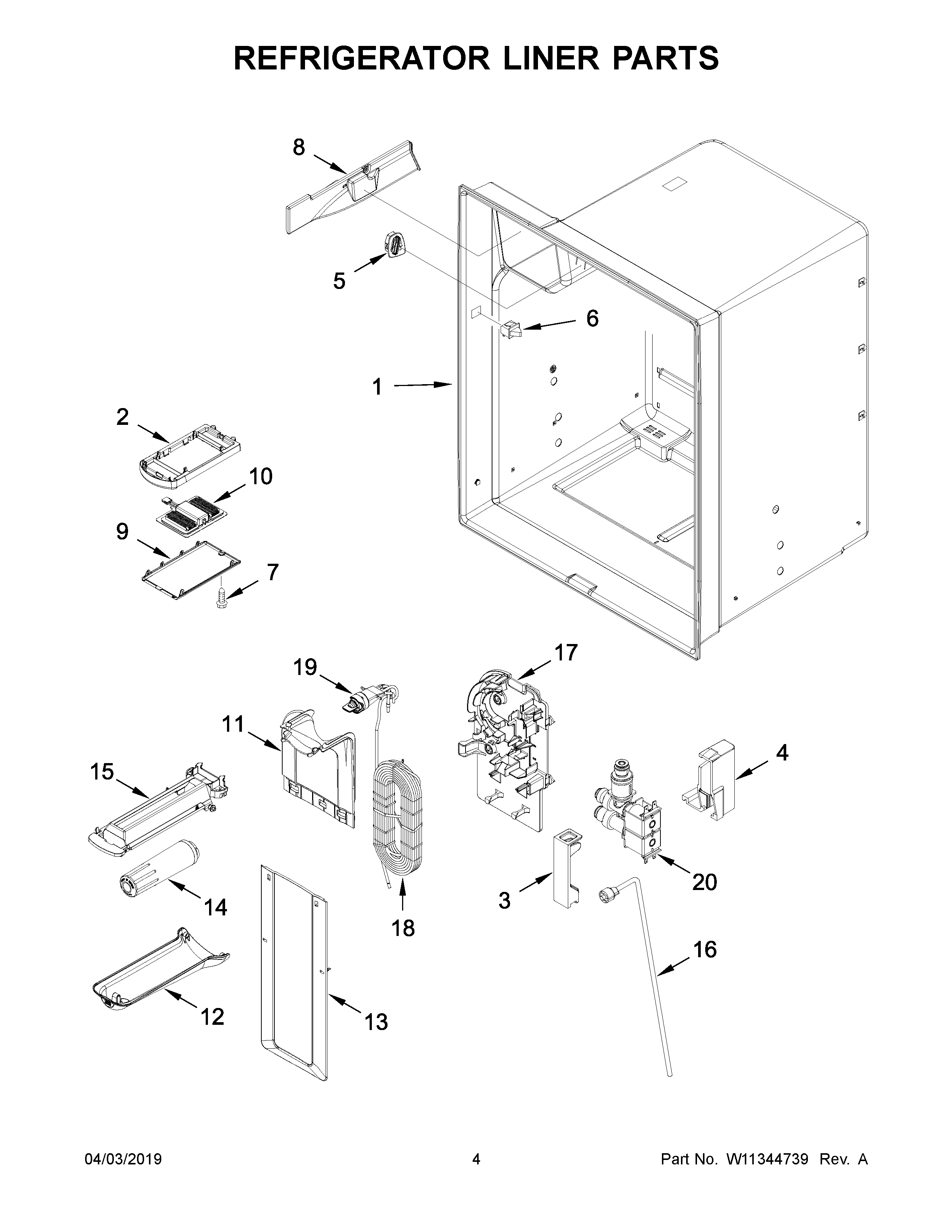

MFI2570FEZ07 03 – REFRIGERATOR LINER PARTS

MFI2570FEZ07 03 – REFRIGERATOR LINER PARTS

Written by

in

MFI2570FEZ07 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	HOUSING, REFRIGERATOR LED
3	MAY W10118194
4	MAY W10118193
5	ASSEMBLY, AIR GRILLE
6	MAY W10847848
7	SCREW (STAINLESS)
8	MAY W10309869
9	LENS, RC LED
10	MODULE, LED LIGHT
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W11256384
15	MAY 12955901
16	MAY W10444033
17	BRACKET, WATER TANK AND VALVE
18	MAY W11308017
19	MAY 12664501SP
20	VALVE, WATER INLET
