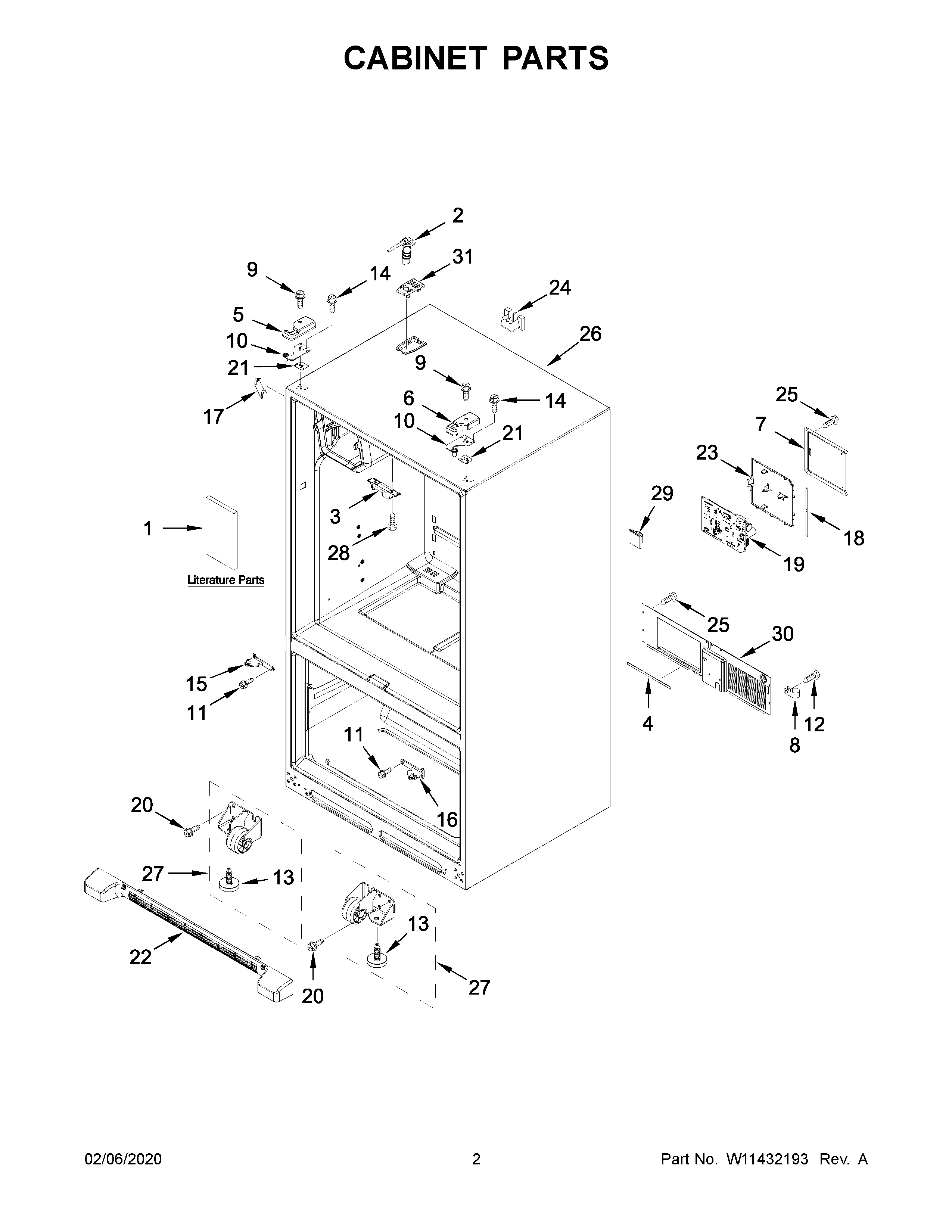

MFI2570FEZ08 02 – CABINET PARTS

MFI2570FEZ08 02 – CABINET PARTS

Written by

in

MFI2570FEZ08 02 – CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1TECH SHEET (ENGLISH)
1ATECH SHEET (FRENCH)
1BUSE AND CARE GUIDE
2TUBE, WATER
3Block, Pivot
4MAY B5759655
5COVER, TOP HINGE (LEFT) (GREY)
6MAY 12962302AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10AMAY 12963205ED
10MAY 12963204ED
11MAY W10673840
12SCREW (10)
13Brake, Foot
14SCREW (6)
15HINGE, CENTER LEFT HAND (GREY)
16HINGE, CENTER RIGHT HAND (GREY)
17COVER, CORNER (GREY)
18GASKET, CONTROL BOX
19MAY W11176613
20MAY W10709365
21MAY 12999501
21AMAY 12999502
22MAY W10534155
23MAY W10296541
24MAY W10658542
25SCREW
26LINER (NOT A SERVICEABLE PART)
27ROLLER ASSEMBLY (LEFT HAND)
27AROLLER ASSEMBLY (RIGHT HAND)
28SCREW
29WPM0104106 Whirlpool Refrigerator Clip
30MAY W10270394
31MAY 12981401AP
