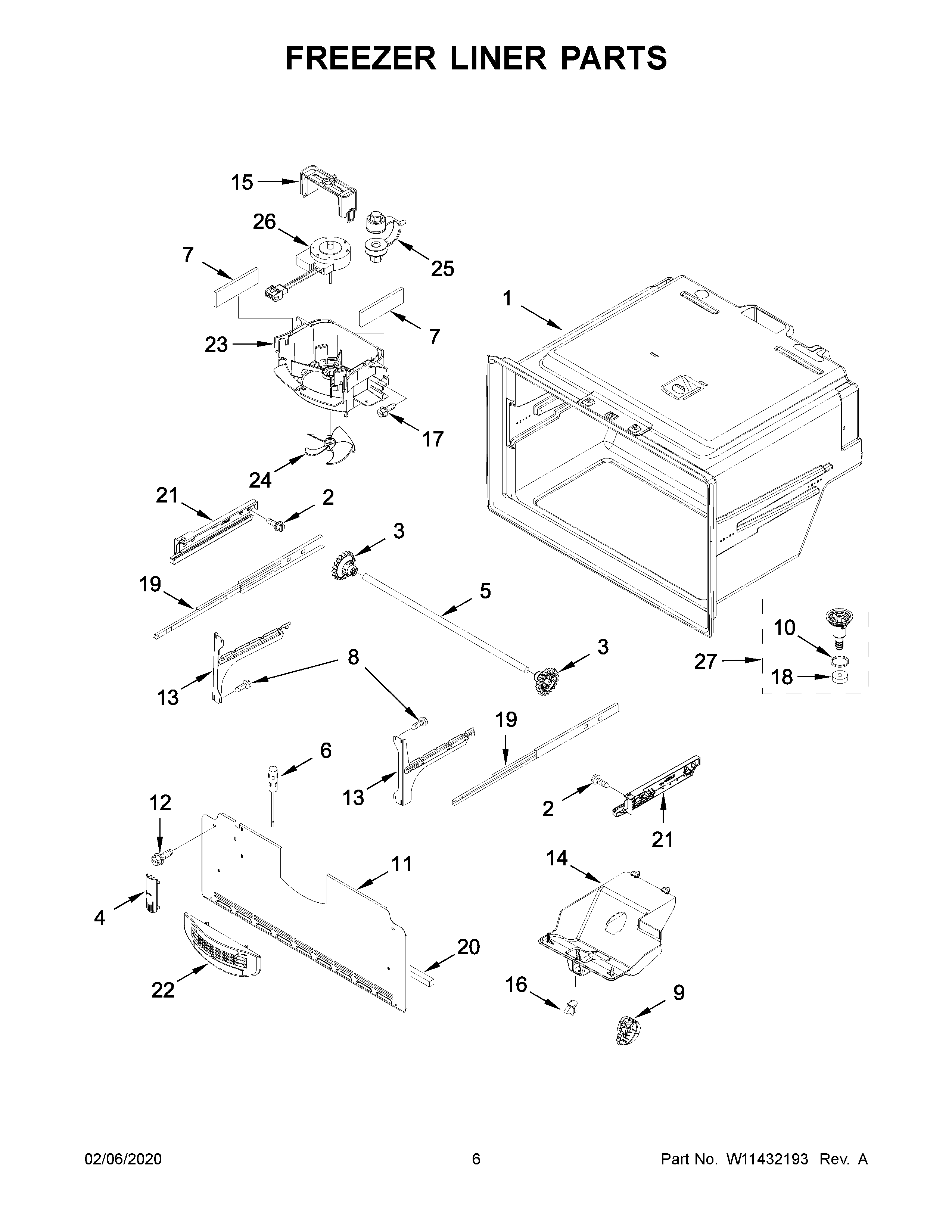

MFI2570FEZ08 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw (6)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12815301
5	MAY W10802332
6	THERMISTOR
7	Gasket, Bottom
8	Screw (8)
9	MAY W11251749
10	MAY M0500703
11	COVER, EVAP
12	SCREW (10)
13A	MAY W10330993
13	MAY W10330991
14	MODULE, LIGHT
15	MAY 12956601
16	SWITCH, LIGHT
17	MAY 12990504
18	Gasket
19	SLIDE, DOOR
20	GASKET, BOTTOM
21A	MAY W10284683
21	MAY W10284682
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	GROMMET, FAN MOTOR
26	MOTOR, EVAPORATOR (INCLUDES HEATER HARNESS AND DEFROST THERMOSTAT)
27	MAY W10662407
