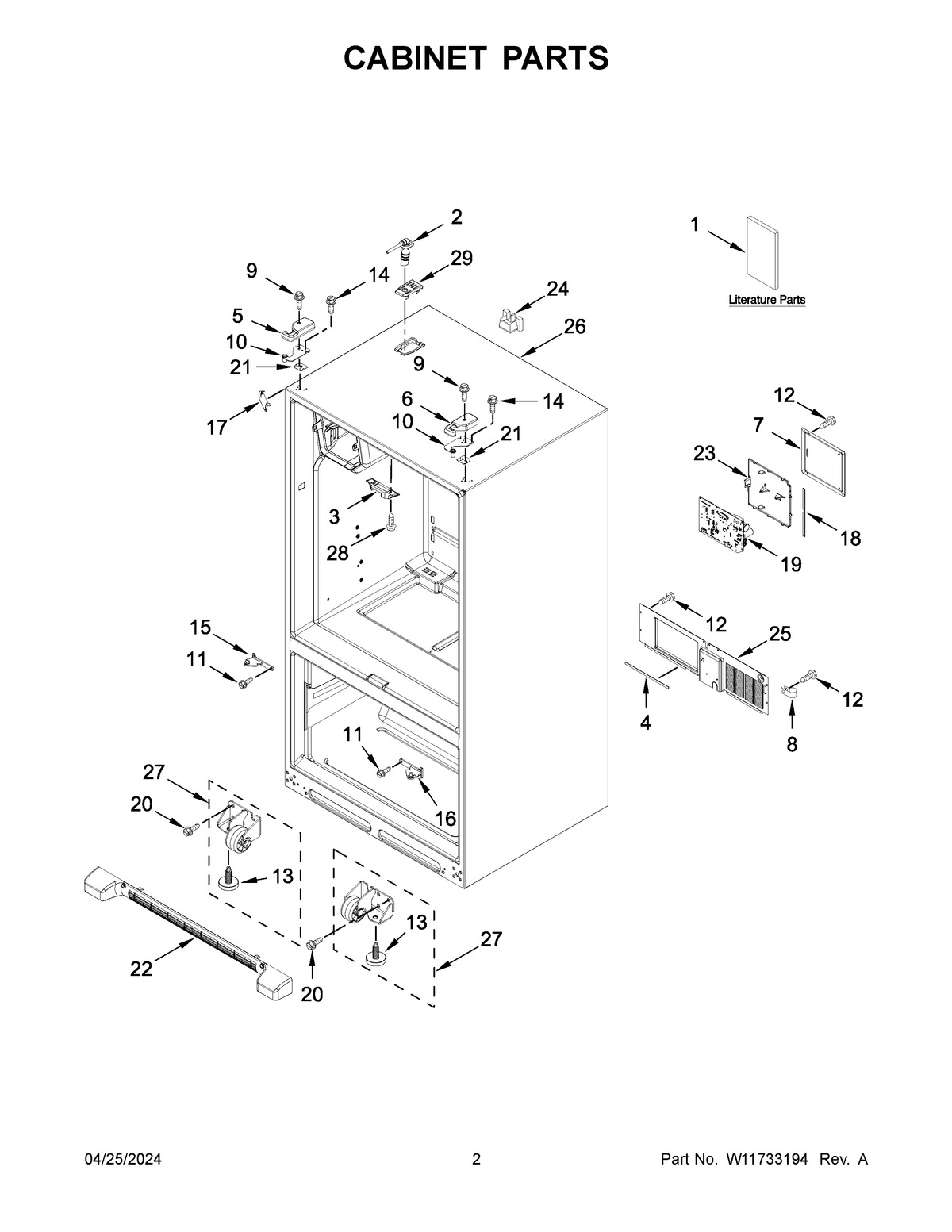

MFI2570FEZ16 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	OWNERS MANUAL
1	TECH SHEET
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5	WPW10337648 Whirlpool Refrigerator Cover
6	WPW10191117 Whirlpool Refrigerator Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
10	W11592375 Whirlpool Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W11686675 Whirlpool Screw
13	WPW10141622 Whirlpool Leveler
14	WP489349 Whirlpool Refrigerator Screw
15	W11642008 Whirlpool Door Hinge
16	W11642010 Whirlpool Door Hinge
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10914798 Whirlpool Gasket
19	W11548534-includeCORE Whirlpool W11548534 Refrigerator Electronic Control Board
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W11686793 Whirlpool Block
25	WPW10270394 Whirlpool Refrigerator Back Cover
26	CABINET (NOT A SERVICABLE PART)
27	WPW10515763 Whirlpool Refrigerator Cabinet Roller
27A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
28	W11693756 Whirlpool Screw Assembly
29	W10191141 Whirlpool Refrigerator Tube Cover
