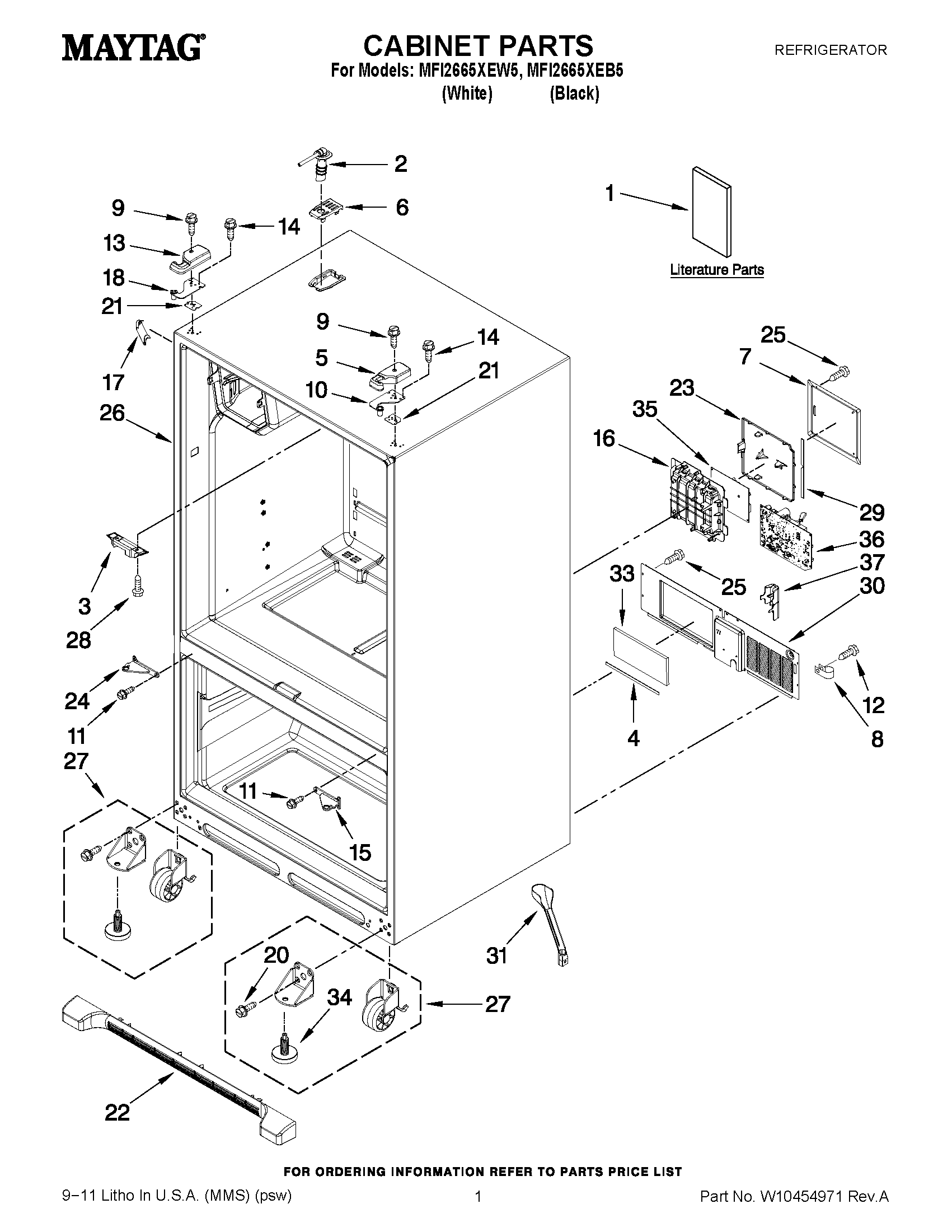

MFI2665XEB5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10314958
1	TECH SHEET
1	MAY W10357231
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
5	MAY 12962302W
6	MAY 12981401B
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY W10337634
13	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY W10285271
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY W10244559
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY W10296541
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSY. (FRONT) (RIGHT)
27	ROLLER ASSY. (FRONT) (LEFT)
28	Screw (4)
29	GASKET-HV CNTRL-2
30	MAY W10211854
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	CONTROL, POWER SUPPLY ELECTRONIC
36	MAY W10438707
37	GUARD-WATER VALVE
