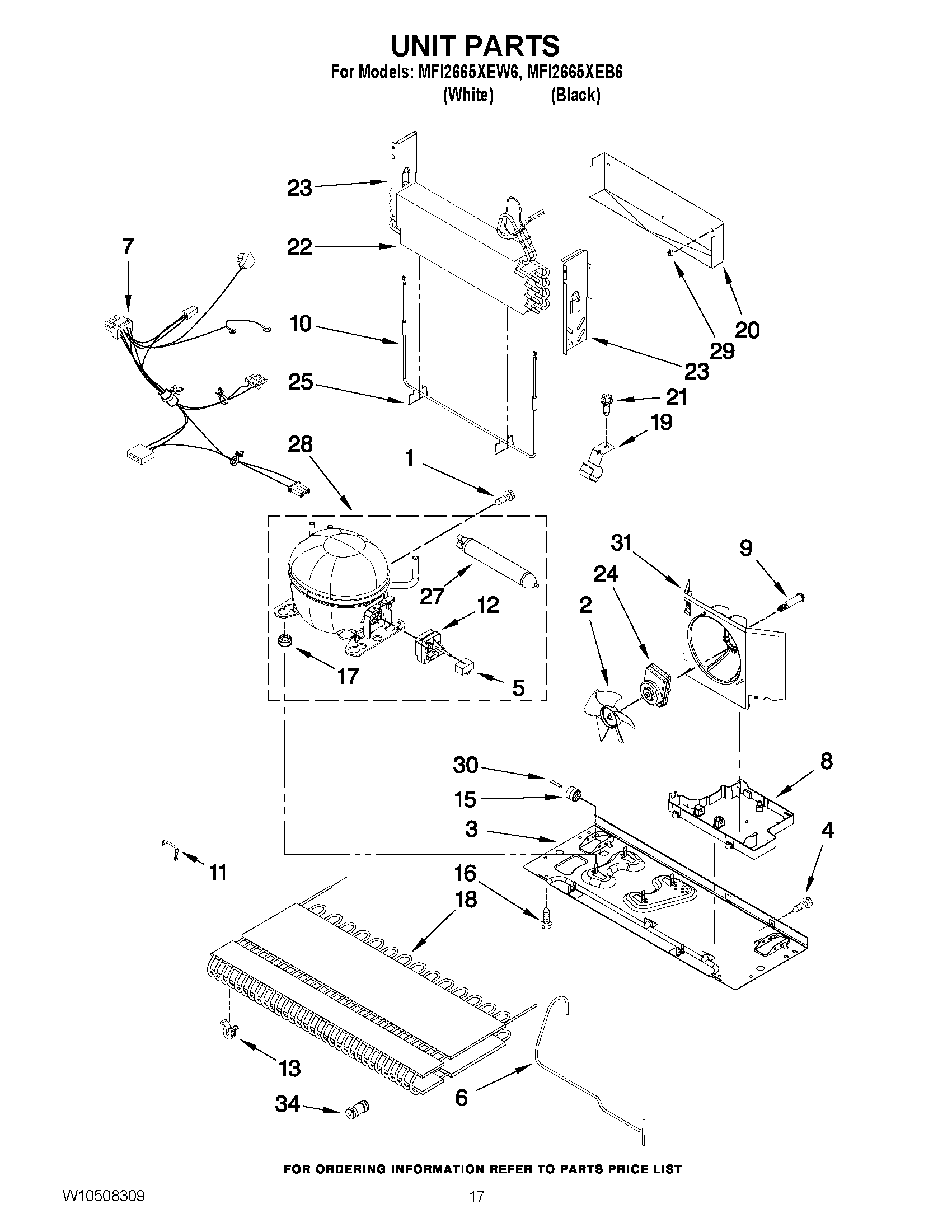

MFI2665XEB6 09 – UNIT PARTS

MFI2665XEB6 09 – UNIT PARTS

Written by

in

MFI2665XEB6 09 – UNIT PARTS

Products

PositionProduct
NIMAY 876764
NIValve, Access (3/4“)
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NILINER (NOT A SERVICEABLE PART)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
1MAY 12992301
2MAY 12825803
3MAY W10480111
4SCREW (10)
5Capacitator (Production)
6MAY W10233569
7MAY W10402006
8MAY W10296785
9MAY W10216919
10MAY 12729123
11MAY W10174384
12DEVICE, START
13GROMMET, COND (4)
15Roller (2)
16MAY 12992101
17Grommet (4)
18MAY W10346415
19MAY W10281329
20MAY W10292803
21SCREW
22MAY W10313899
23Dam (Left Side)
23Dam (Right Side)
24MAY W10239053
25W11673433 Whirlpool Clip
27Drier
28MAY W10445423
29MAY 10623002
30Axle, Roller (2)
31SHROUD
34CONNECTOR, WATER
