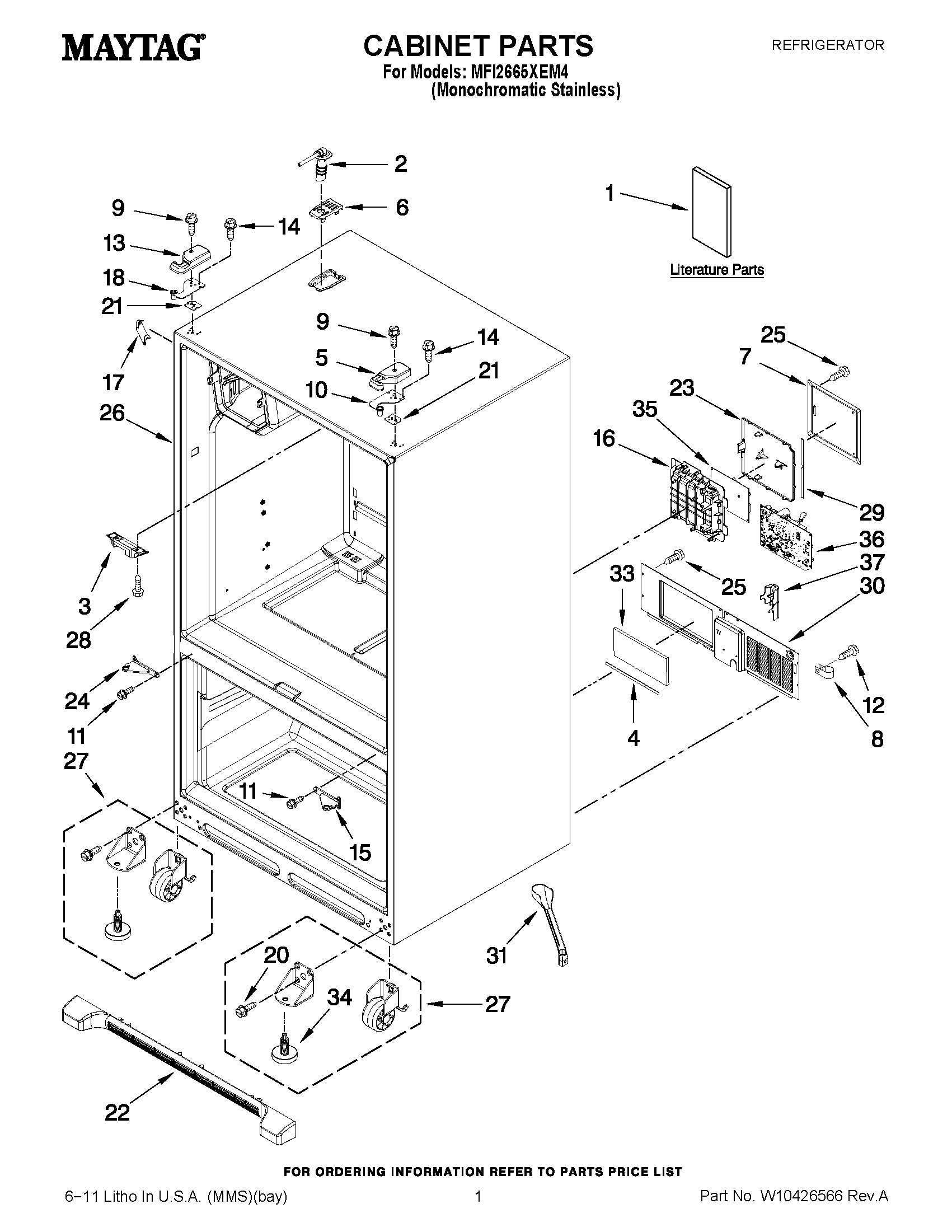

MFI2665XEM4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10410727
1	MAY W10357231
1	MAY W10314958
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	MAY W10285271
17	COVER, CORNER (GREY)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE, TOE (GREY)
23	MAY W10296541
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSY. (FRONT) (RIGHT)
27	ROLLER ASSY. (FRONT) (LEFT)
28	Screw (4)
29	GASKET-HV CNTRL-2
30	MAY W10211854
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10285199
36	CONTROL, ELECTRONIC POWER SAUPPLY
37	GUARD-WATER VALVE
