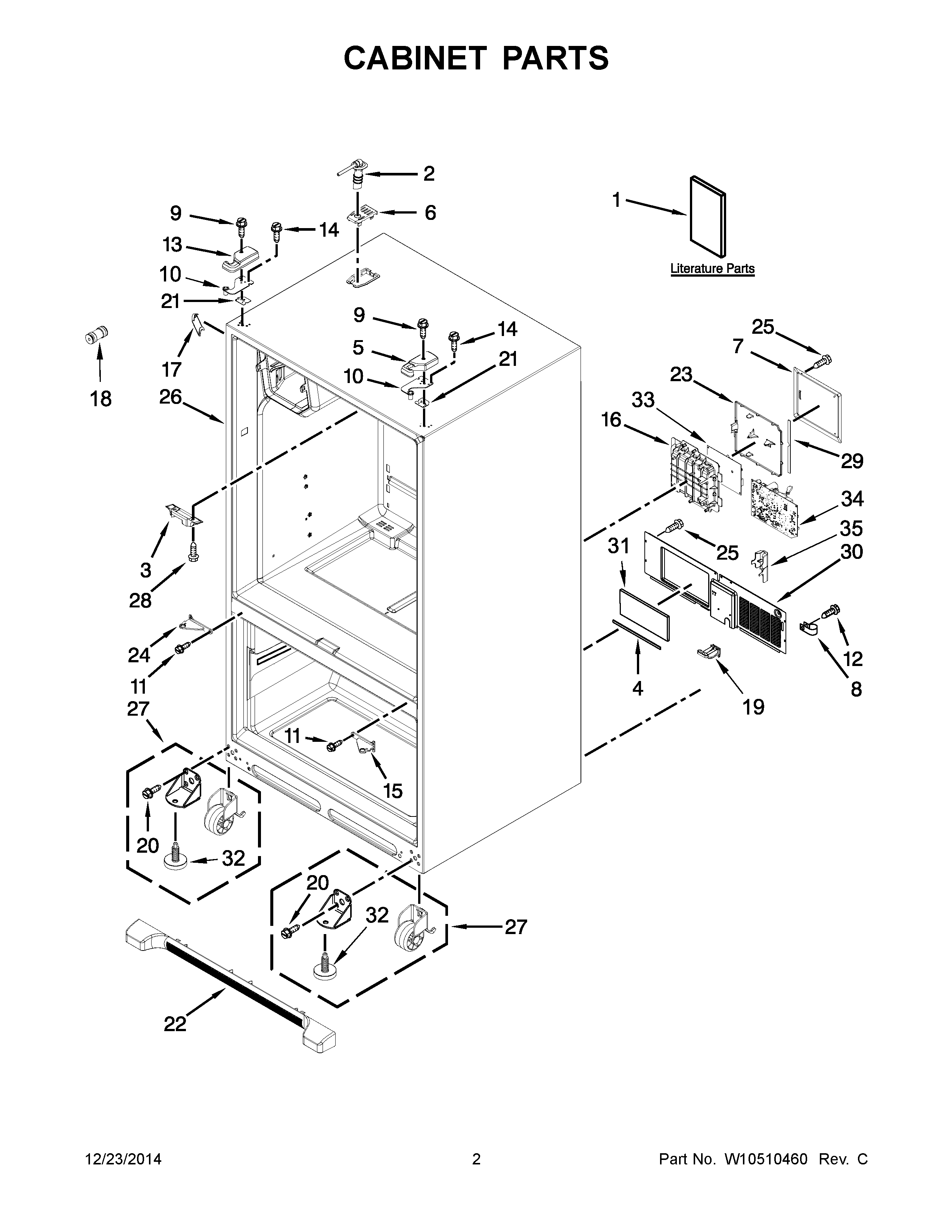

MFI2665XEM7 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10357231
1A	MAY W10314958
1	MAY W10475393
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	MAY W10339086
12	SCREW (10)
13	COVER, TOP HINGE (LEFT) (GREY)
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	MAY W10456699
17	COVER, CORNER (GREY)
18	CONNECTOR, WATER
19	MAY W10485986
20	Screw (8)
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	MAY W10296541
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (LEFT HAND)
27A	ROLLER ASSEMBLY (RIGHT HAND)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211854
31	Insulation, Sound
32	Brake, Foot
33	CONTROL, POWER SUPPLY ELECTRONIC
34	MAY W10438707
35	GUARD-WATER VALVE
