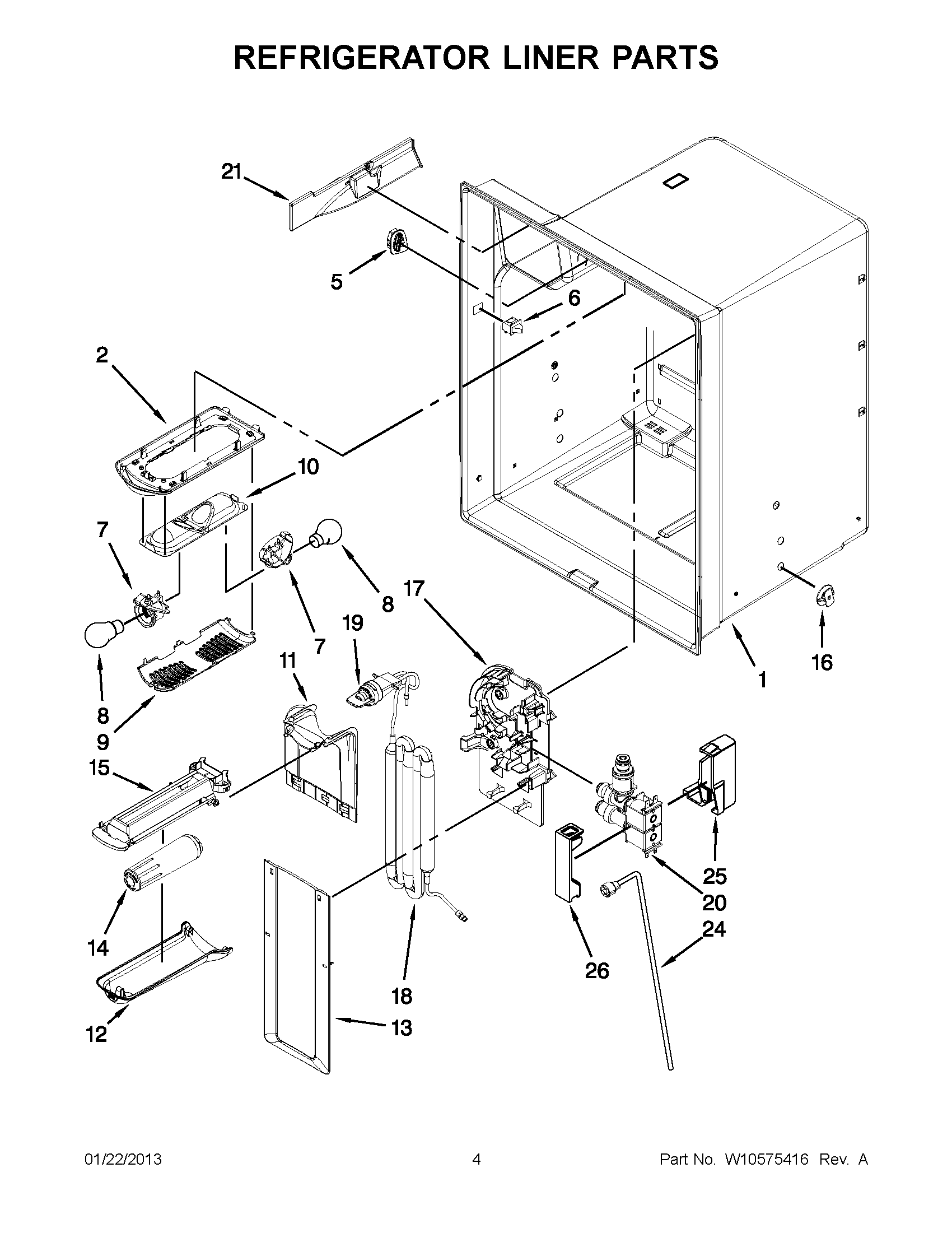

MFI2665XEM8 02 – REFRIGERATOR LINER PARTS

MFI2665XEM8 02 – REFRIGERATOR LINER PARTS

Written by

in

MFI2665XEM8 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10468891
5MAY W10555981
6SWITCH, LIGHT
7Socket, Light
8BULB, LIGHT
9MAY 12905902
10MAY W10443023
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W10336197
15MAY 12955901
16MOUNT, CRISPER
17BRACKET, WATER TANK AND VALVE
18MAY W10418477
19MAY 12664501SP
20MAY W10312696
21MAY W10309869
24MAY W10444033
25MAY W10118193
26MAY W10118194
