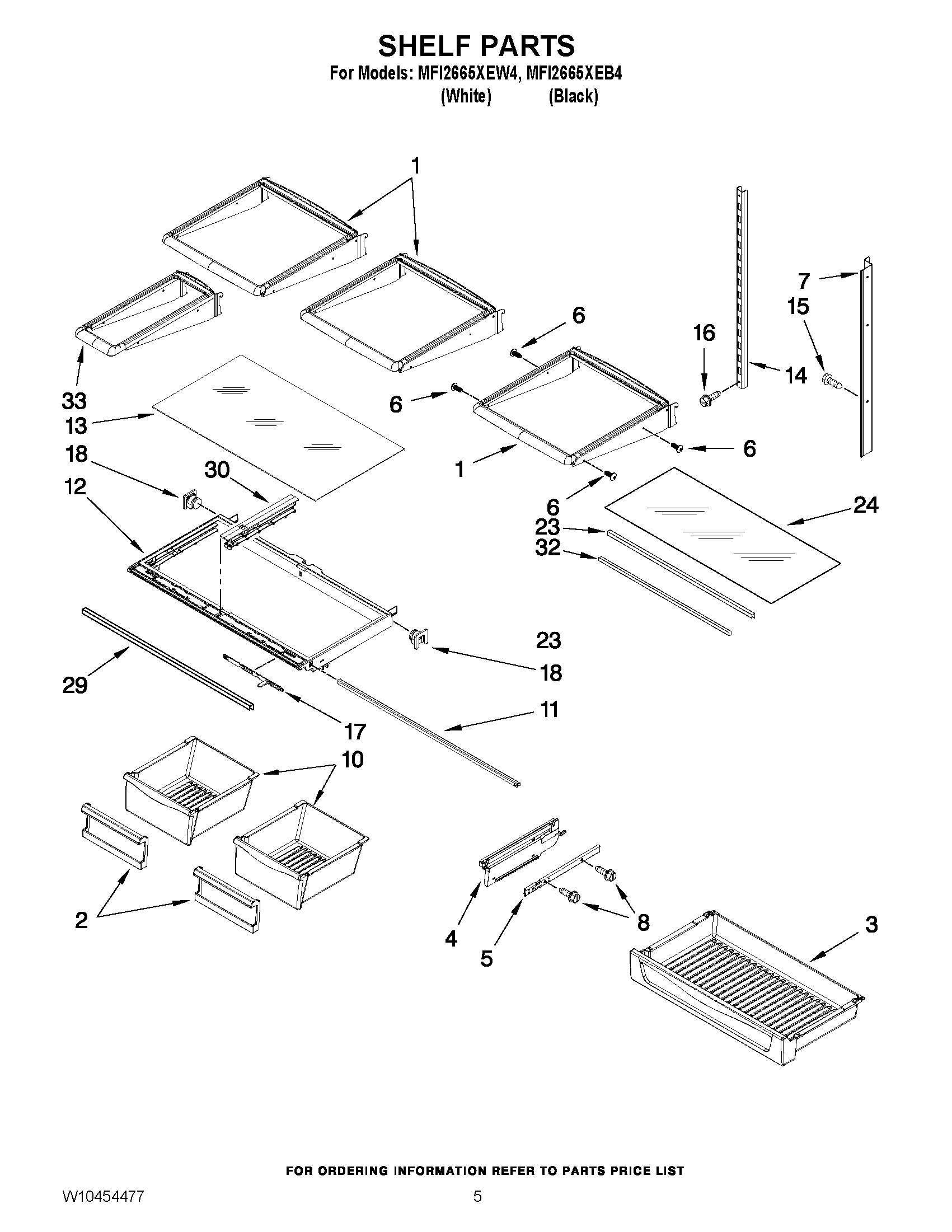

MFI2665XEW4 03 – SHELF PARTSadmin2025-04-26T09:13:46+00:00MFI2665XEW4 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | SHELF, GLIDE |
| 2 | HANDLE, CRISPER PAN (2) |
| 3 | DRAWER, PANTRY |
| 4 | ENDCAP, PANTRY (RIGHT) |
| 4 | ENDCAP, PANTRY (LEFT) |
| 5 | RUNNER, CAB (RIGHT) |
| 5 | RUNNER, CAB (LEFT) |
| 6 | Screw (4) |
| 7 | MAY W10251968 |
| 7 | LADDER, SIDE RH |
| 8 | MAY W10185612 |
| 10 | MAY 12804601SP |
| 11 | Brace, Crisper (2) |
| 12 | MAY W10329866 |
| 13 | MAY 12204824 |
| 14 | MAY W10273464 |
| 15 | MAY 12990513 |
| 16 | MAY 12990515 |
| 17 | MAY 12530805SP |
| 18 | MAY 13062602 |
| 23 | MAY 12655902SP |
| 24 | GLASS, CRISPER |
| 29 | MAY W10231345 |
| 30 | RAIL, CENTER |
| 32 | MAY 12227305WH |
| 33 | SHELF, MINI |
