MFI2665XEW7 05 – ICEMAKER PARTS – Aparts

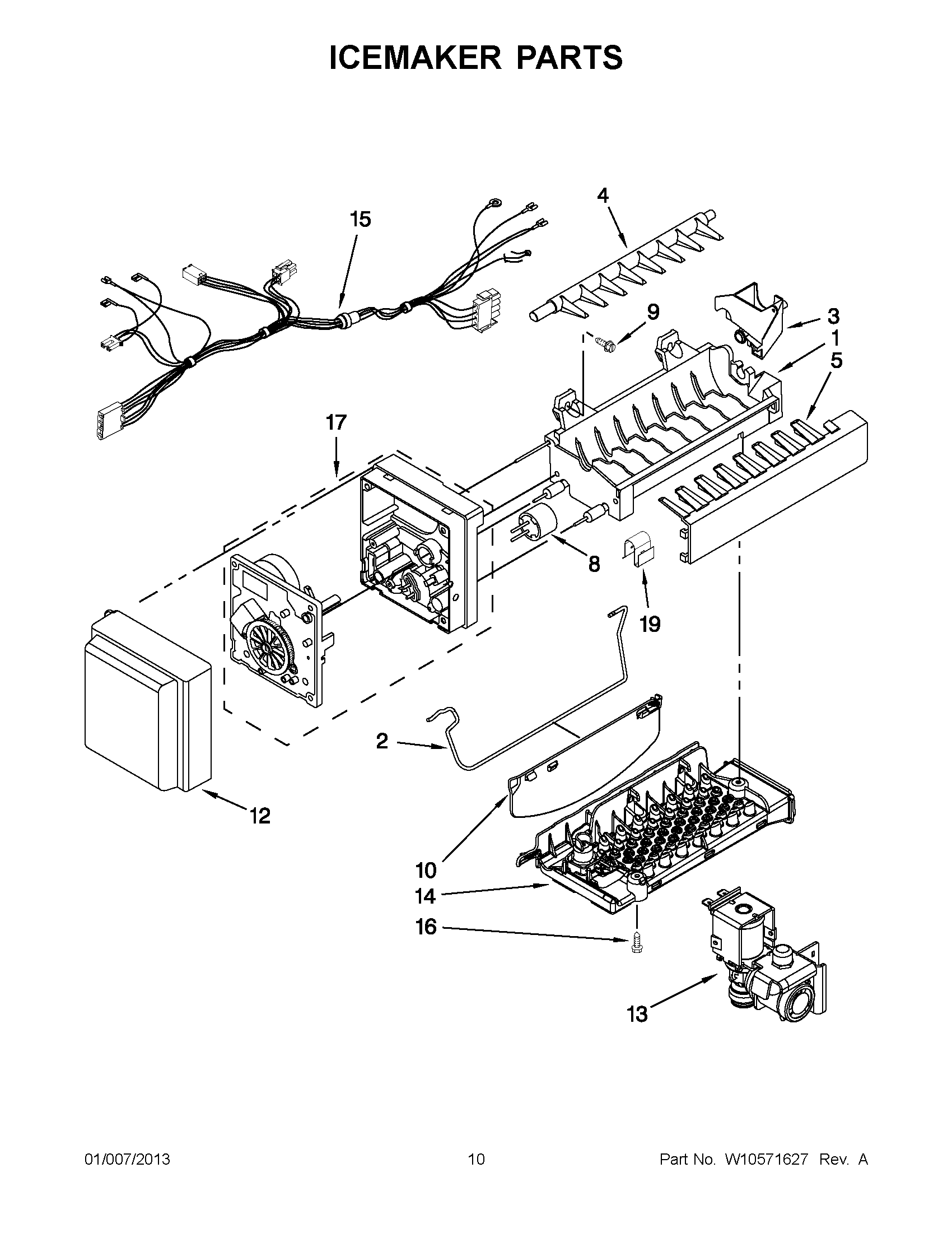

MFI2665XEW7 05 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
9	MAY W10068250
10	MAY W10351019
12	COVER, FRONT
13	MAY W10498990
14	IMPINGER ASSY.
15	MAY W10404016
16	SCREW (10)
17	ASSEMBLY, MODULE
19	Clip
100	ASSEMBLY, ICEMAKER
