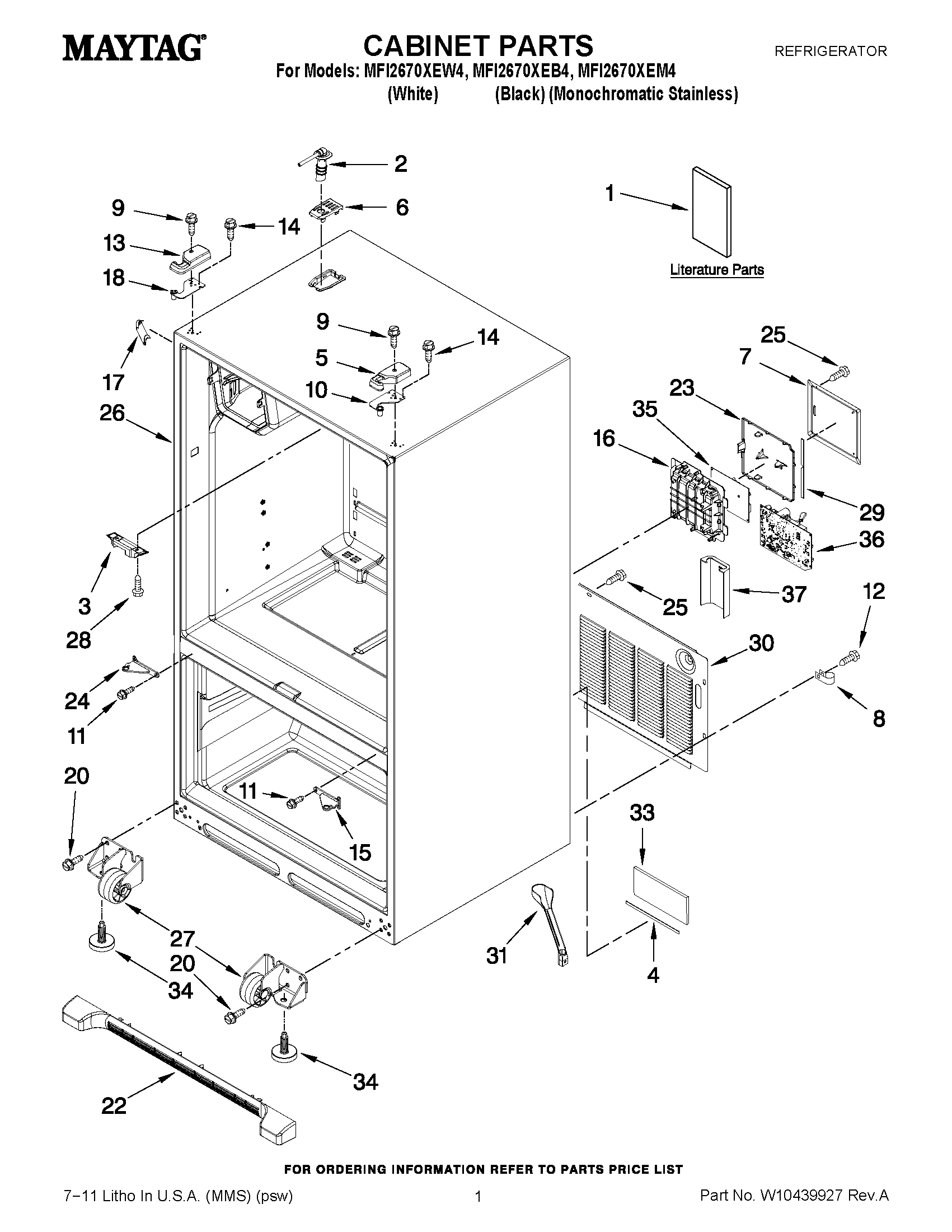

MFI2670XEB4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10432299
1	MAY W10314958
1	MAY W10310961
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302W
5	MAY 12962302B
5	MAY 12962302AP
6	MAY 12981401B
6	MAY 12981401W
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
13	MAY 12962301AP
13	MAY 12962301W
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY W10285271
17	Cover, Corner (2) (White)
17	COVER, CORNER (GREY)
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
20	Screw (8)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE, TOE (GREY)
22	MAY W10244559
23	MAY W10296541
24	HINGE, CENTER (LT) (GREY)
24	HINGE, CENTER (BLACK, LEFT)
24	Hinge, Center (LT) (White)
25	SCREW
26	ROLLER ASSY. (FRONT) (RIGHT)
27	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSY. (FRONT) (LEFT)
28	Screw (4)
29	GASKET-HV CNTRL-2
30	MAY W10211854
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10285199
36	CONTROL, ELECTRONIC POWER SAUPPLY
37	GUARD-WATER VALVE
