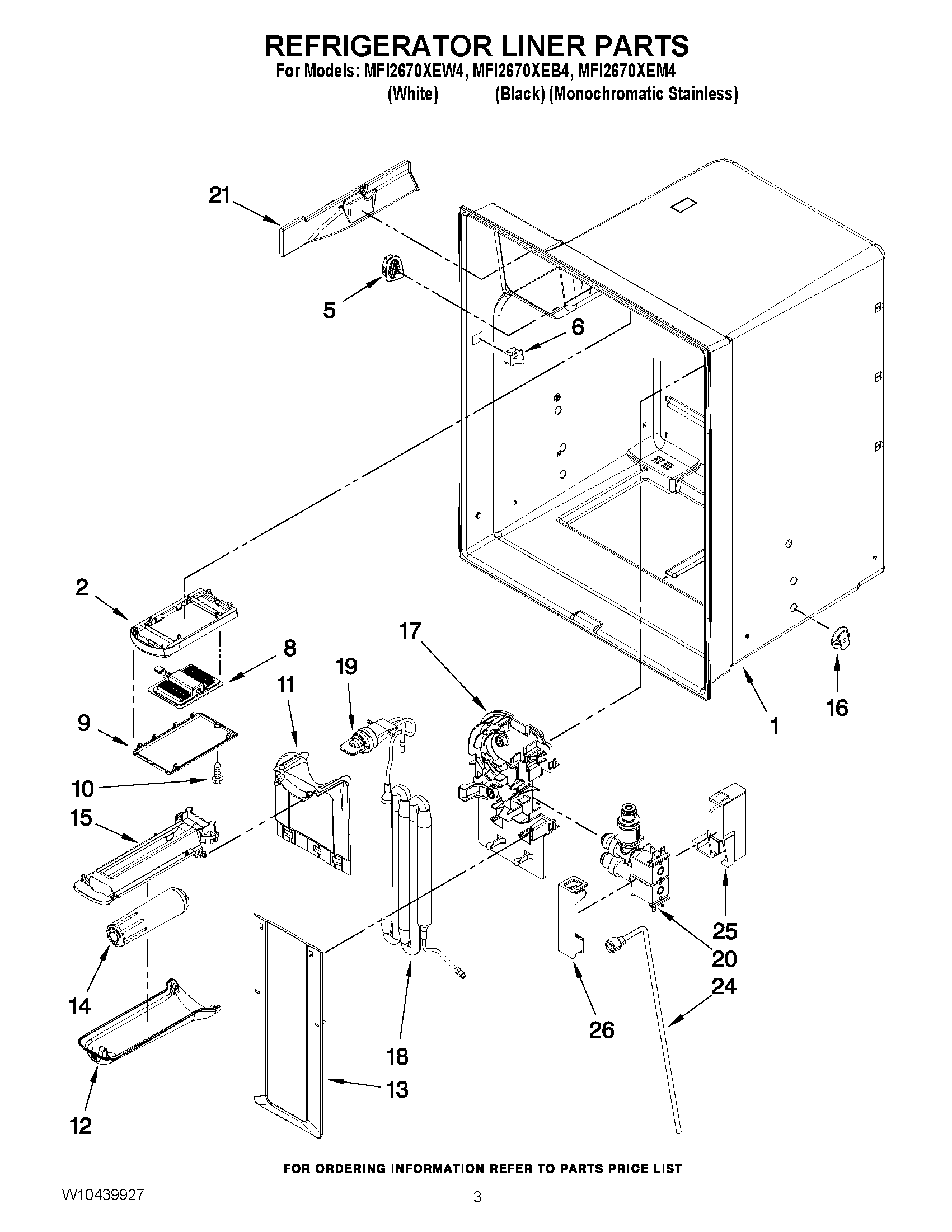

MFI2670XEB4 02 – REFRIGERATOR LINER PARTS

MFI2670XEB4 02 – REFRIGERATOR LINER PARTS

Written by

in

MFI2670XEB4 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2HOUSING-RC-LED
5MAY 13008201
6SWITCH, LIGHT
8MODULE, MAIN LED
9LENS, RC LED
10SCREW (STAINLESS)
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY UKF8001
15MAY 12955901
16MOUNT, CRISPER
17MAY W10365768
18MAY W10415891
19MAY 12664501SP
20MAY W10312696
21MAY W10309869
24MAY W10290356
25MAY W10118193
26MAY W10118194
