MFI2670XEB4 05 – ICEMAKER PARTS – Aparts

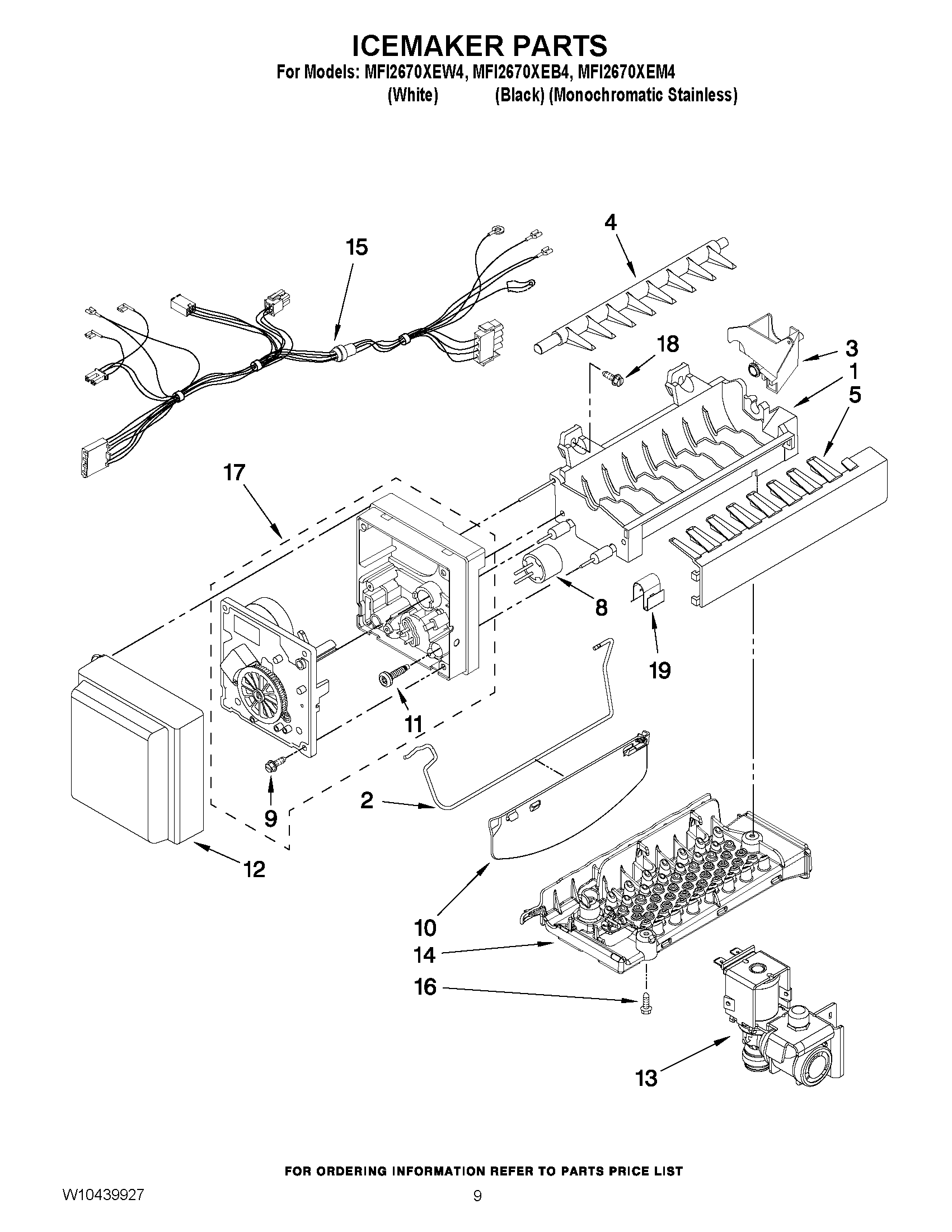

MFI2670XEB4 05 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 10244904SP
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
10	MAY W10121440
11	MAY 8533917
12	MAY W10388303
13	VALVE, SINGLE
14	IMPINGER ASSY.
15	MAY W10404016
16	SCREW (10)
17	ASSEMBLY, MODULE
18	Screw (3)
19	Clip
100	ASSEMBLY, ICEMAKER
