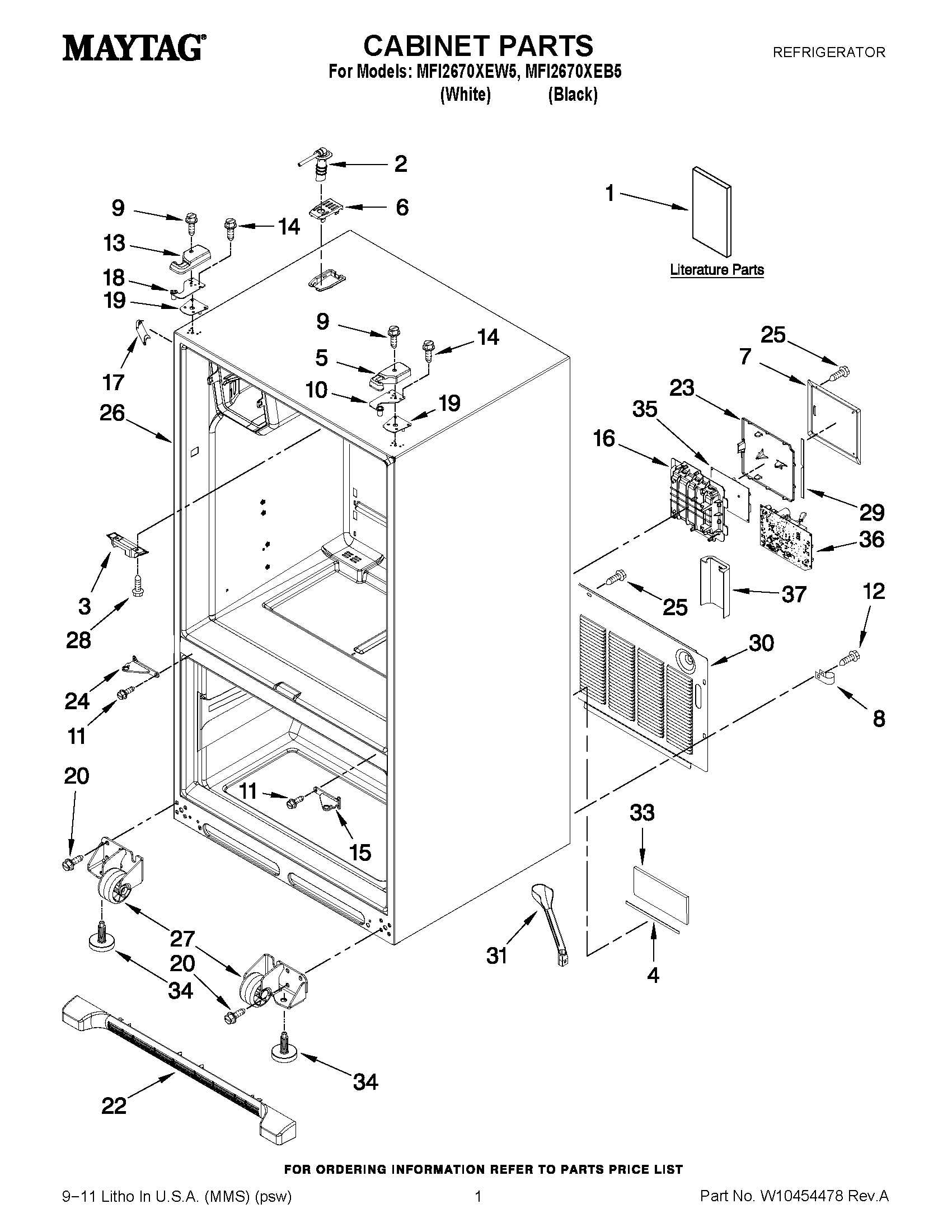

MFI2670XEB5 01 – CABINET PARTSadmin2025-04-26T09:05:26+00:00MFI2670XEB5 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10444667 |
| 1 | MAY W10314958 |
| 1 | MAY W10310961 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12962302W |
| 5 | MAY 12962302B |
| 6 | MAY 12981401B |
| 6 | MAY 12981401W |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10 | MAY 12963205ED |
| 11 | SCREW (6) |
| 12 | SCREW (10) |
| 13 | MAY 12962301B |
| 13 | MAY 12962301W |
| 14 | SCREW (6) |
| 15 | Hinge, Center (RT) (White) |
| 15 | HINGE, CENTER (BLACK, RIGHT ) |
| 16 | MAY W10285271 |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 18 | MAY 12963204ED |
| 19 | MAY 12999501 |
| 19 | MAY 12999502 |
| 20 | Screw (8) |
| 22 | MAY W10244559 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 23 | MAY W10296541 |
| 24 | Hinge, Center (LT) (White) |
| 24 | HINGE, CENTER (BLACK, LEFT) |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27 | ROLLER ASSY. (FRONT) (LEFT) |
| 27 | ROLLER ASSY. (FRONT) (RIGHT) |
| 28 | Screw (4) |
| 29 | GASKET-HV CNTRL-2 |
| 30 | MAY W10211854 |
| 31 | MAY W10210988 |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | CONTROL, POWER SUPPLY ELECTRONIC |
| 36 | MAY W10438707 |
| 37 | GUARD-WATER VALVE |
