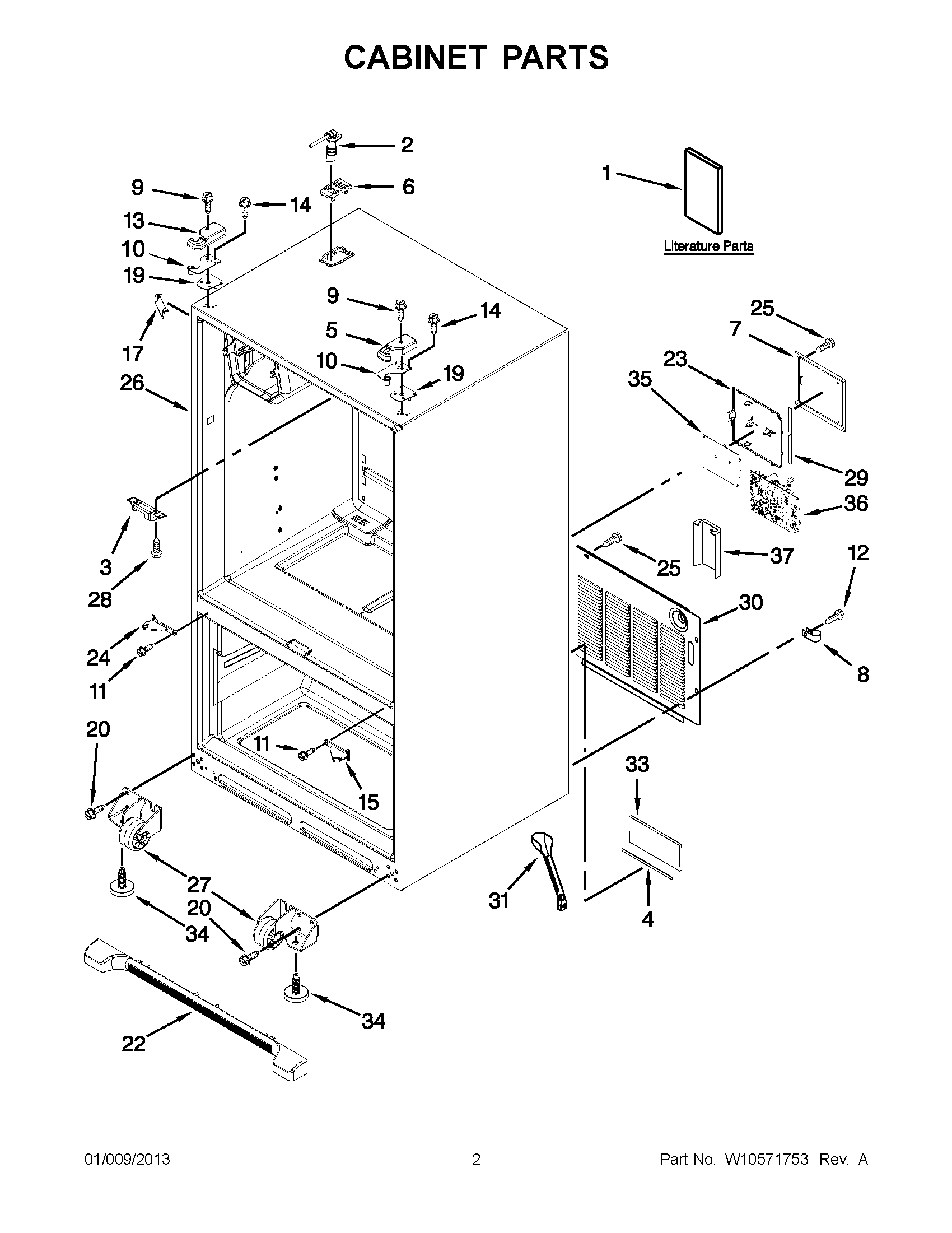

MFI2670XEB8 01 – CABINET PARTS

Products

Position	Product
1	MAY W10475393
1	MAY W10310961
1	MAY W10314958
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302W
5	MAY 12962302B
6	MAY 12981401W
6	MAY 12981401B
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
13	MAY 12962301W
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (BLACK, RIGHT )
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
19	MAY 12999501
19	MAY 12999502
20	Screw (8)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
23	MAY W10296541
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSEMBLY (RIGHT HAND)
27	ROLLER ASSEMBLY (LEFT HAND)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211854
31	TUBE-DRAIN
33	Insulation, Sound
34	Brake, Foot
35	CONTROL, POWER SUPPLY ELECTRONIC
36	MAY W10438707
37	GUARD-WATER VALVE
