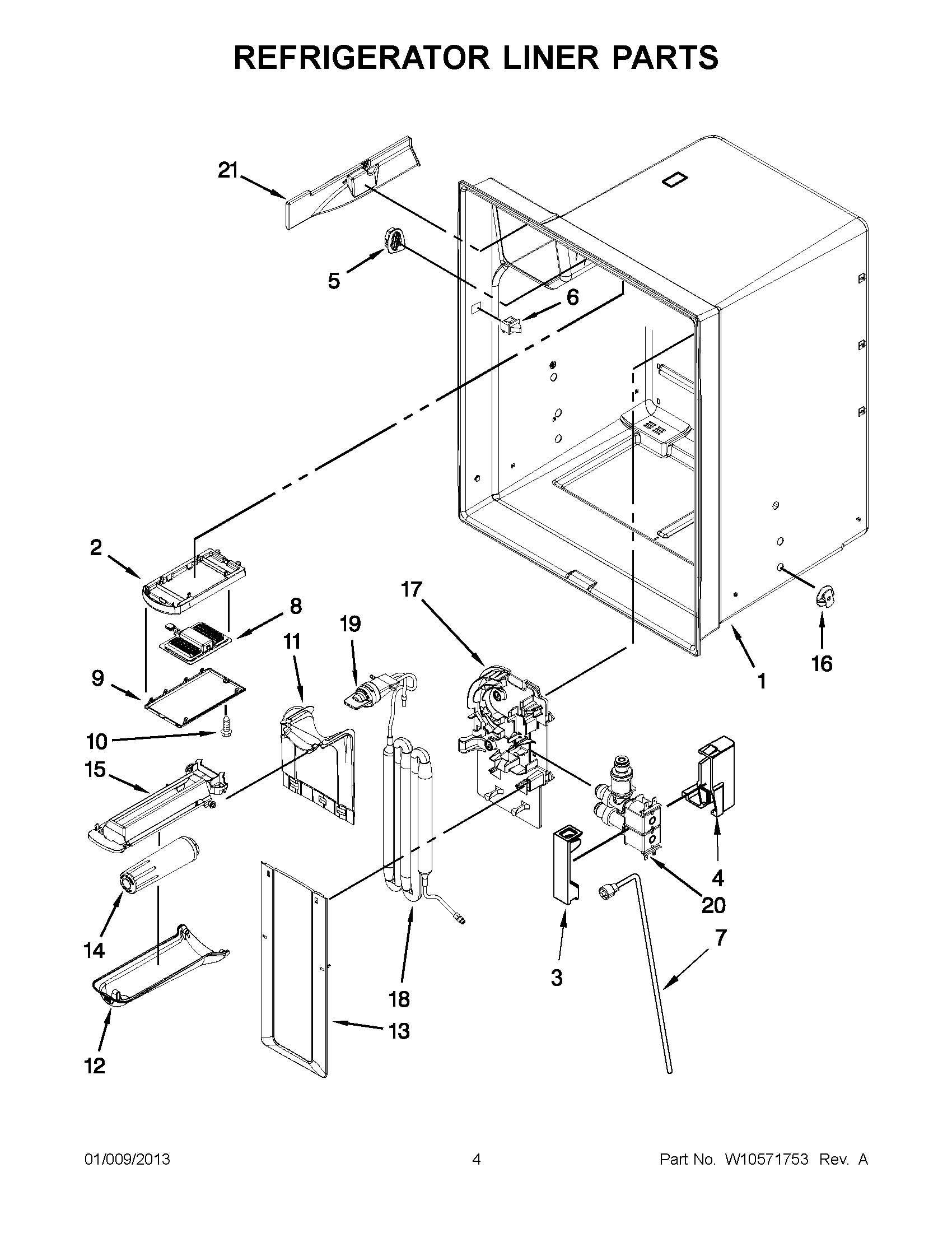

MFI2670XEB8 02 – REFRIGERATOR LINER PARTS

MFI2670XEB8 02 – REFRIGERATOR LINER PARTS

Written by

in

MFI2670XEB8 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2HOUSING-RC-LED
3MAY W10118194
4MAY W10118193
5MAY W10555981
6SWITCH, LIGHT
7MAY W10444033
8MODULE, MAIN LED
9LENS, RC LED
10SCREW (STAINLESS)
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W10336197
15MAY 12955901
16MOUNT, CRISPER
17BRACKET, WATER TANK AND VALVE
18MAY W10418477
19MAY 12664501SP
20MAY W10312696
21MAY W10309869
