MFI2670XEB8 05 – ICEMAKER PARTS – Aparts

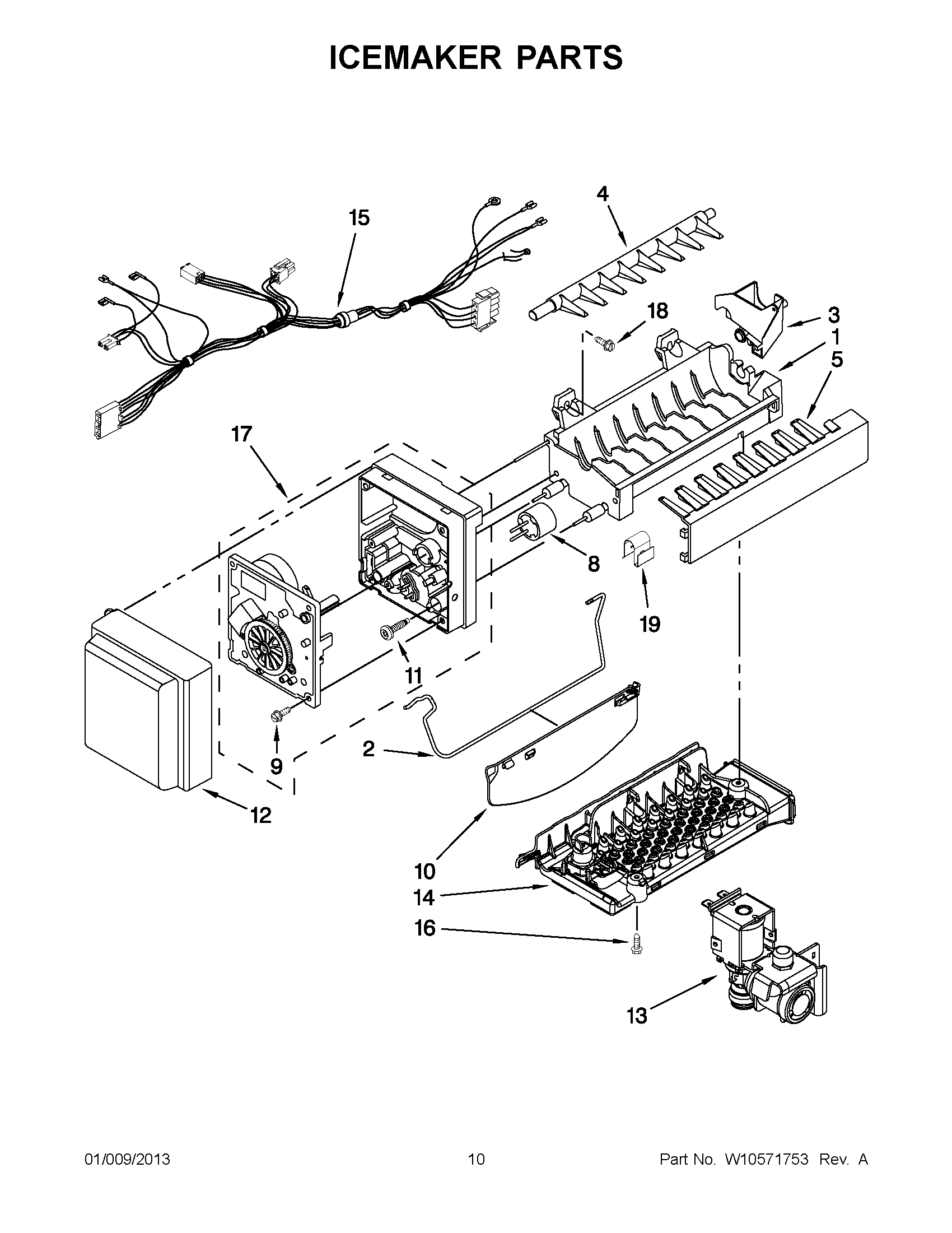

MFI2670XEB8 05 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
9	Screw (3)
10	MAY W10351019
11	MAY 8533917
12	COVER, FRONT
13	MAY W10498990
14	IMPINGER ASSY.
15	MAY W10404016
16	SCREW (10)
17	ASSEMBLY, MODULE
18	MAY W10068250
19	Clip
100	ASSEMBLY, ICEMAKER
