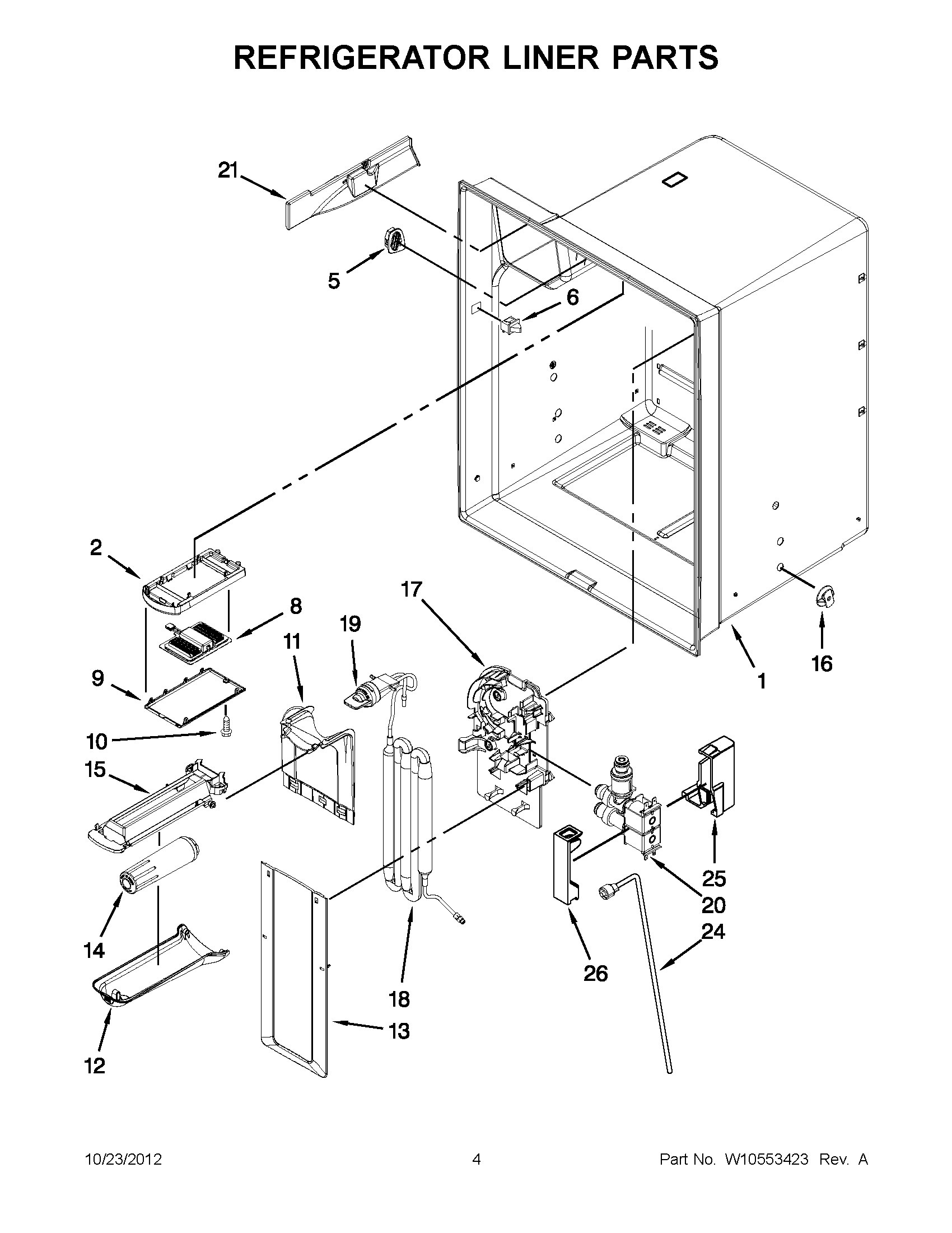

MFI2670XEM10 02 – REFRIGERATOR LINER PARTS

MFI2670XEM10 02 – REFRIGERATOR LINER PARTS

Written by

in

MFI2670XEM10 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIMAY W10296251
NILINER (NOT A SERVICEABLE PART)
2HOUSING-RC-LED
5MAY W10396902
6SWITCH, LIGHT
8MODULE, MAIN LED
9LENS, RC LED
10SCREW (STAINLESS)
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY UKF8001
15MAY 12955901
16MOUNT, CRISPER
17BRACKET, WATER TANK AND VALVE
18MAY W10418477
19MAY 12664501SP
20MAY W10312696
21MAY W10309869
24MAY W10444033
25MAY W10118193
26MAY W10118194
