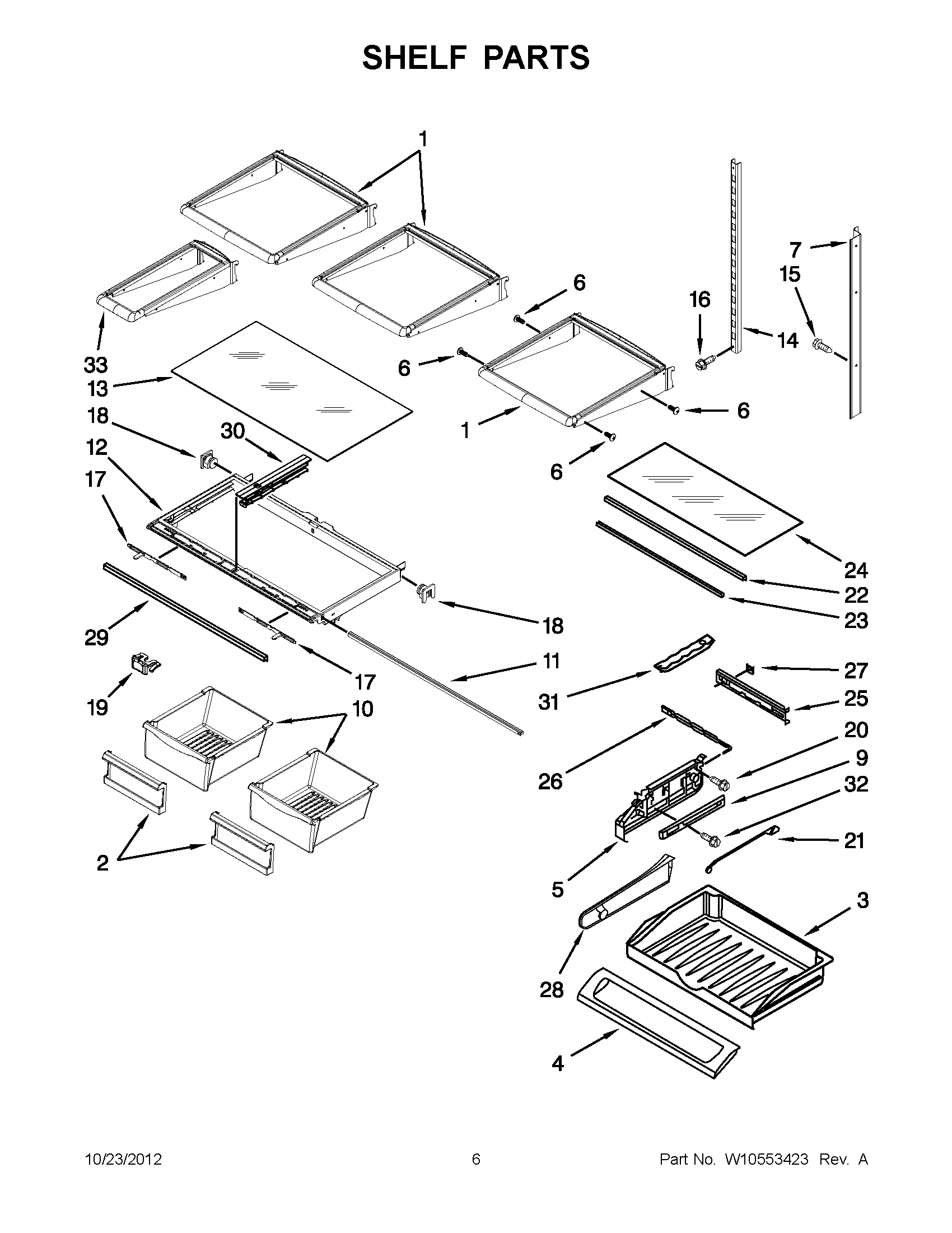

MFI2670XEM10 03 – SHELF PARTS

MFI2670XEM10 03 – SHELF PARTS

Written by

in

MFI2670XEM10 03 – SHELF PARTS

Products

Position	Product
1	SHELF, GLIDE
2	HANDLE, CRISPER PAN (2)
3	MAY 12731302
4	MAY 12656815
5	ENDCAP, PANTRY (LEFT)
5	ENDCAP, PANTRY (RIGHT)
6	Screw (4)
7	LADDER, SIDE RH
7	LADDER, SIDE LH
9	MAY W10235370
10	MAY 12804601SP
11	Brace, Crisper (2)
12	MAY W10329866
13	MAY 12204824
14	MAY W10273464
15	MAY 12990513
16	MAY 12990515
17	MAY 12530805SP
18	MAY 13062602
19	KNOB, TEMP CONTROL
20	MAY 12990504
21	ROD, TEMPERATURE CONTROL
22	MAY 12655902SP
23	MAY 12227305WH
24	GLASS, PANTRY
25	MAY 12656202
26	SLIDE, TEMPERATURE
27	MAY 12656901
28	DIVIDER, PANTRY DRAWER
29	MAY W10231345
30	RAIL, CENTER
31	TRACK, PANTRY
32	SCREW (2)
33	SHELF-MINI
