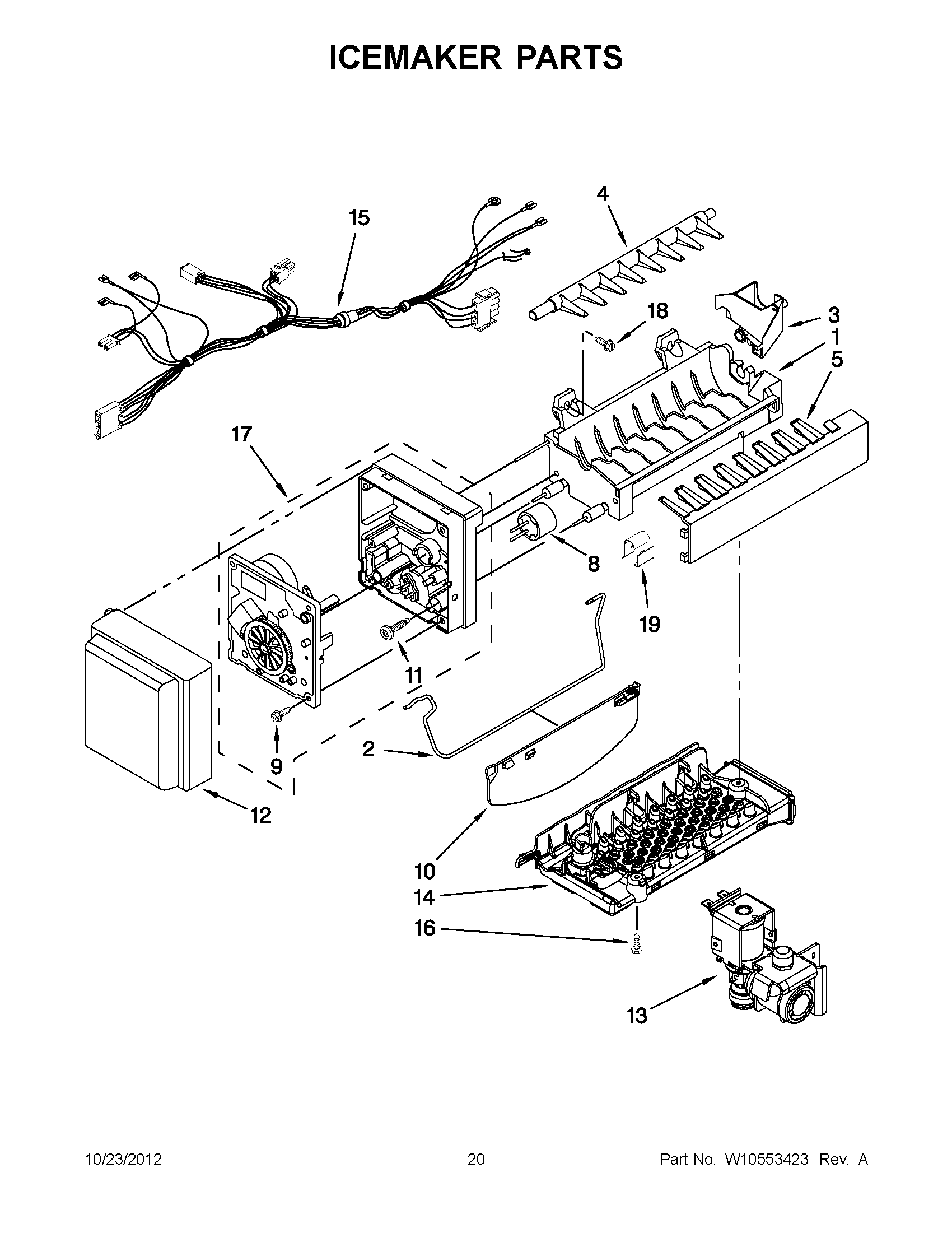

MFI2670XEM10 10 – ICEMAKER PARTS

MFI2670XEM10 10 – ICEMAKER PARTS

Written by

in

MFI2670XEM10 10 – ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, MOLD AND HEATER
2MAY W10378254
3MAY W10377998
4MAY W10318914
5ICE STRIPPER
8MAY W10290336
10MAY W10351019
11MAY 8533917
12COVER, FRONT
13VALVE, SINGLE
14IMPINGER ASSY.
15MAY W10404016
16SCREW (10)
17ASSEMBLY, MODULE
18Screw (3)
19Clip
100ASSEMBLY, ICEMAKER
