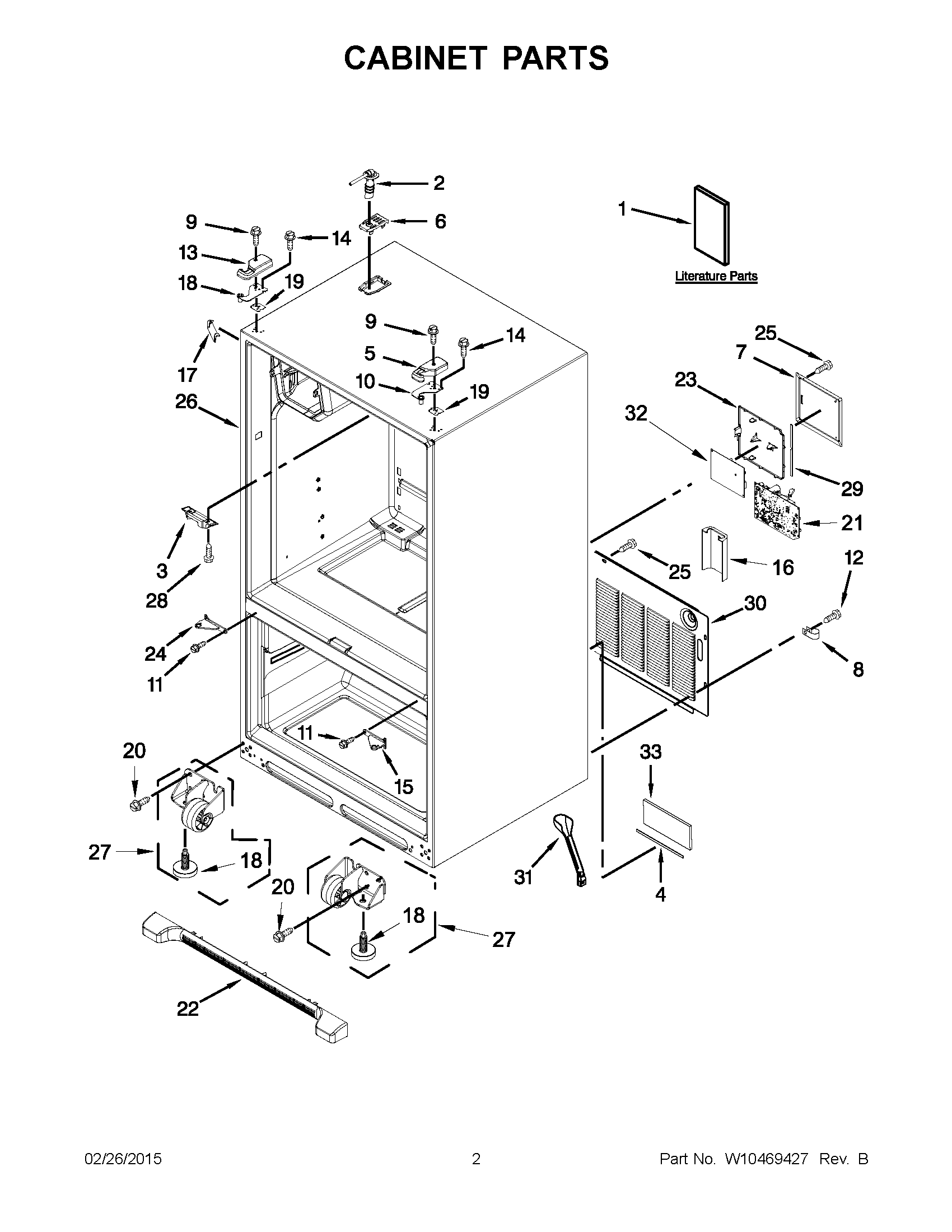

MFI2670XEM7 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10310961
1	MAY W10444667
1A	MAY W10314958
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	SCREW (6)
12	SCREW (10)
13	COVER, TOP HINGE (LEFT) (GREY)
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	GUARD-WATER VALVE
17	COVER, CORNER (GREY)
18	Brake, Foot
19	MAY 12999501
19A	MAY 12999502
20	Screw (8)
21	MAY W10438707
22	GRILLE, TOE (GREY)
23	MAY W10296541
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	ROLLER ASSY. (FRONT) (LEFT)
27A	ROLLER ASSY. (FRONT) (RIGHT)
28	Screw (4)
29	GASKET-HV CNTRL-2
30	MAY W10211854
31	MAY W10210988
32	CONTROL, POWER SUPPLY ELECTRONIC
33	Insulation, Sound
