MFI2670XEM7 11 – ICEMAKER PARTS – Aparts

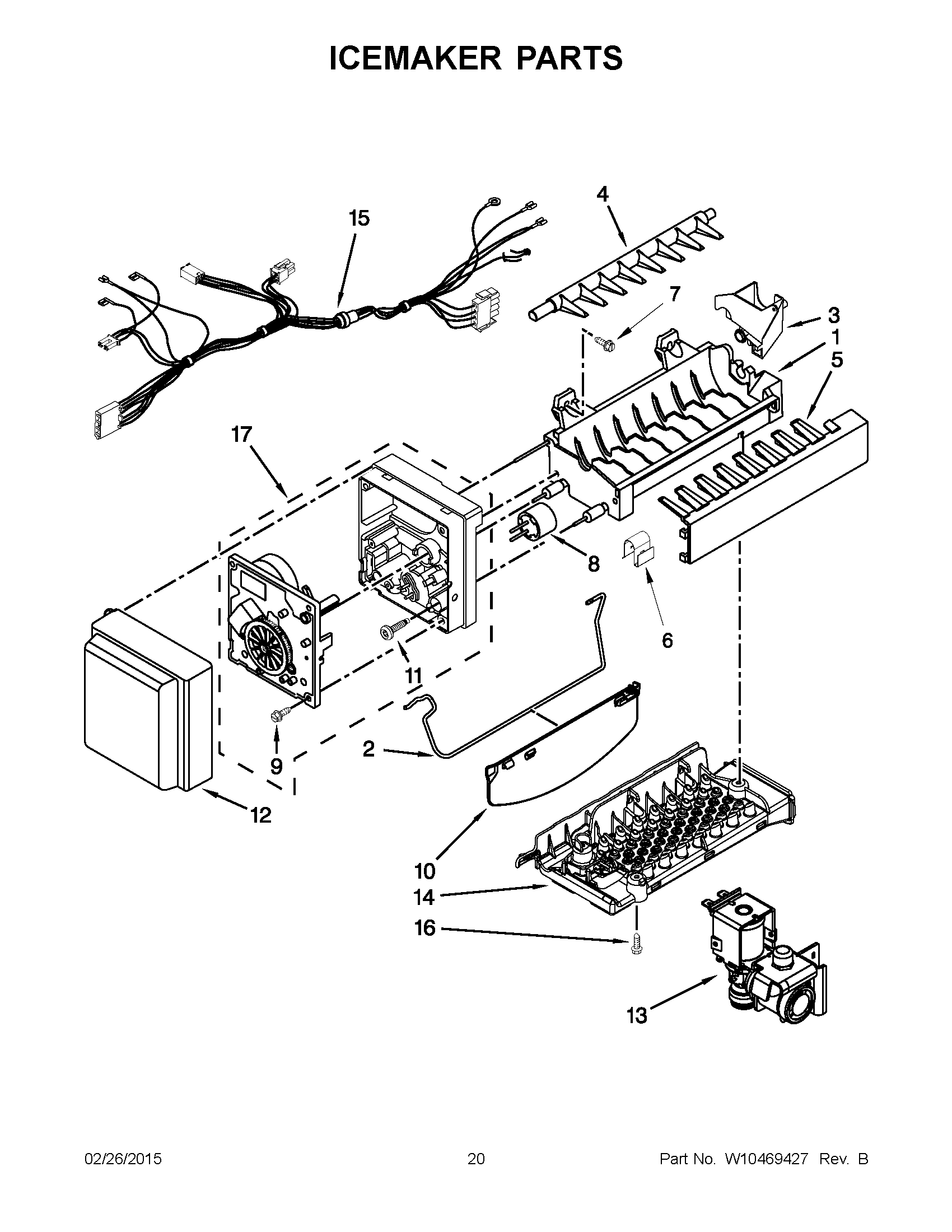

MFI2670XEM7 11 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	ICE STRIPPER
6	Clip
8	MAY W10290336
9	Screw (3)
10	MAY W10351019
11	MAY 8533917
12	MAY W10388303
13	VALVE, SINGLE
14	IMPINGER ASSY.
15	MAY W10404016
16	SCREW (10)
17	ASSEMBLY, MODULE
100	ASSEMBLY, ICEMAKER
