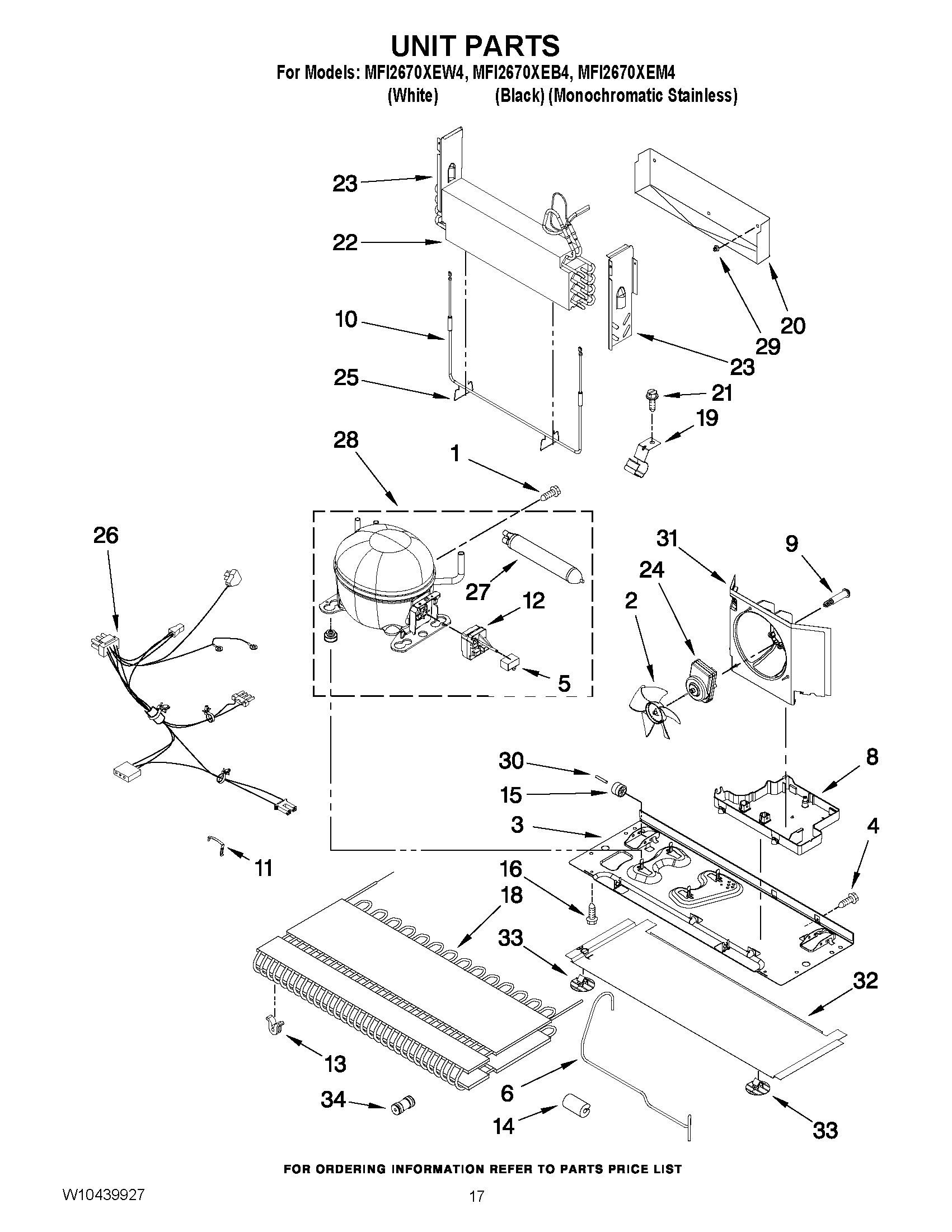

MFI2670XEW4 09 – UNIT PARTSadmin2025-04-26T09:06:00+00:00MFI2670XEW4 09 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10210985 |
| 4 | SCREW (10) |
| 5 | Capacitator (Production) |
| 6 | MAY W10242974 |
| 8 | MAY W10296785 |
| 9 | MAY W10216919 |
| 10 | MAY 12729123 |
| 11 | Clip, Retaining |
| 12 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 13 | GROMMET, COND (4) |
| 14 | GROMMET, CONDENSER |
| 15 | Roller (2) |
| 16 | MAY 12992101 |
| 18 | MAY W10346415 |
| 19 | MAY W10281329 |
| 20 | MAY W10292803 |
| 21 | SCREW |
| 22 | MAY W10313899 |
| 23 | Dam (Left Side) |
| 23 | Dam (Right Side) |
| 24 | MAY W10239053 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY W10402006 |
| 27 | Drier |
| 28 | MAY W10391109 |
| 29 | MAY 10623002 |
| 30 | Axle, Roller (2) |
| 31 | SHROUD |
| 32 | EXTENSION, BASEPAN |
| 33 | MAY W10206339 |
| 34 | CONNECTOR, WATER |
