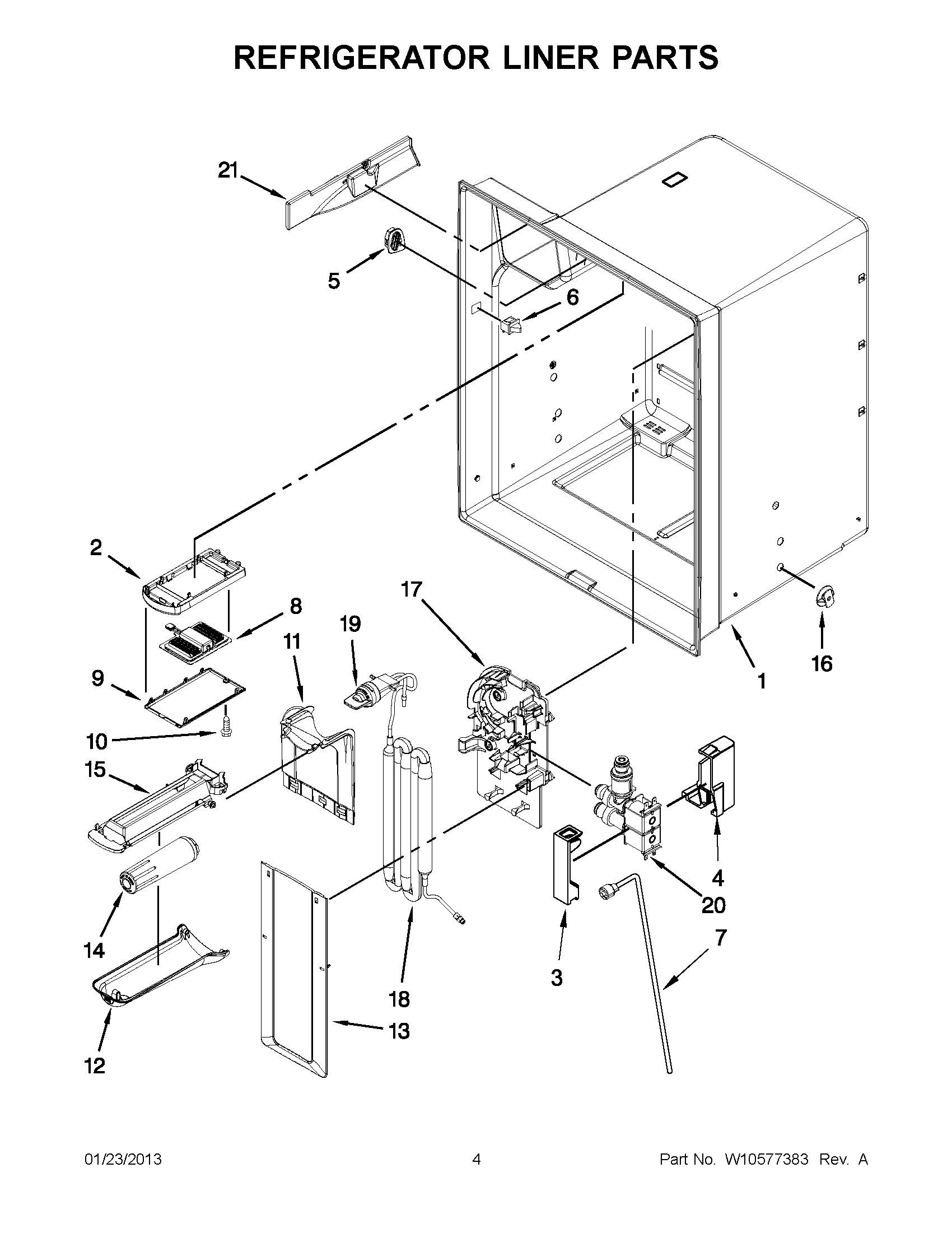

MFI2670XEW9 02 – REFRIGERATOR LINER PARTS

MFI2670XEW9 02 – REFRIGERATOR LINER PARTS

Written by

in

MFI2670XEW9 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	HOUSING-RC-LED
3	MAY W10118194
4	MAY W10118193
5	MAY W10555981
6	SWITCH, LIGHT
7	MAY W10444033
8	MODULE, MAIN LED
9	LENS, RC LED
10	SCREW (STAINLESS)
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W10336197
15	MAY 12955901
16	MOUNT, CRISPER
17	BRACKET, WATER TANK AND VALVE
18	MAY W10418477
19	MAY 12664501SP
20	MAY W10312696
21	MAY W10309869
