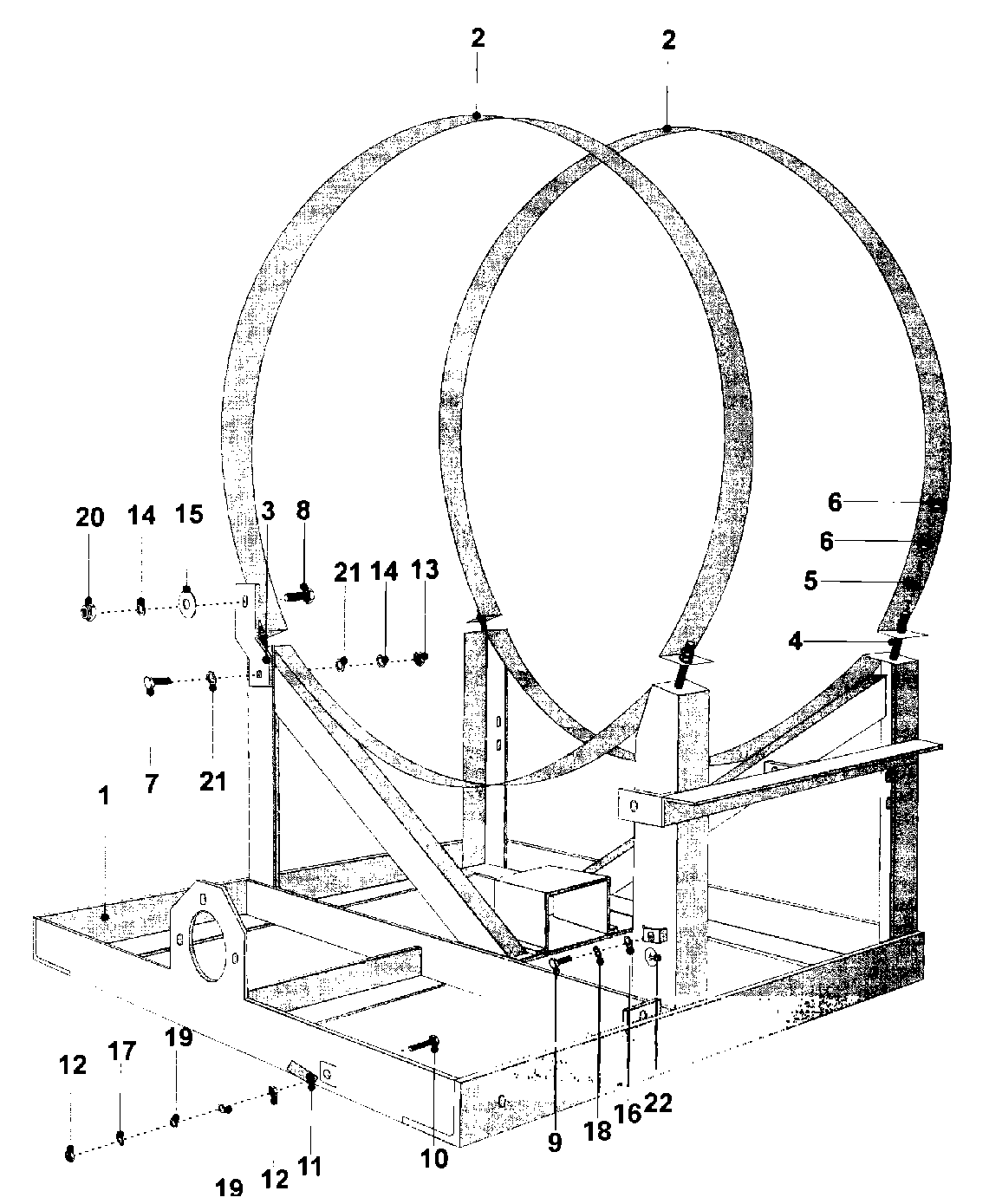

MFR25MCATS 22 – BASE FRAME (SERIES 11)
Products
| Position | Product |
|---|---|
| 004 | MAY 23003285 |
| 005 | MAY 23002654 |
| 006 | MAY 23001661 |
| 007 | MAY 23001304 |
| 008 | MAY 23002847 |
| 010 | MAY 23002806 |
| 011 | GROUNDING HARDWARE |
| 012 | MAY 23001515 |
| 014 | WASHER M8 |
| 017 | MAY 23001734 |
| 019 | MAY 23001313 |
| 020 | MAY 23002435 |
| 021 | MAY 23001203 |
| 022 | DOWEL PIN FOR HANDLE |
| 023 | SCREW (M6 X 20) LU |
