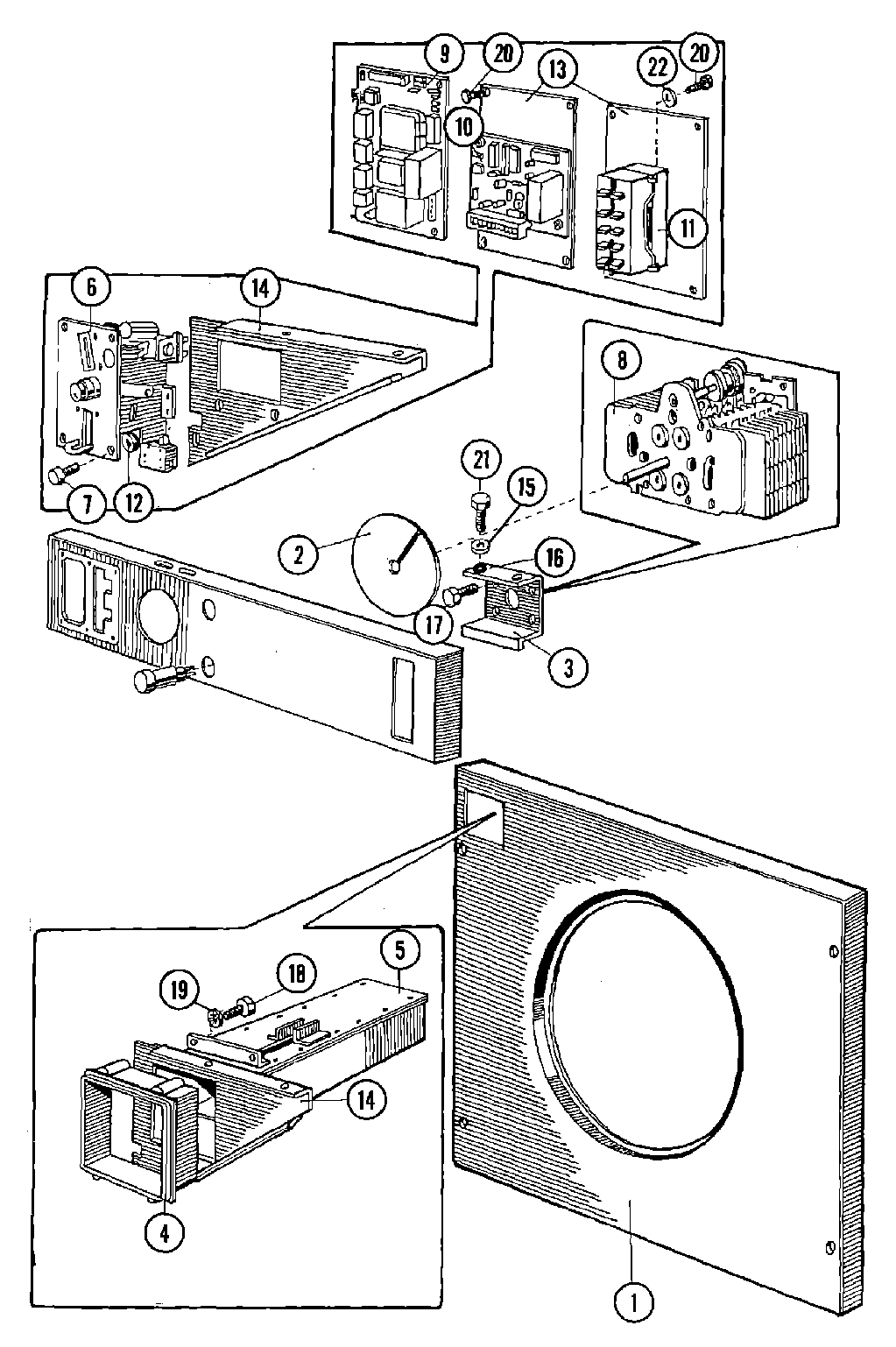

MFR35MCATS 02 – TIMER & COIN ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY 23001320 |
| 002 | MAY 23001060 |
| 003 | MAY 23001061 |
| 004 | MAY 23001062 |
| 005 | MAY 23001349 |
| 006 | MAY 23003445 |
| 006 | MAY 23001063 |
| 007 | MAY 23001064 |
| 008 | MAY 23001065 |
| 008 | MAY 23002204 |
| 009 | MAY 23003987 |
| 009 | MAY 23001066 |
| 009 | MAY 23001693 |
| 010 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 011 | MAY 23001068 |
| 012 | MAY 23001053 |
| 013 | DOWEL PIN FOR HANDLE |
| 014 | MAY 23001502 |
| 015 | MAY 23001028 |
| 016 | MAY 23001027 |
| 017 | MAY 23001069 |
| 018 | MAY 23001070 |
| 019 | SPRING, LOCKWASHER (M4) |
| 020 | MAY 23001052 |
| 021 | MAY 23001026 |
| 022 | MAY 23001054 |
| 023 | MAY 23002195 |
| 023 | MAY 23002333 |
| 023 | MAY 23002334 |
| 023 | MAY 23001038 |
