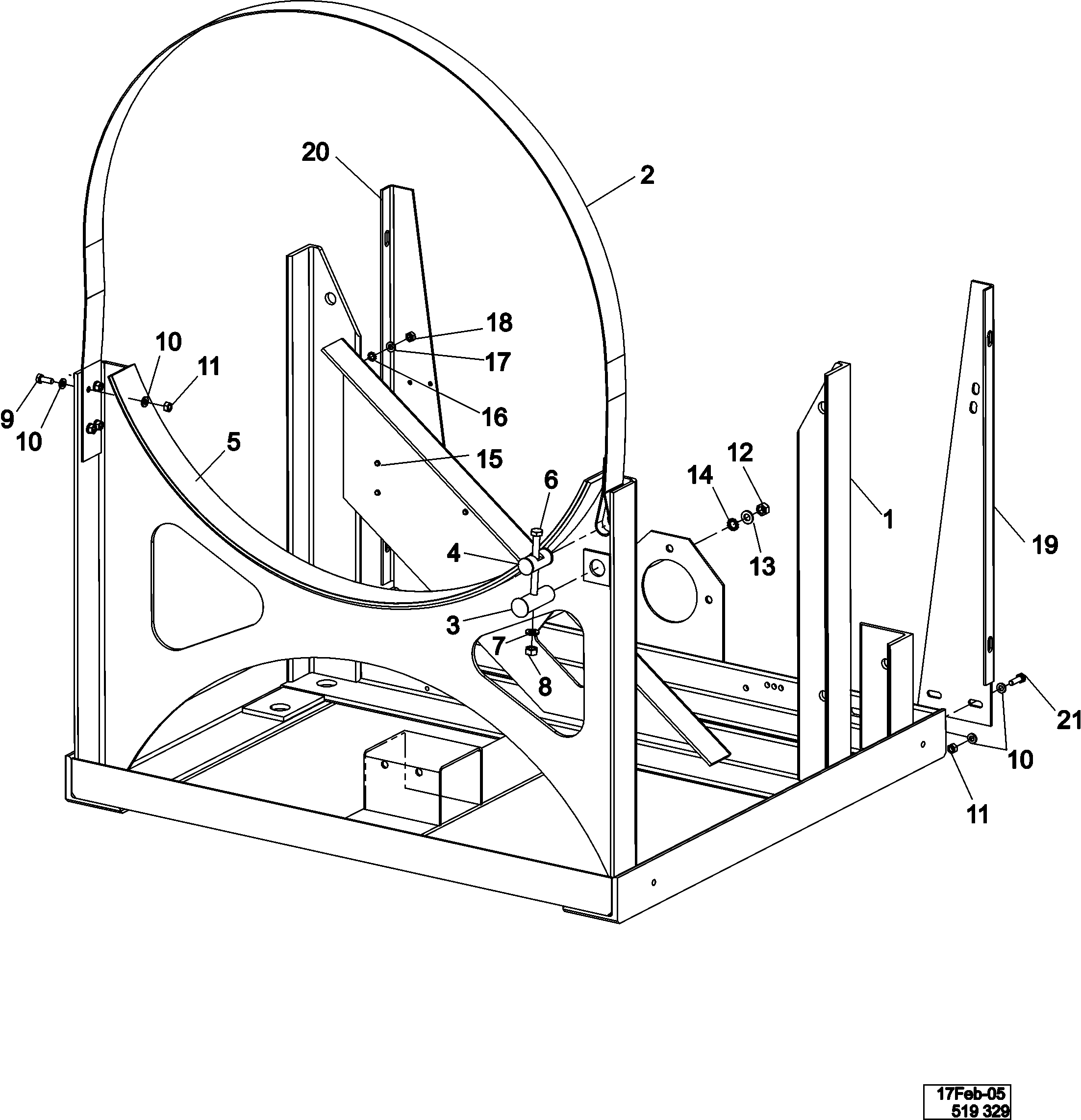

MFR40PNCTS 01 – BASE FRAME
Products
| Position | Product |
|---|---|
| 001 | MAY 23004042 |
| 002 | MAY 23004168 |
| 003 | MAY 23004169 |
| 004 | MAY 23004170 |
| 005 | MAY 23004267 |
| 007 | MAY 23003769 |
| 008 | DOWEL PIN FOR HANDLE |
| 009 | MAY 23002461 |
| 010 | MAY 23003778 |
| 011 | MAY 23003773 |
| 012 | MAY 23002487 |
| 013 | MAY 23001608 |
| 014 | MAY 23004172 |
| 015 | MAY 23004093 |
| 016 | MAY 23004175 |
| 017 | MAY 23002424 |
| 018 | MAY 23002280 |
| 019 | MAY 23004173 |
| 020 | MAY 23004174 |
| 021 | SCREW (M6 X 20) LU |
