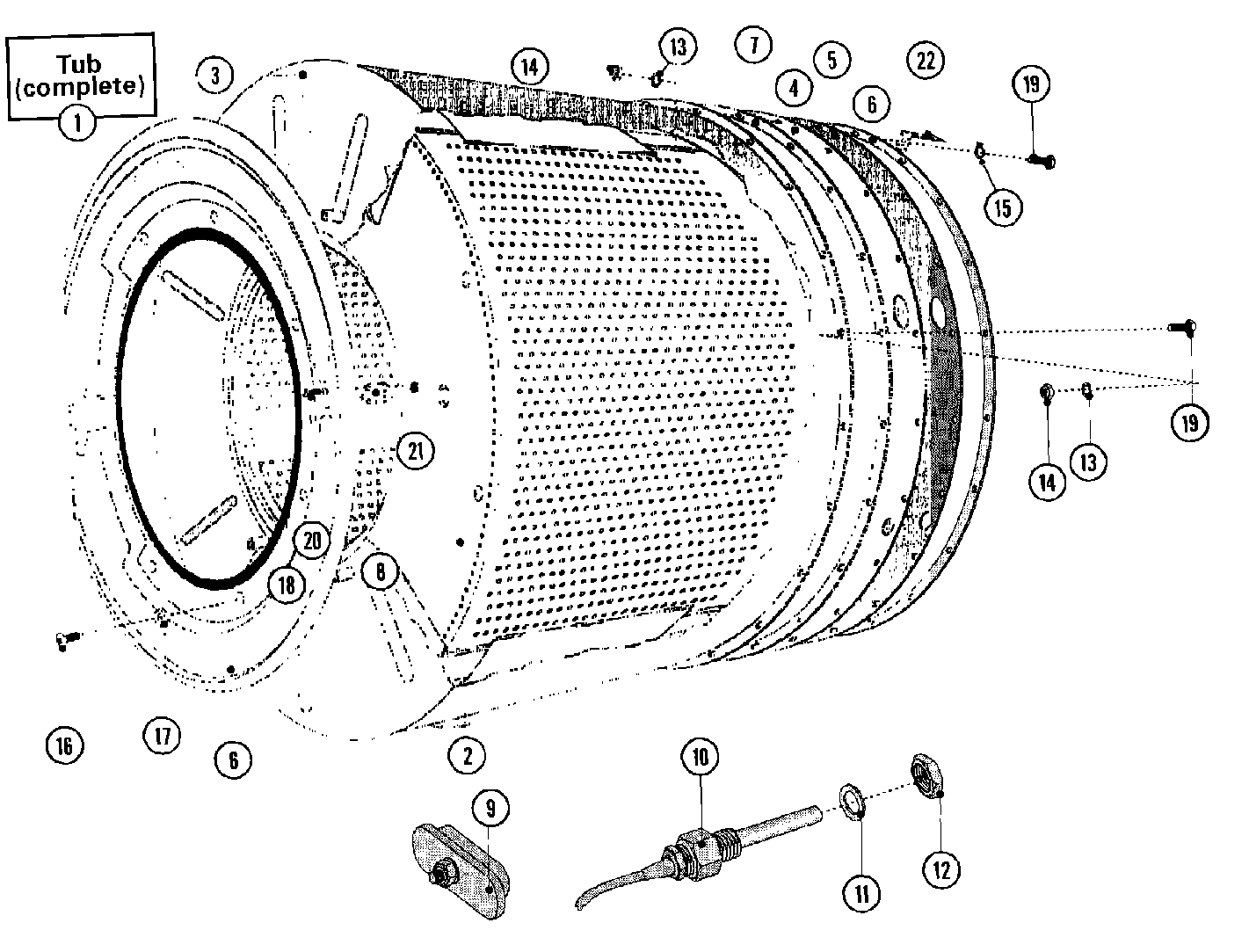

MFR50MCAVS 24 – BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
Products
| Position | Product |
|---|---|
| 002 | MAY 23003818 |
| 003 | MAY 23002971 |
| 004 | DOWEL PIN FOR HANDLE |
| 004 | MAY 23001194 |
| 005 | MAY 23003981 |
| 005 | MAY 23001196 |
| 006 | MAY 23001198 |
| 007 | MAY 23001199 |
| 008 | MAY 23001200 |
| 009 | MAY 23001594 |
| 010 | MAY 23001592 |
| 011 | MAY 23002179 |
| 012 | MAY 23002936 |
| 013 | WASHER M8 |
| 014 | MAY 23001607 |
| 015 | MAY 23001203 |
| 016 | MAY 23002617 |
| 017 | MAY 23001204 |
| 018 | MAY 23001088 |
| 019 | MAY 23002847 |
| 020 | MAY 23001089 |
| 021 | MAY 23001055 |
| 022 | MAY 23001206 |
