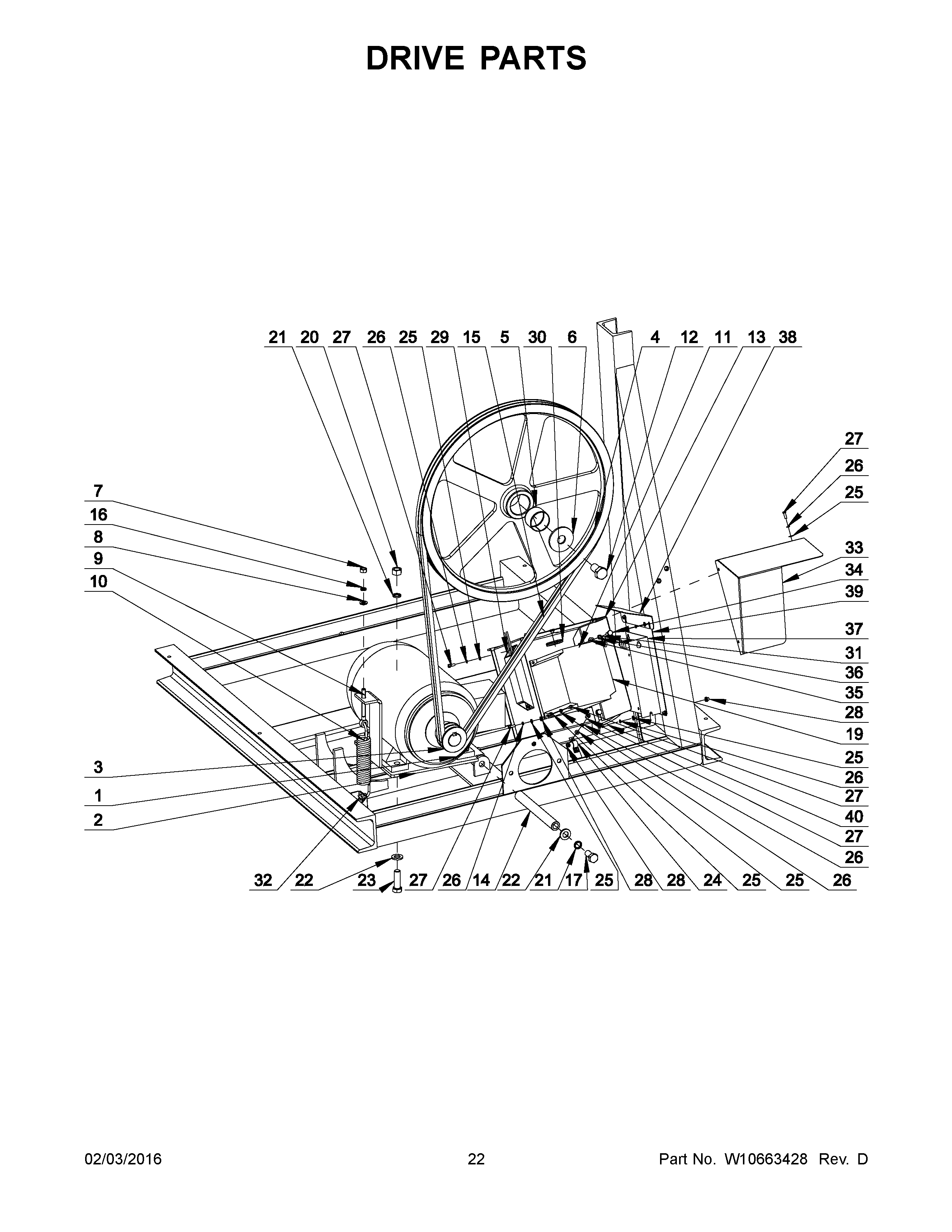

MFR60PDCTS 12 – DRIVE PARTS
Written by
in
MFR60PDCTS 12 – DRIVE PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10667453
1
MOTOR 240V 3PHASE
2
MAY 23004250
3
MAY 23004251
4
MAY 23004252
5
MAY 23004253
6
MAY 23004254
7
MAY 23003766
8
MAY 23003769
9
MAY 23004255
10
MAY 23004256
11
MAY 23004092
12
MAY 23002278
13
MAY 23004260
14
MAY 23004257
15
MAY 23001287
16
WASHER M8
17
MAY 23001418
19
INVERTER E520S-2.2KW, AFTER SERIES 22 ONLY
19A
MAY W10667458
19B
MAY W10427108
20
MAY 23003676
21
MAY 23002658
22
MAY 23002657
23
MAY 23003079
24
MAY 23004021
25
MAY 23002438
26
MAY 23002400
27
MAY 23001609
28
MAY 23004093
29
MAY 23004024
29A
MAY W10667487
30
MAY 23001742
31
MAY 23002834
32
MAY 23004258
33
MAY W10667488
34
MAY 23002461
35
MAY 23003778
36
MAY 23002440
37
MAY W10667489
38
MAY W10667490
39
MAY W10667491
40
MAY 23001361
←
