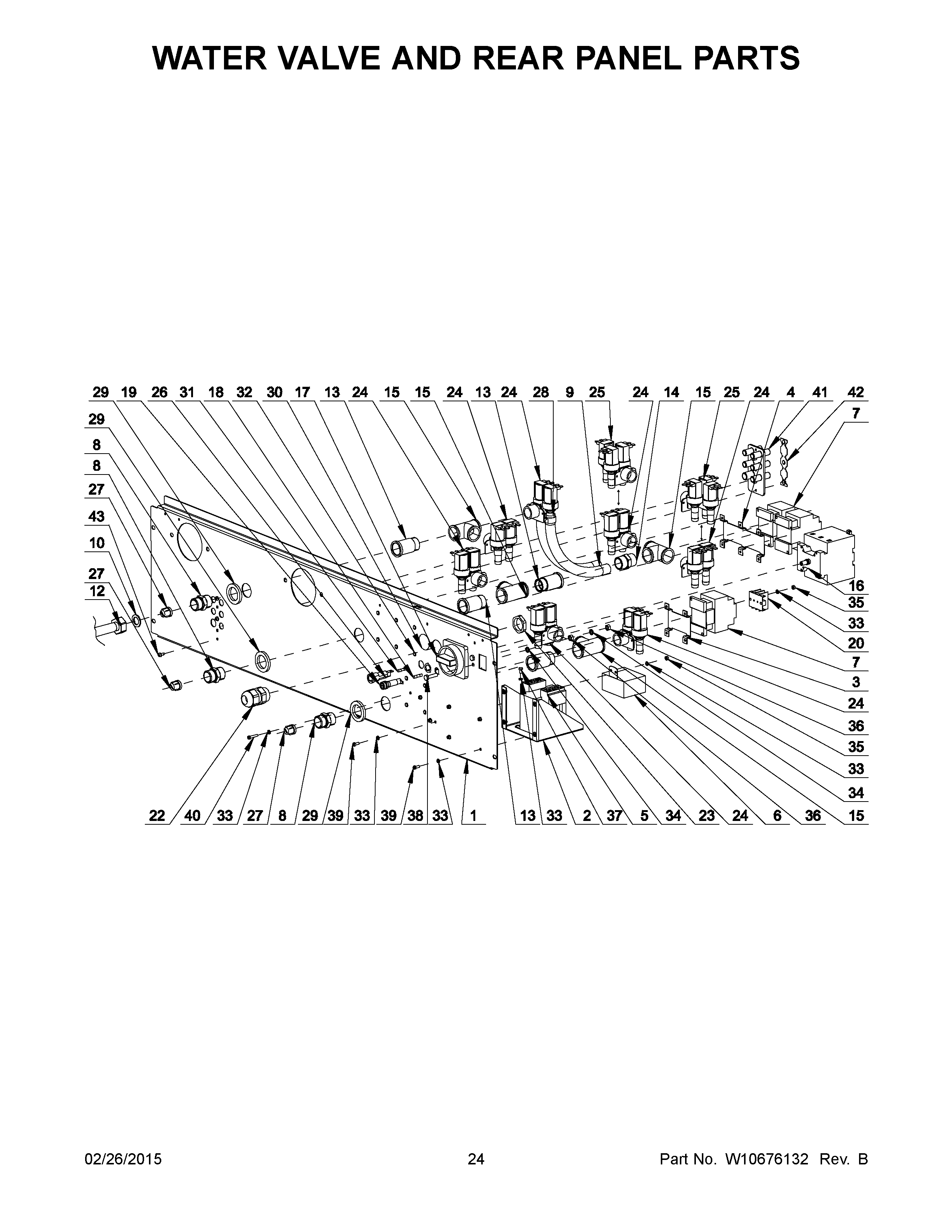

MFR80PDCTS 13 – WATER VALVE AND REAR PANEL PARTS
Written by
in
MFR80PDCTS 13 – WATER VALVE AND REAR PANEL PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10684138
1
MAY W10684102
2
MAY 23004316
3
MAY 23004161
4
MAY W10667697
5
MAY W10286352
6
MAY 23004406
7
MAY 23003750
8
MAY W10684103
9
MAY 23001507
10
MAY 23002921
12
MAY 23001486
13
MAY 23001484
14
MAY 23001482
15
MAY 23001485
16
MAY 23003503
16A
MAY 23003502
16B
MAY 23003505
17
KNOB
18
MAY 23002919
19
MAY 23001462
20
MAY 23002959
22
MAY 23002211
23
NUT, CABLE SWIVEL
24
MAY 23001455
25
MAY 23001533
26
MAY 23002210
27
MAY 23002922
28
MAY 23001506
29
MAY 23001483
30
MAY 23002243
31
WP22001555 Whirlpool Fuse Assembly
32
MAY 23002467
33
MAY 23002950
34
MAY 23002425
35
MAY 23003666
36
MAY 23001312
37
MAY 23001682
38
MAY 23002806
39
MAY 23001361
40
MAY 23002807
41
MAY W10223169
42
MAY 14227179
43
MAY 23003810
←
