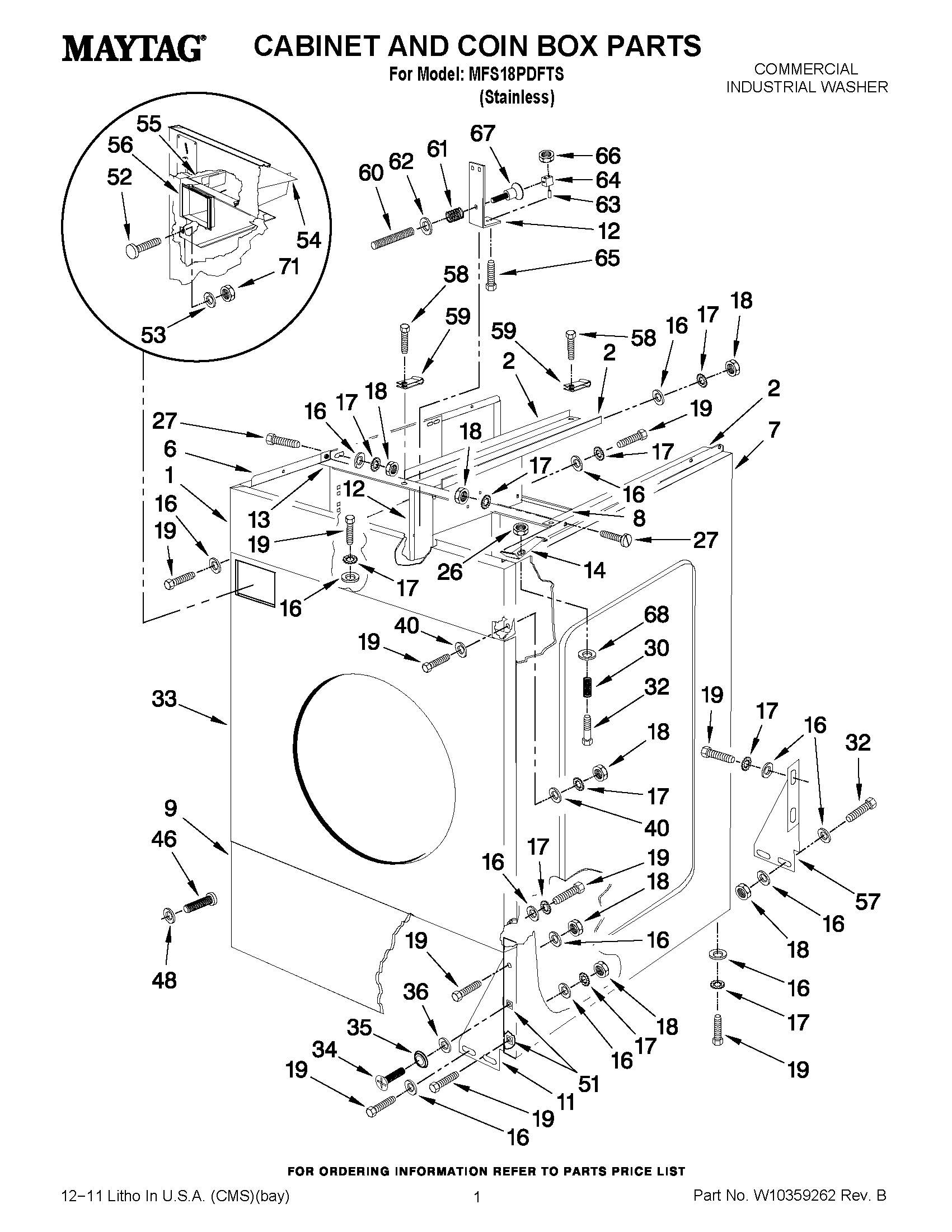

MFS18PDFTS 01 – CABINET AND COIN BOX PARTS
Written by
in
MFS18PDFTS 01 – CABINET AND COIN BOX PARTS
Products
Position
Product
1
MAY 23004302
2
MAY W10357106
6
MAY W10357107
7
MAY W10357108
8
MAY W10357109
9
MAY 23001436
11
MAY W10357110
12
PLATE, BALANCE
13
REINFORCEMENT, CABINET
14
MAY 23001442
16
MAY 23001309
18
MAY 23001312
19
MAY 23002461
26
MAY 23001310
27
MAY 23003301
30
MAY 23001445
32
MAY 23002463
33
MAY W10357112
34
MAY 23003478
35
MAY 23002457
36
MAY 23002458
40
MAY 23002756
48
MAY 23002438
51
MAY 23002455
52
MAY 23004095
54
MAY 23003776
55
MAY 23003974
56
MAY 23003775
57
MAY W10357114
57
MAY W10357115
58
MAY 23004480
59
SPEEDNUT
60
SPRING
61
SPRING
62
MAY 23002504
63
SPACER
64
MICRO SWITCH
65
MAY 23002906
66
MAY 23002958
67
SPRING HOLDER TILTSWITCH
68
MAY 23001027
71
MAY 23001014
←
