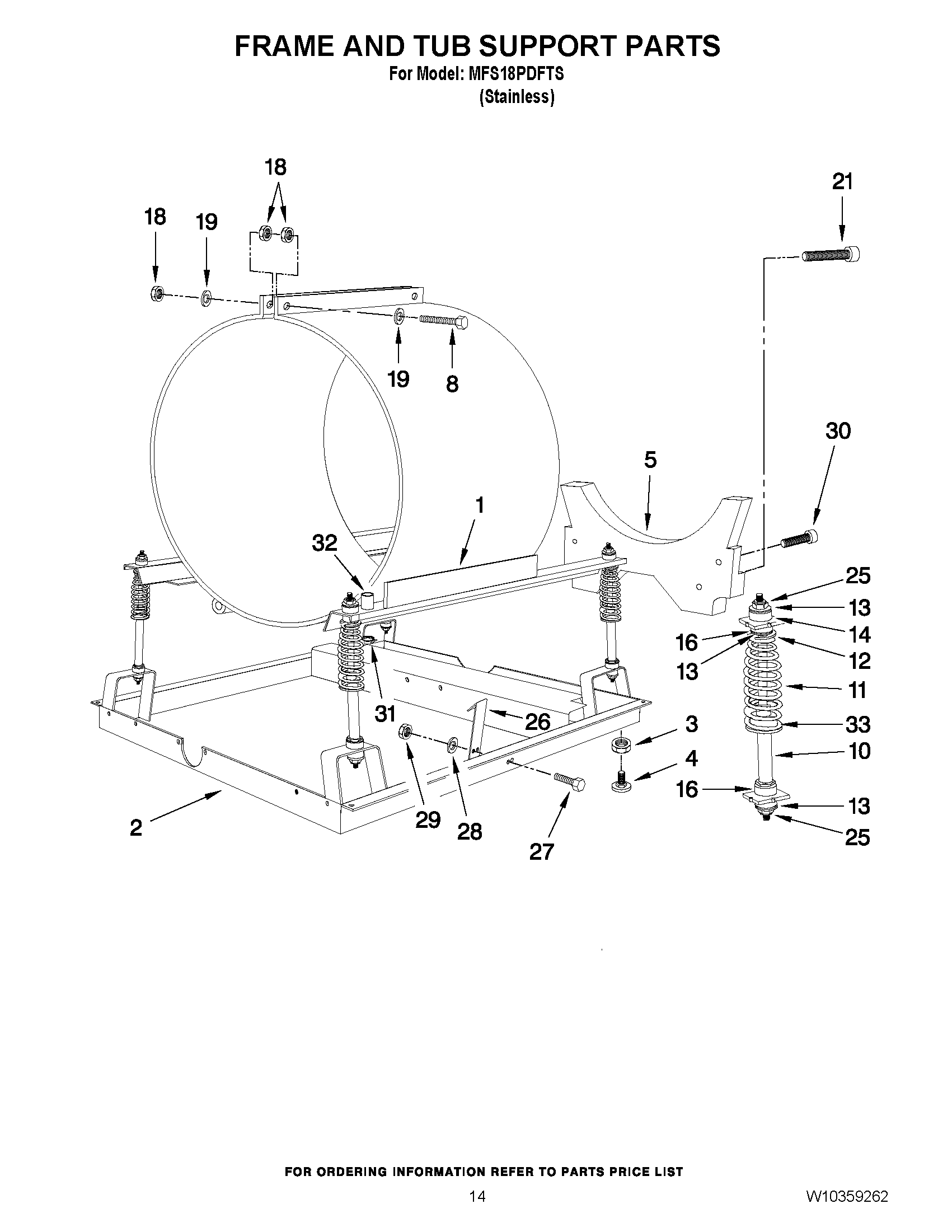

MFS18PDFTS 11 – FRAME AND TUB SUPPORT PARTS

MFS18PDFTS 11 – FRAME AND TUB SUPPORT PARTS

Written by

in

MFS18PDFTS 11 – FRAME AND TUB SUPPORT PARTS

Products

PositionProduct
1MAY W10357099
2MAY W10357100
4LEG
5MAY W10360062
8MAY 23002984
10LEG, SPRING
11SPRING (YELLOW)
12HOLDER, SPRING (UPR) LU
13WASHER
14RUBBER (BLK-UPR)
16RUBBER (BLK-LWR) LU
18MAY 23001661
19MAY 23003788
21MAY W10357101
25MAY 23002356
26MAY W10357102
27MAY 23002461
28MAY 23002756
29MAY 23001312
30MAY W10361724
31MAY 23002212
32MAY W10357103
33HOLDER, SPRING (LWR)
