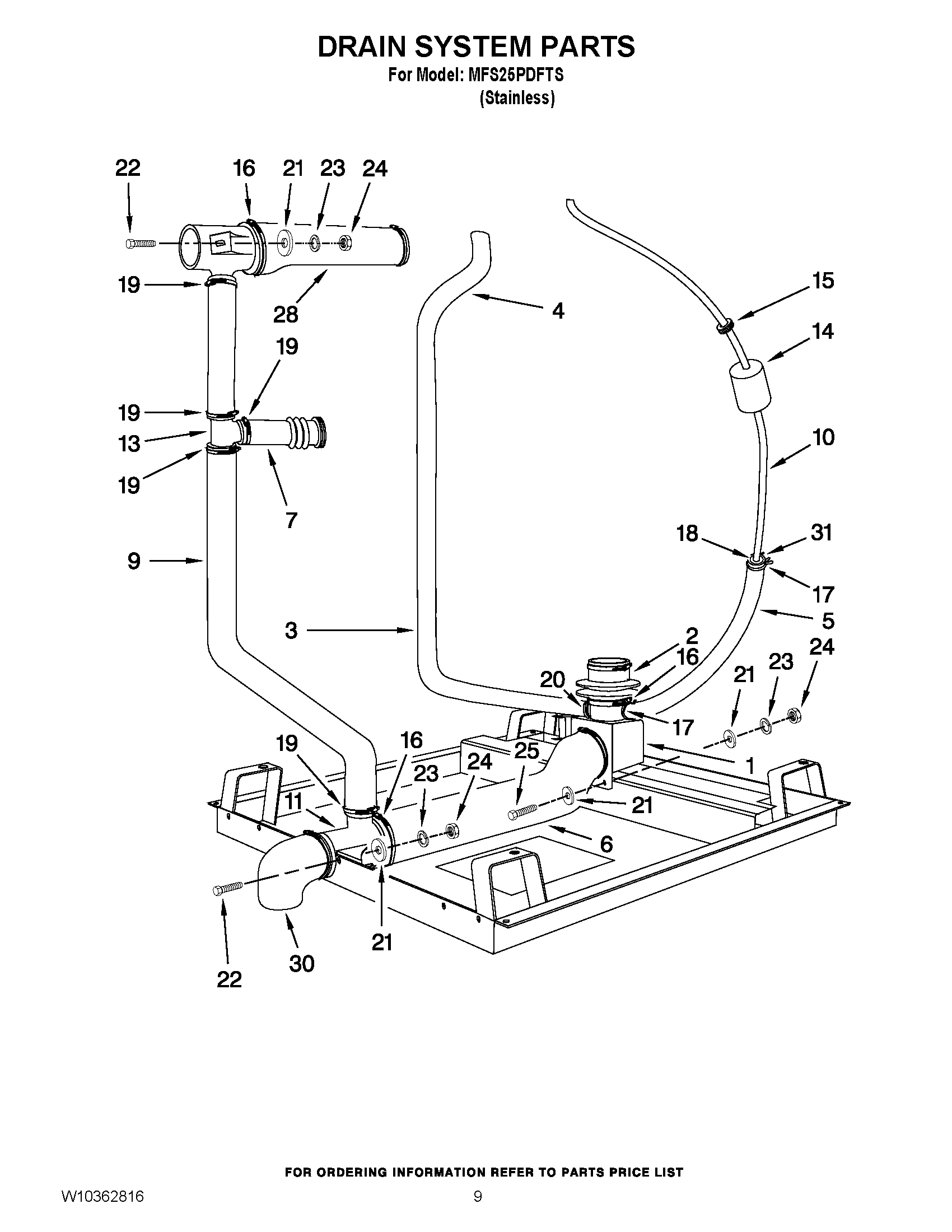

MFS25PDFTS 08 – DRAIN SYSTEM PARTS

MFS25PDFTS 08 – DRAIN SYSTEM PARTS

Written by

in

MFS25PDFTS 08 – DRAIN SYSTEM PARTS

Products

PositionProduct
1MAY W10357127
1MAY 23001244
1MAY W10126968
2MAY 23001245
3MAY W10357129
4HOSE, RUBBER LOWER
5MAY 23001246
6MAY 23001249
7MAY 23001250
9MAY 23001251
10MAY 23001252
11DRAIN TEE
13MAY 23001255
14FOAM RUBBER AQUASTATE
15MAY 23001138
16HOSE CLAMP
17MAY 23001259
18MAY 23001260
19MAY 23001750
20HOSE CLAMP
21MAY 23002437
22MAY 23001264
23WASHER M8
24MAY 23003766
25MAY 23002908
28MAY 23004241
30MAY 23002015
31HOSE CLAMP
