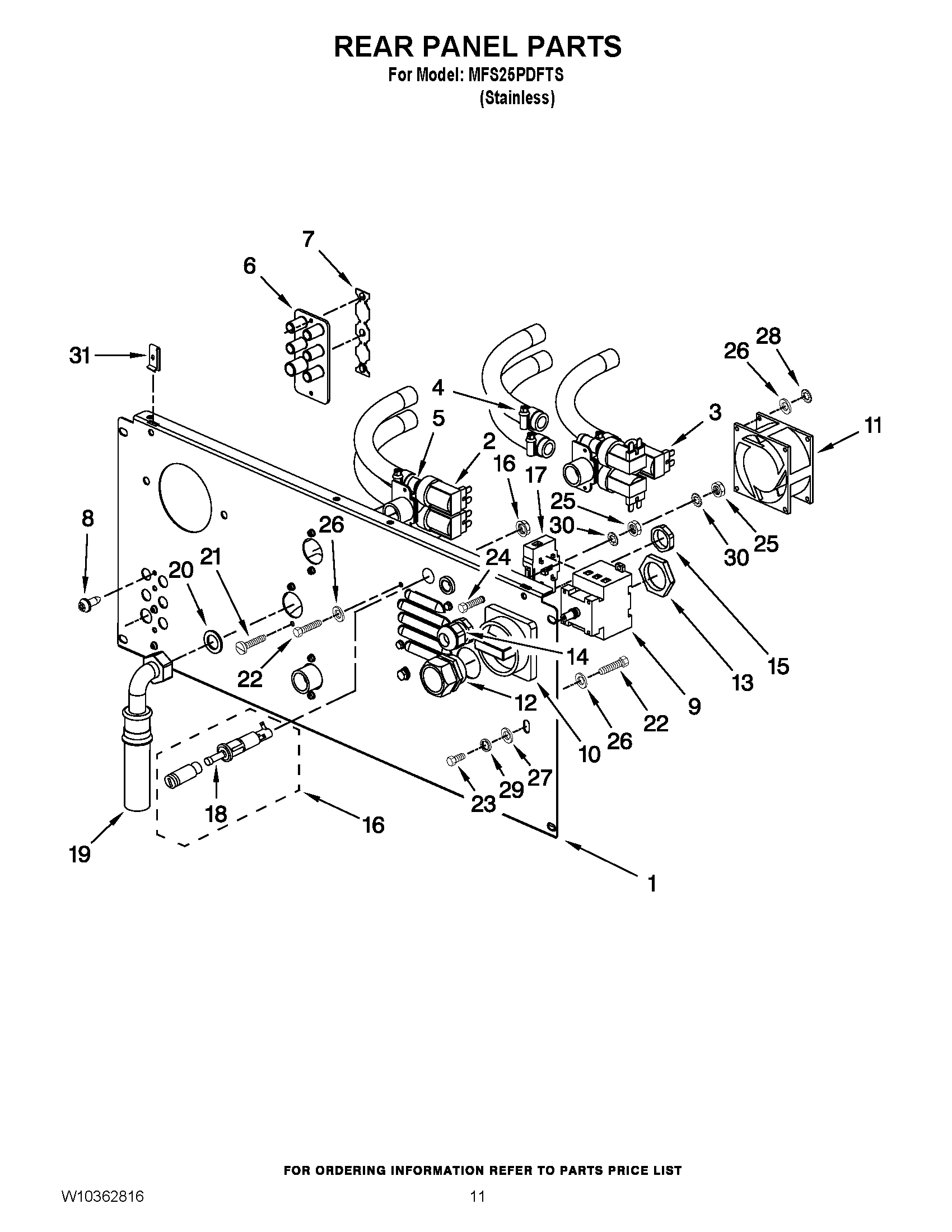

MFS25PDFTS 09 – REAR PANEL PARTS

MFS25PDFTS 09 – REAR PANEL PARTS

Written by

in

MFS25PDFTS 09 – REAR PANEL PARTS

Products

Position	Product
NI	MAY W10357135
NI	MAY 23001509
NI	MAY 23001469
NI	MAY 23001465
NI	MAY 23001470
NI	MAY W10357133
NI	MAY 23003328
1	PANEL, REAR 25LB
2	MAY 23001455
3	MAY 23001533
4	HOSE CLAMP
5	MAY 23001507
6	MAY W10223169
7	MAY 14227179
8	MAY 23003810
9	SWITCH, MAIN (25A)
10	KNOB
11	MAY 23002165
12	BUSHING
13	WARTEL NUT
14	MAY 23002196
15	MAY 23002197
16	MAY 23002210
17	MAY 23003504
18	MAY 23002919
19	MAY 23001523
19	MAY 23003496
20	MAY 23002921
21	MAY 23002721
22	MAY 23004095
23	MAY 23002461
24	MAY 23002806
25	MAY 23001312
26	MAY 23002438
27	MAY 23002756
28	MAY 23002400
29	MAY 23002440
30	MAY 23001734
31	SPEEDNUT
