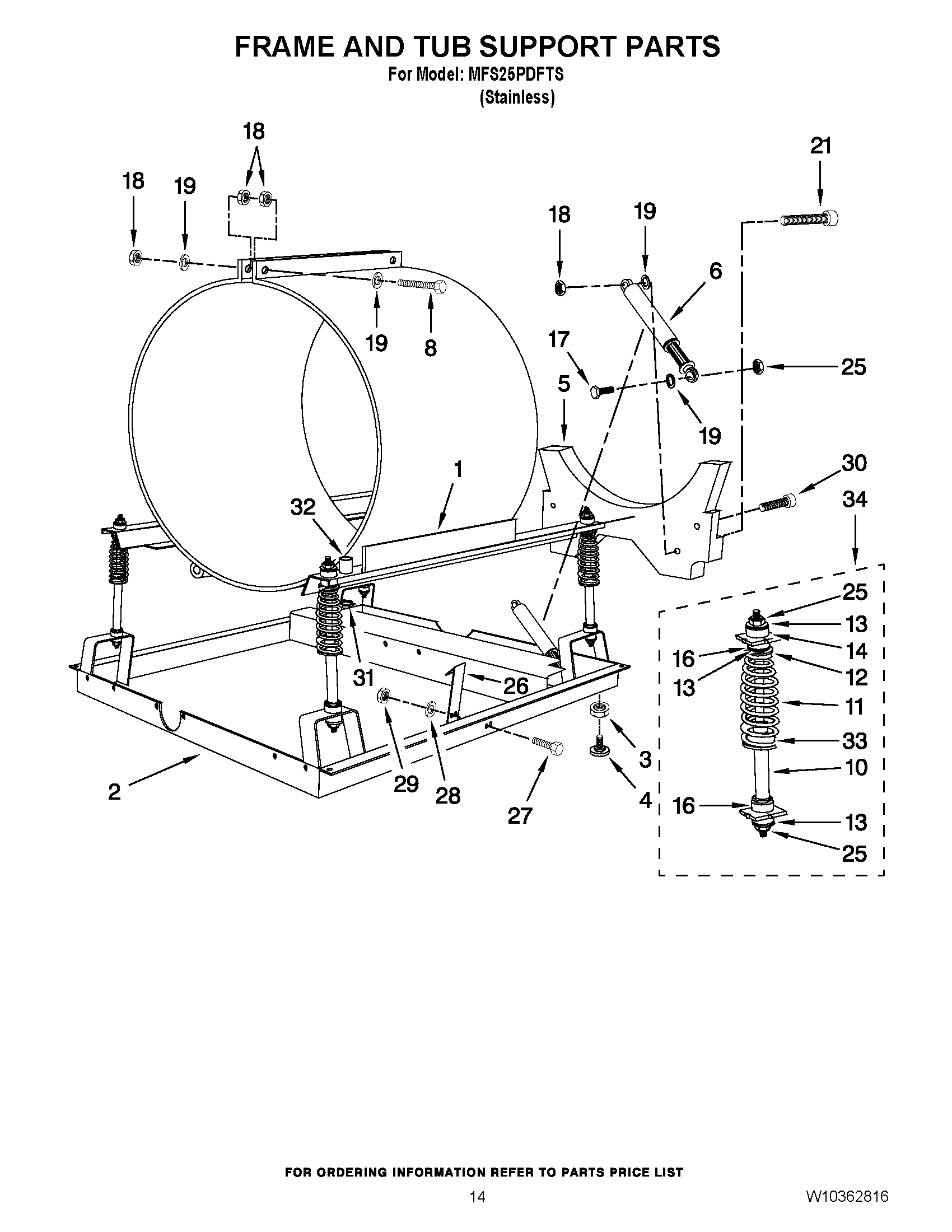

MFS25PDFTS 11 – FRAME AND TUB SUPPORT PARTS

Products

PositionProduct
1DRUM-MOTOR SUPPORT 25No.
2FRAME 25No.
4LEG
5MAY 23004464
6DAMPER (RD 12-2)
8MAY 23002984
10LEG, SPRING
11SPRING (RED)
12HOLDER, SPRING (UPR) LU
13WASHER
14RUBBER (BLK-UPR)
16RUBBER (BLK-LWR) LU
17MAY 23003285
18MAY 23001661
19MAY 23003788
21MAY 23004465
25MAY 23002356
26SUPPORT, HOSE
27MAY 23002461
28MAY 23002756
29MAY 23001312
30MAY W10361724
31MAY 23002212
32MAY W10357103
33HOLDER, SPRING (LWR)
34SHOCK ABSORBER COMPLETE
