MFS25PNFTS 01 – FRAME
Written by
in

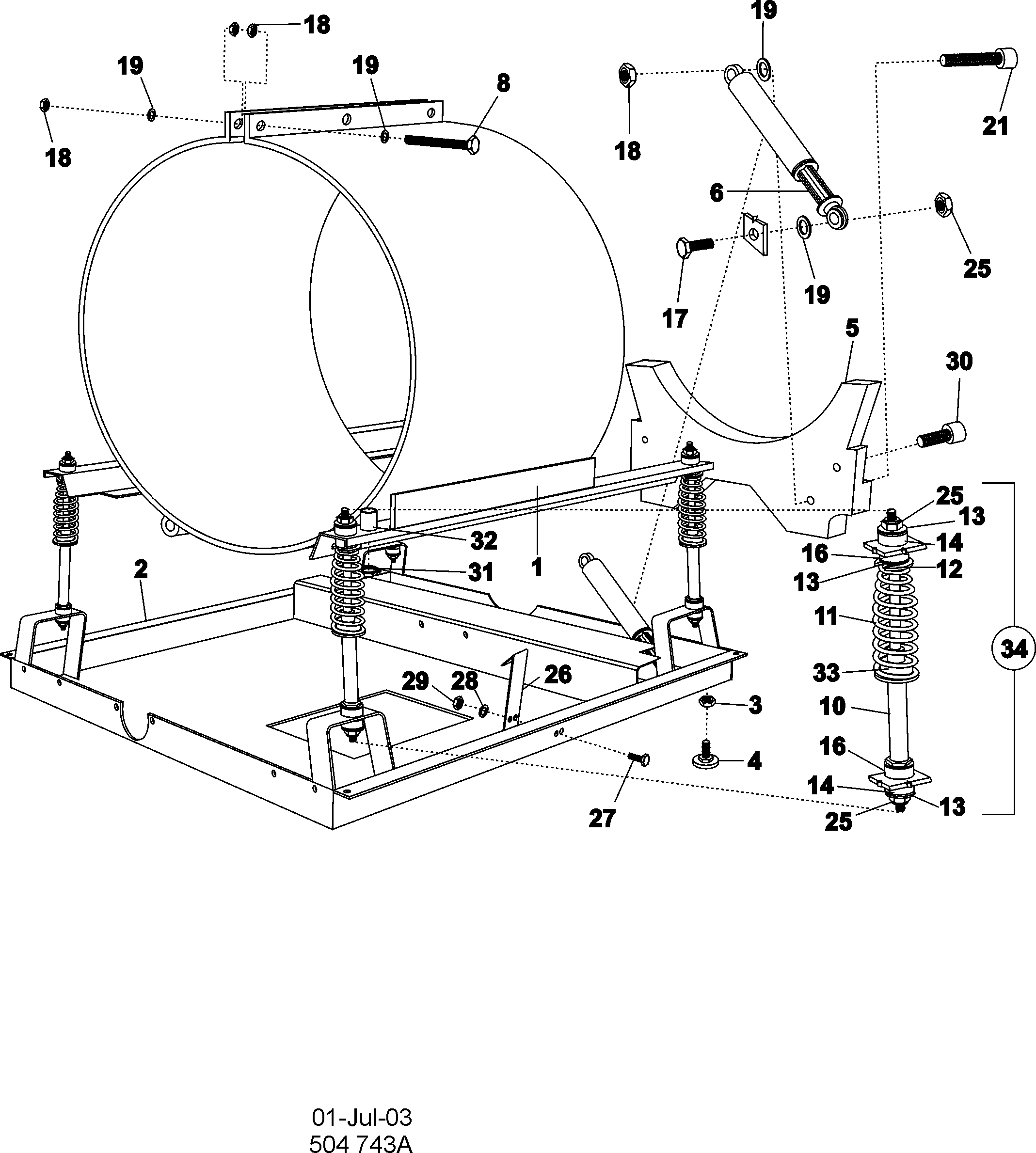

MFS25PNFTS 01 – FRAME
Products
| Position | Product |
|---|---|
| 001 | DRUM-MOTOR SUPPORT 25No. |
| 002 | FRAME 25No. |
| 004 | LEG |
| 005 | MAY 23004464 |
| 006 | DAMPER (RD 12-2) |
| 008 | MAY 23002351 |
| 010 | LEG, SPRING |
| 011 | SPRING (YELLOW) |
| 011 | SPRING (RED) |
| 012 | HOLDER, SPRING (UPR) LU |
| 013 | WASHER |
| 014 | RUBBER (BLK-UPR) |
| 016 | RUBBER (BLK-LWR) LU |
| 017 | MAY 23003285 |
| 018 | MAY 23003764 |
| 019 | MAY 23003788 |
| 021 | MAY 23004465 |
| 025 | MAY 23002356 |
| 026 | SUPPORT, HOSE |
| 027 | MAY 23002461 |
| 028 | MAY 23003778 |
| 029 | MAY 23003773 |
| 030 | MAY 23004467 |
| 031 | MAY 23002212 |
| 032 | DOWEL PIN FOR HANDLE |
| 033 | HOLDER, SPRING (LWR) |
| 034 | SHOCK ABSORBER COMPLETE |
