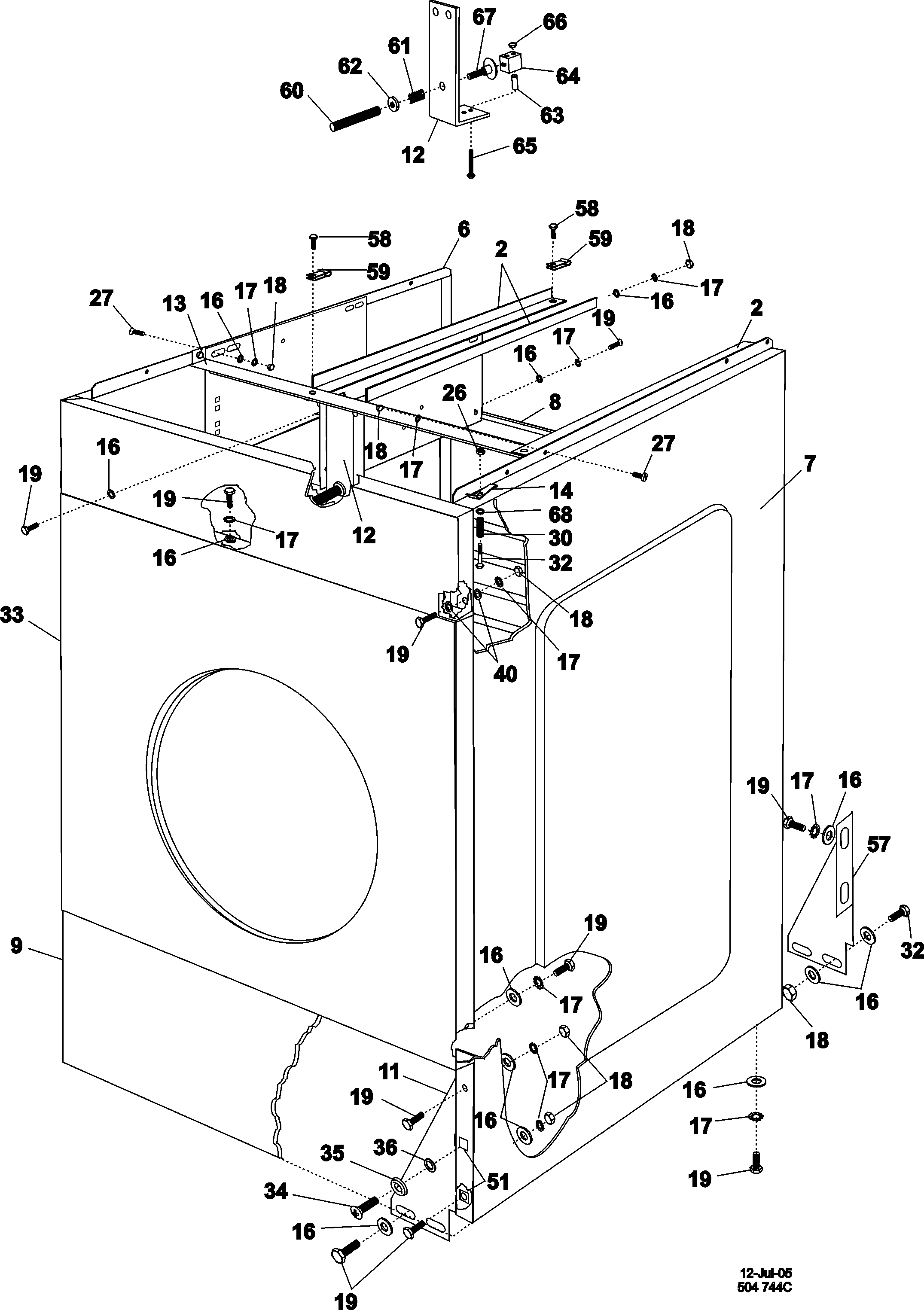

MFS25PNFTS 02 – CABINET
Products
| Position | Product |
|---|---|
| 002 | SUPPORT, ELEC DEVICES |
| 006 | PANEL LH, 25LB |
| 007 | PANEL RH, 25LB |
| 008 | PANEL, REAR 25LB |
| 009 | PANEL, SERVICE 25LB |
| 011 | CABINET HOLDER-FRONT |
| 012 | PLATE, BALANCE |
| 013 | REINFORCEMENT, CABINET |
| 014 | MAY 23001442 |
| 016 | MAY 23002469 |
| 017 | MAY 23002756 |
| 018 | MAY 23003773 |
| 019 | MAY 23002461 |
| 026 | MAY 23002471 |
| 027 | DOWEL PIN FOR HANDLE |
| 030 | MAY 23001445 |
| 032 | MAY 23002463 |
| 033 | MAY 23004477 |
| 034 | MAY 23002456 |
| 035 | MAY 23002457 |
| 036 | MAY 23002458 |
| 040 | MAY 23003778 |
| 051 | MAY 23002455 |
| 057 | BRACKET, BACK RH |
| 057 | BRACKET, BACK LH |
| 058 | MAY 23004480 |
| 059 | SPEEDNUT |
| 060 | SPRING |
| 061 | SPRING |
| 062 | MAY 23002504 |
| 063 | SPACER |
| 064 | MICRO SWITCH |
| 065 | MAY 23002906 |
| 066 | MAY 23002958 |
| 067 | SPRING HOLDER TILTSWITCH |
| 068 | MAY 23001027 |
