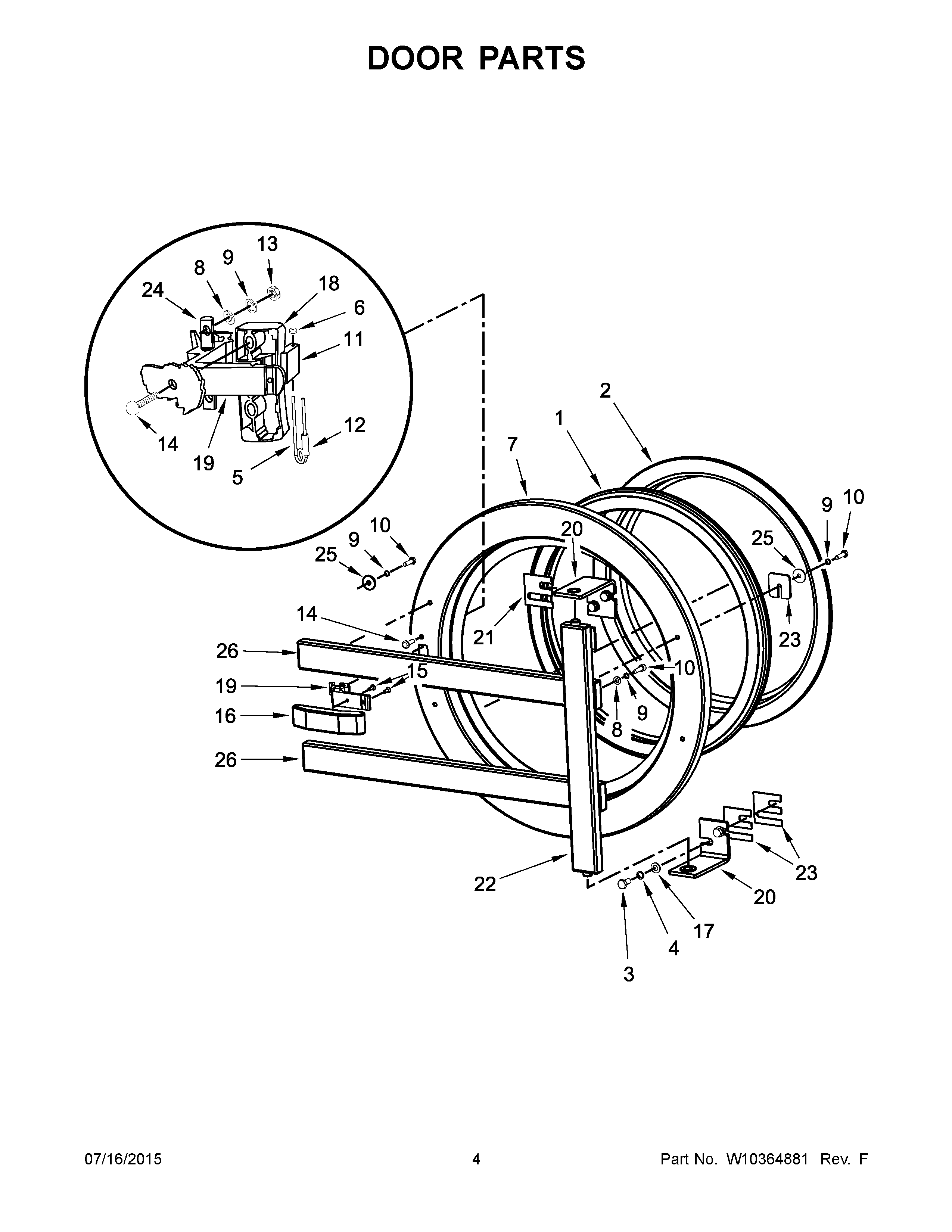

MFS35PDFTS 03 – DOOR PARTS

MFS35PDFTS 03 – DOOR PARTS

Written by

in

MFS35PDFTS 03 – DOOR PARTS

Products

PositionProduct
1MAY W10292561
2MAY 23004109
3SCREW (M8 X 15)
4WASHER (8) LU
5MAY 23001169
6MAY 23002499
7MAY W10286307
8MAY 23002424
9SPRING, LOCKWASHER (M6)
10SCREW (M6 X 20) LU
11MAY 23001173
12MAY W10304861
13MAY 23002280
14MAY 23001175
15MAY 23004113
16MAY 23003860
17MAY 23001608
18MAY 23001370
19MAY 23003858
20MAY W10286308
21MAY W10304862
22DOORHOLDER
23MAY W10286310
24SHAFT, LEVER
25MAY W10431220
26MAY W10286312
