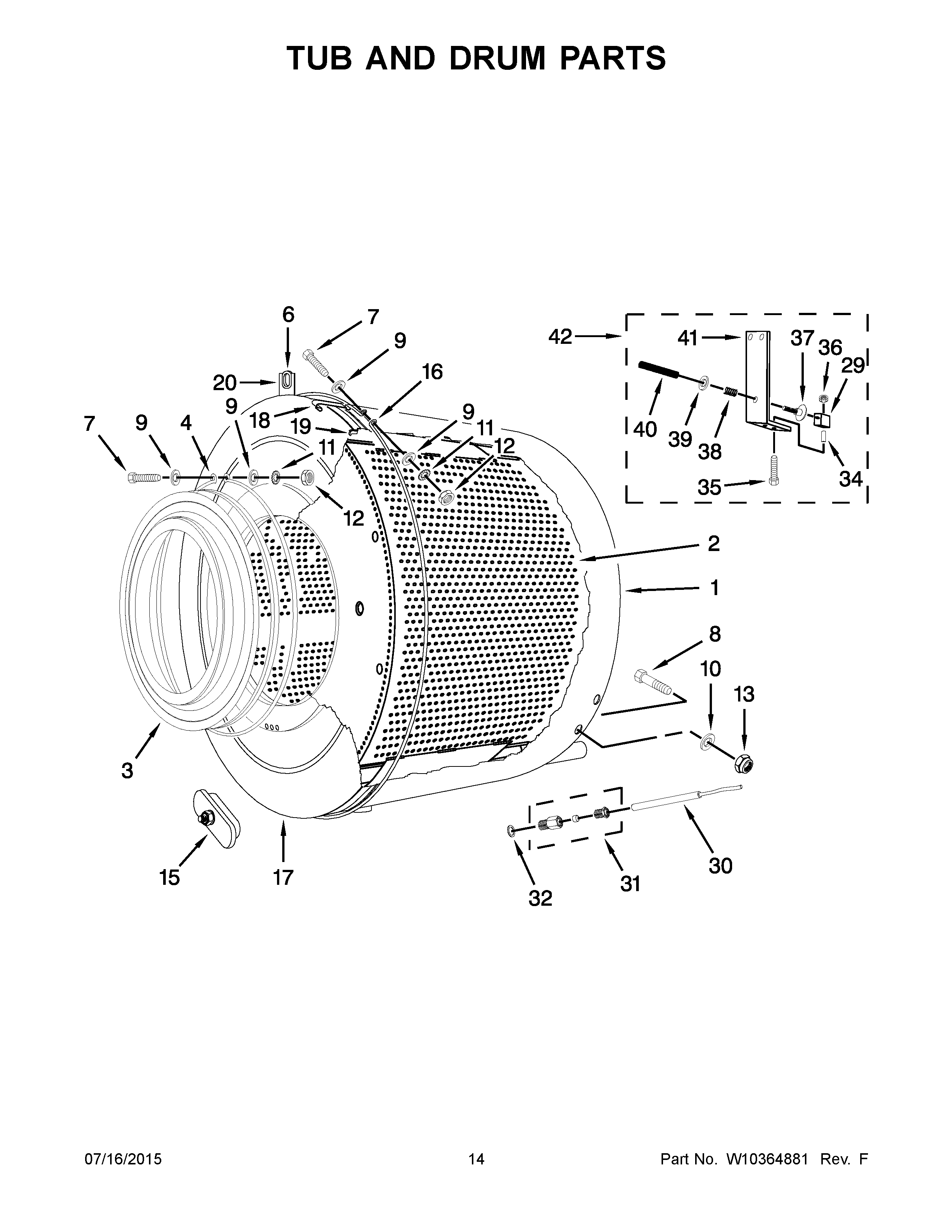

MFS35PDFTS 08 – TUB AND DRUM PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	O RING
1	MAY 23003897
2	MAY 23004410
3	HOUSING, TUB
4A	MAY W10357140
4	RING, FIXATION
6	PASSAGE, CABLE
7	MAY 23004000
8	MAY 23003079
9	MAY 23001309
10	MAY 23004146
11	MAY 23002756
12	MAY 23001312
13	NUT (M6)
15	MAY 23001594
16	MAY 23004142
17	MAY 23004411
18	MAY 23004141
19	MAY 23004148
20	PLATE, DETECTION TILTSWITCH
29	MICRO SWITCH
30	MAY 23003831
31	MAY W10382922
32	MAY 23002179
34	SPACER
35	SCREW M3X25
36	MAY 23001053
37	SPRING HOLDER TILTSWITCH
38	SPRING
39	MAY 23002951
40	SPRING
41	MAY W10427109
42	TILT SWITCH COMPLETE
