MFS35PDFTS 09 – DRAIN SYSTEM PARTS – Aparts

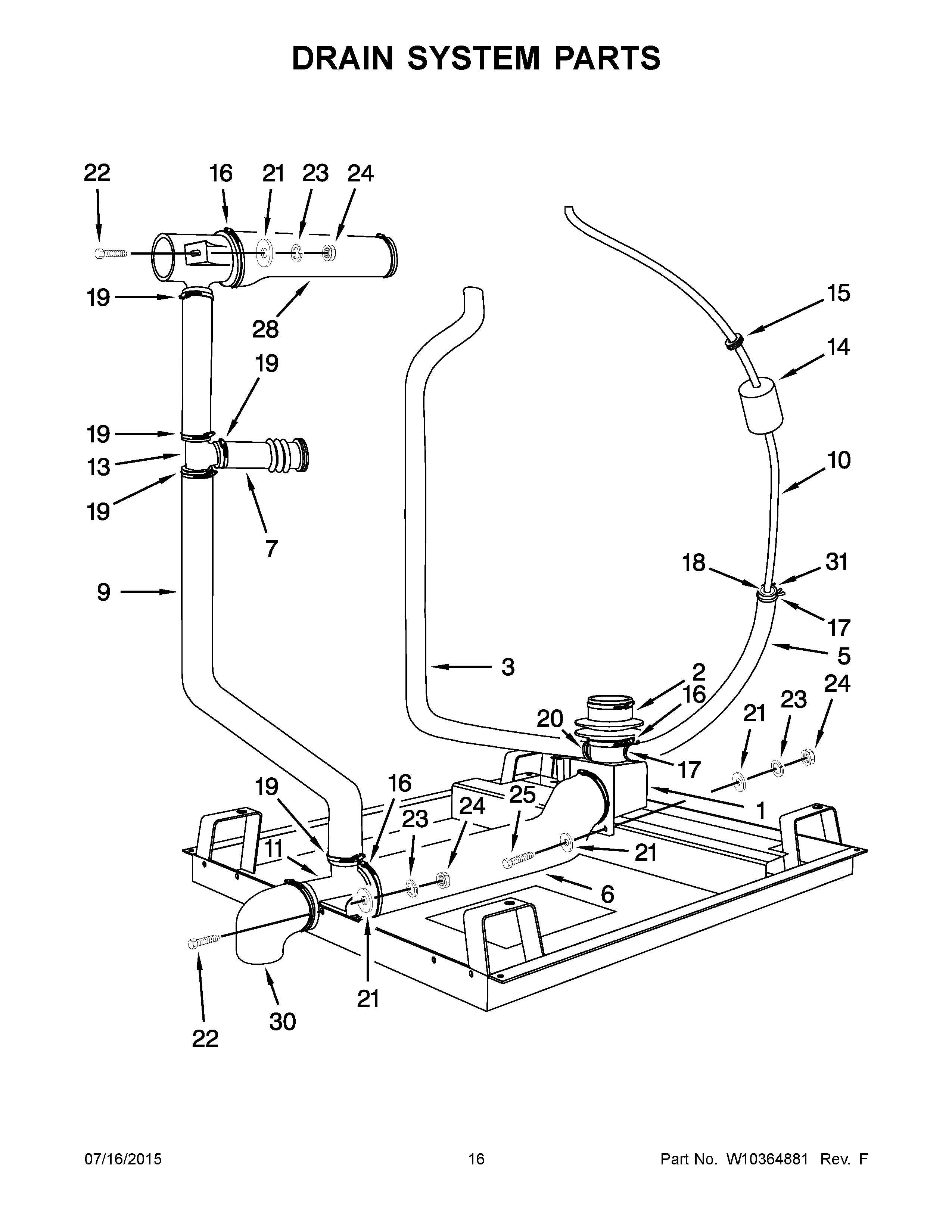

MFS35PDFTS 09 – DRAIN SYSTEM PARTS

Products

Position	Product
1A	MAY W10126968
1B	MAY W10357127
1	MAY 23001244
2	MAY 23001245
3	MAY W10357129
5	MAY 23001246
6	MAY 23001249
7	MAY 23001250
9	MAY 23001251
10	MAY 23001252
11	DRAIN TEE
13	MAY 23001255
14	FOAM RUBBER AQUASTATE
15	MAY 23001138
16	HOSE CLAMP
17	MAY 23001259
18	MAY 23001260
19	MAY 23001750
20	HOSE CLAMP
21	MAY 23002437
22	MAY 23001264
23	WASHER M8
24	MAY 23003766
25	MAY 23002908
28	MAY 23004241
30	MAY 23002015
31	HOSE CLAMP
