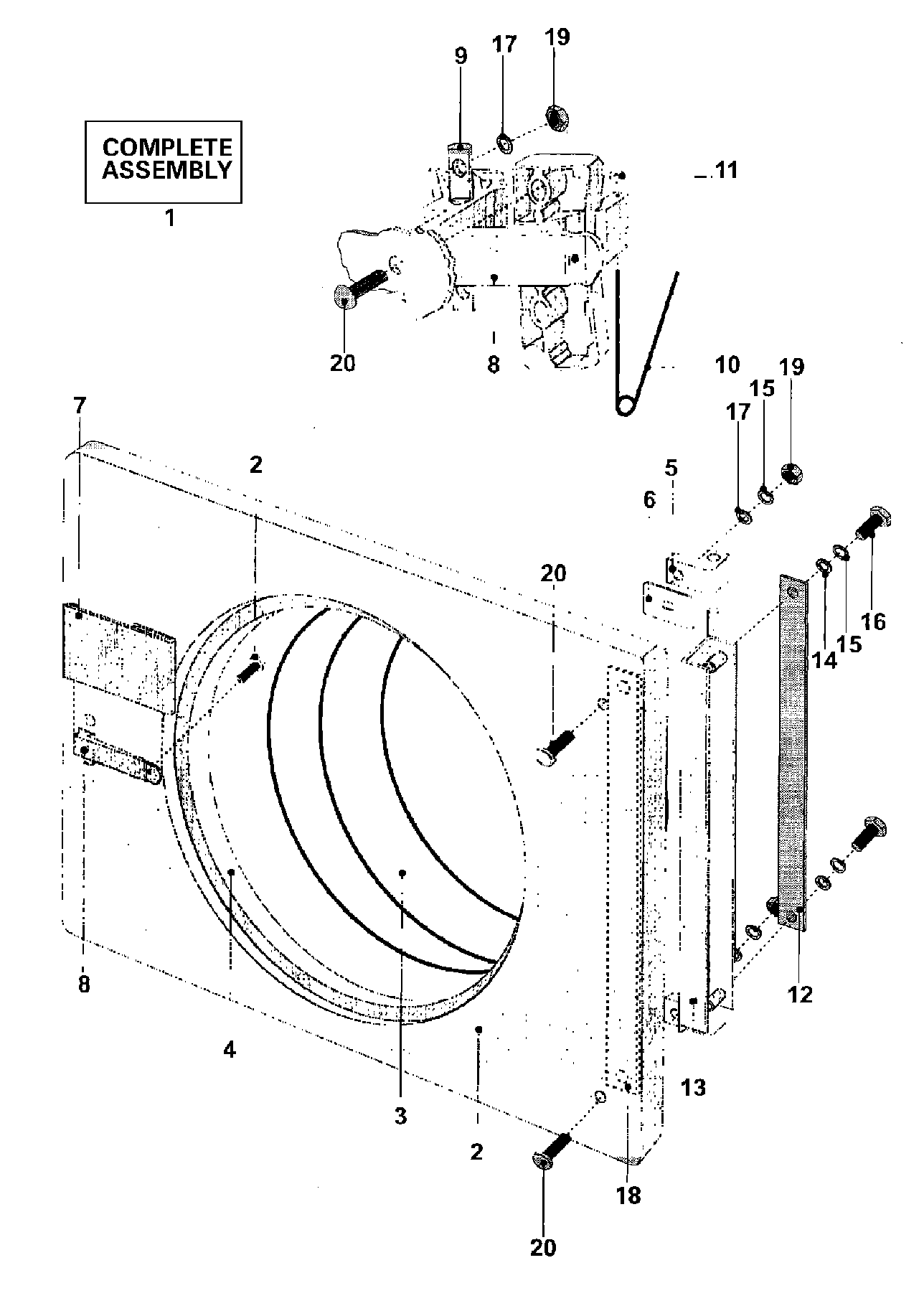

MFS35PNAVS 10 – DOOR
Written by
in
MFS35PNAVS 10 – DOOR
Products
| Position | Product |
|---|---|
| 001 | MAY 23003543 |
| 002 | MAY 23001177 |
| 003 | GLASS, DOOR |
| 004 | MAY 23001365 |
| 005 | MAY 23003545 |
| 007 | HANDLE, DOOR (BACK) MUST PURCHASE 23003700 ASSY |
| 007 | MAY 23001614 |
| 007 | MAY 23003631 |
| 008 | MAY 23001167 |
| 008 | MAY 23003633 |
| 009 | SHAFT, LEVER |
| 010 | MAY 23001169 |
| 011 | MAY 23001057 |
| 013 | MAY 23003548 |
| 015 | SPRING, LOCKWASHER (M6) |
| 016 | MAY 23001371 |
| 017 | MAY 23001159 |
| 018 | DOWEL PIN FOR HANDLE |
| 019 | MAY 23001176 |
| 020 | MAY 23002937 |
