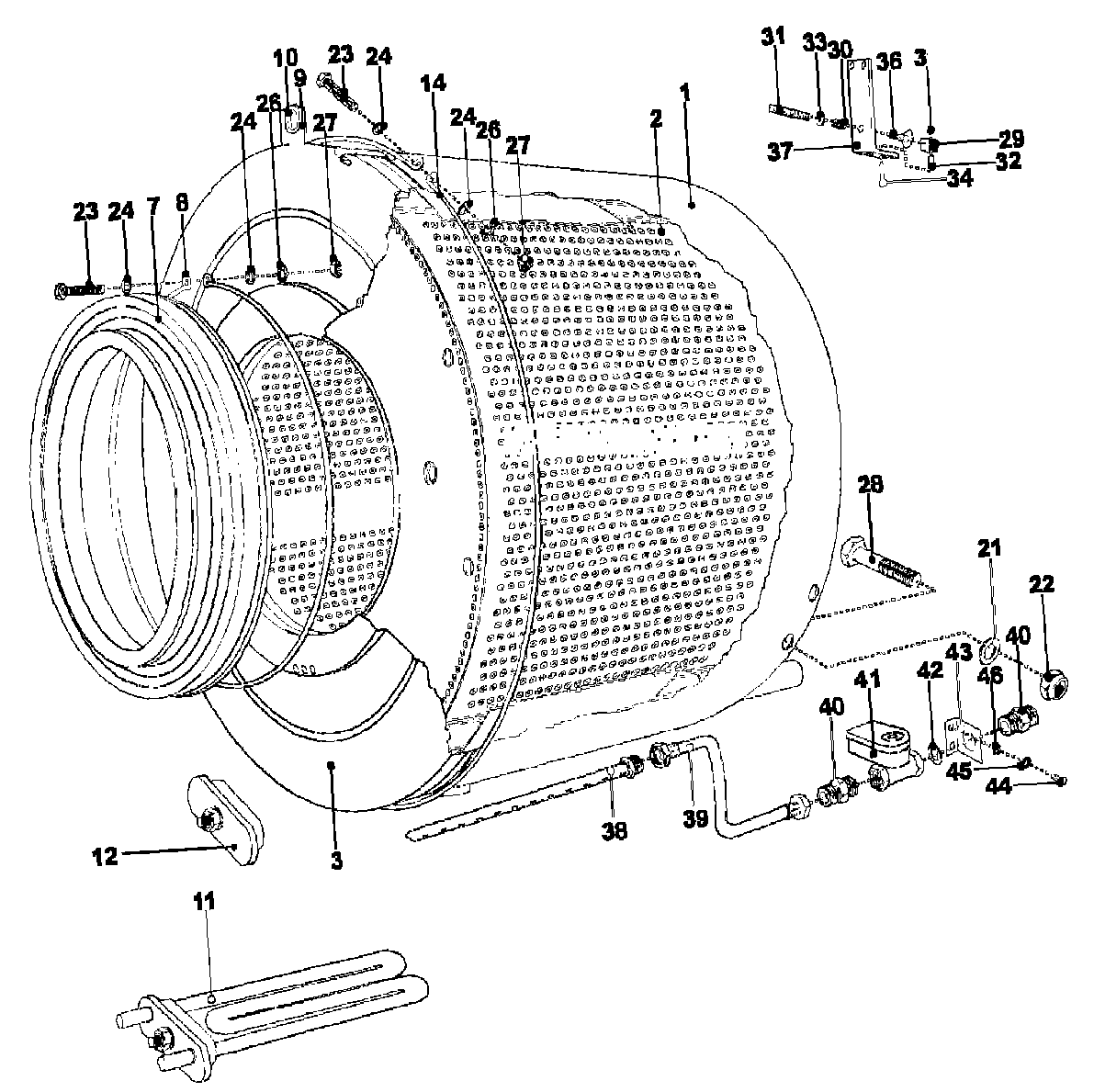

MFS35PNDVS 10 – WASH DRUM AND TUB
Written by
in
MFS35PNDVS 10 – WASH DRUM AND TUB
Products
| Position | Product |
|---|---|
| 001 | MAY 23003599 |
| 001 | MAY 23003897 |
| 002 | MAY 23003600 |
| 003 | MAY 23003898 |
| 007 | HOUSING, TUB |
| 008 | RING, FIXATION |
| 009 | PLATE, DETECTION TILTSWITCH |
| 010 | PASSAGE, CABLE |
| 011 | MAY 23002191 |
| 012 | MAY 23001594 |
| 014 | MAY 23003603 |
| 023 | MAY 23003541 |
| 027 | NUT (M6) |
| 028 | MAY 23003595 |
| 029 | MICRO SWITCH |
| 030 | SPRING |
| 031 | SPRING |
| 032 | SPACER |
| 033 | MAY 23002951 |
| 034 | SCREW M3X25 |
| 035 | MAY 23001053 |
| 036 | SPRING HOLDER TILTSWITCH |
| 037 | MAY 23003905 |
| 039 | STEAM HOSE |
| 040 | MAY 23003907 |
| 041 | DOWEL PIN FOR HANDLE |
| 042 | MAY 23003908 |
| 043 | MAY 23003912 |
| 044 | MAY 23001026 |
| 045 | MAY 23001028 |
| 046 | MAY 23001309 |
