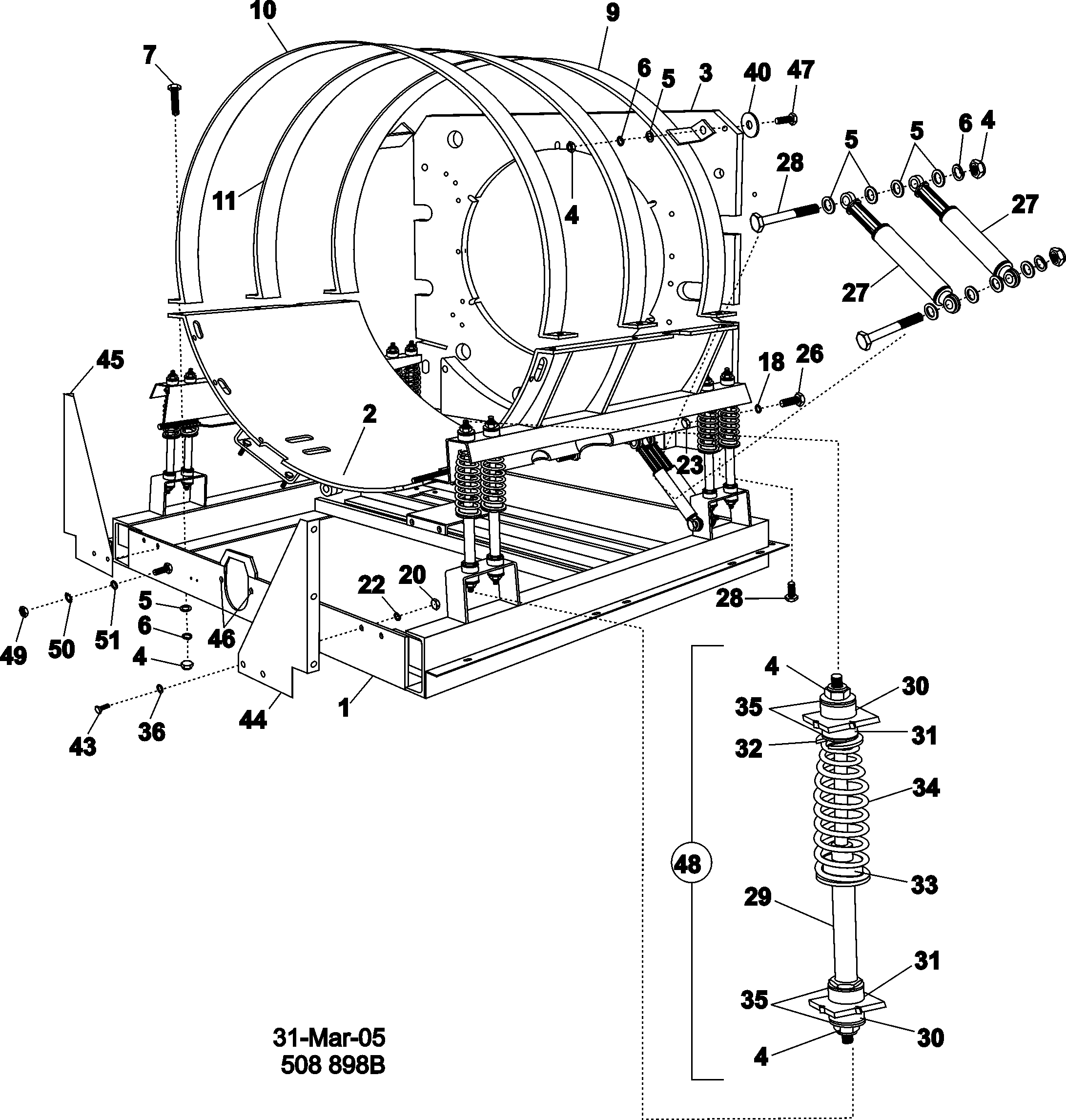

MFS35PNFTS 01 – FRAME AND TUB SUPPORT
Products
| Position | Product |
|---|---|
| 001 | MAY 23004369 |
| 002 | MAY 23004370 |
| 003 | MAY 23004371 |
| 004 | MAY 23001241 |
| 006 | MAY 23001400 |
| 007 | MAY 23001425 |
| 009 | MAY 23004372 |
| 010 | MAY 23003565 |
| 011 | MAY 23003878 |
| 018 | MAY 23001757 |
| 020 | MAY 23001266 |
| 022 | MAY 23002439 |
| 023 | MAY 23004281 |
| 027 | DAMPER (RD 12-2) |
| 028 | MAY 23003570 |
| 029 | LEG, SPRING |
| 030 | RUBBER (BLK-LWR) LU |
| 031 | RUBBER (BLK-UPR) |
| 032 | HOLDER, SPRING (UPR) LU |
| 033 | HOLDER, SPRING (LWR) |
| 034 | SPRING (RED) |
| 035 | WASHER |
| 036 | MAY 23001263 |
| 040 | MAY 23001282 |
| 043 | MAY 23001388 |
| 044 | MAY 23003881 |
| 045 | MAY 23003882 |
| 046 | DOWEL PIN FOR HANDLE |
| 047 | SCREW (M10X30) |
| 048 | SHOCK ABSORBER COMPLETE |
| 049 | MAY 23002487 |
| 050 | MAY 23001608 |
| 051 | MAY 23002427 |
