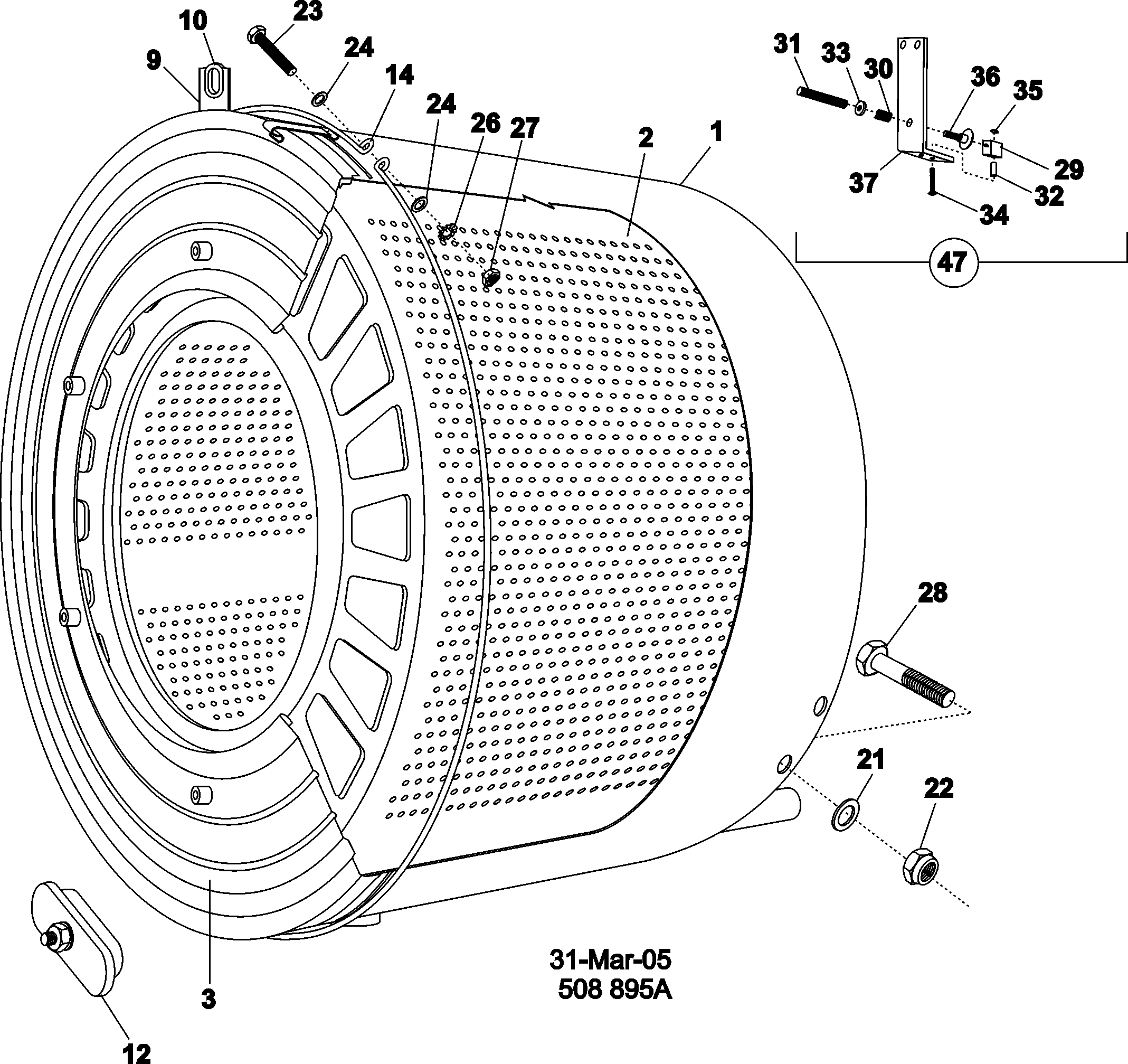

MFS35PNFTS 10 – WASH DRUM AND TUB
Written by
in
MFS35PNFTS 10 – WASH DRUM AND TUB
Products
| Position | Product |
|---|---|
| 001 | MAY 23003897 |
| 002 | MAY 23004410 |
| 003 | MAY 23004522 |
| 003 | MAY 23004411 |
| 009 | PLATE, DETECTION TILTSWITCH |
| 010 | PASSAGE, CABLE |
| 012 | MAY 23001594 |
| 014 | MAY 23004142 |
| 022 | DOWEL PIN FOR HANDLE |
| 023 | MAY 23003541 |
| 024 | MAY 23001309 |
| 026 | MAY 23001028 |
| 027 | NUT (M6) |
| 028 | MAY 23004523 |
| 029 | MICRO SWITCH |
| 030 | SPRING |
| 031 | SPRING |
| 032 | SPACER |
| 033 | MAY 23002951 |
| 034 | SCREW M3X25 |
| 035 | MAY 23001053 |
| 036 | SPRING HOLDER TILTSWITCH |
| 037 | MAY 23003905 |
| 047 | TILT SWITCH COMPLETE |
