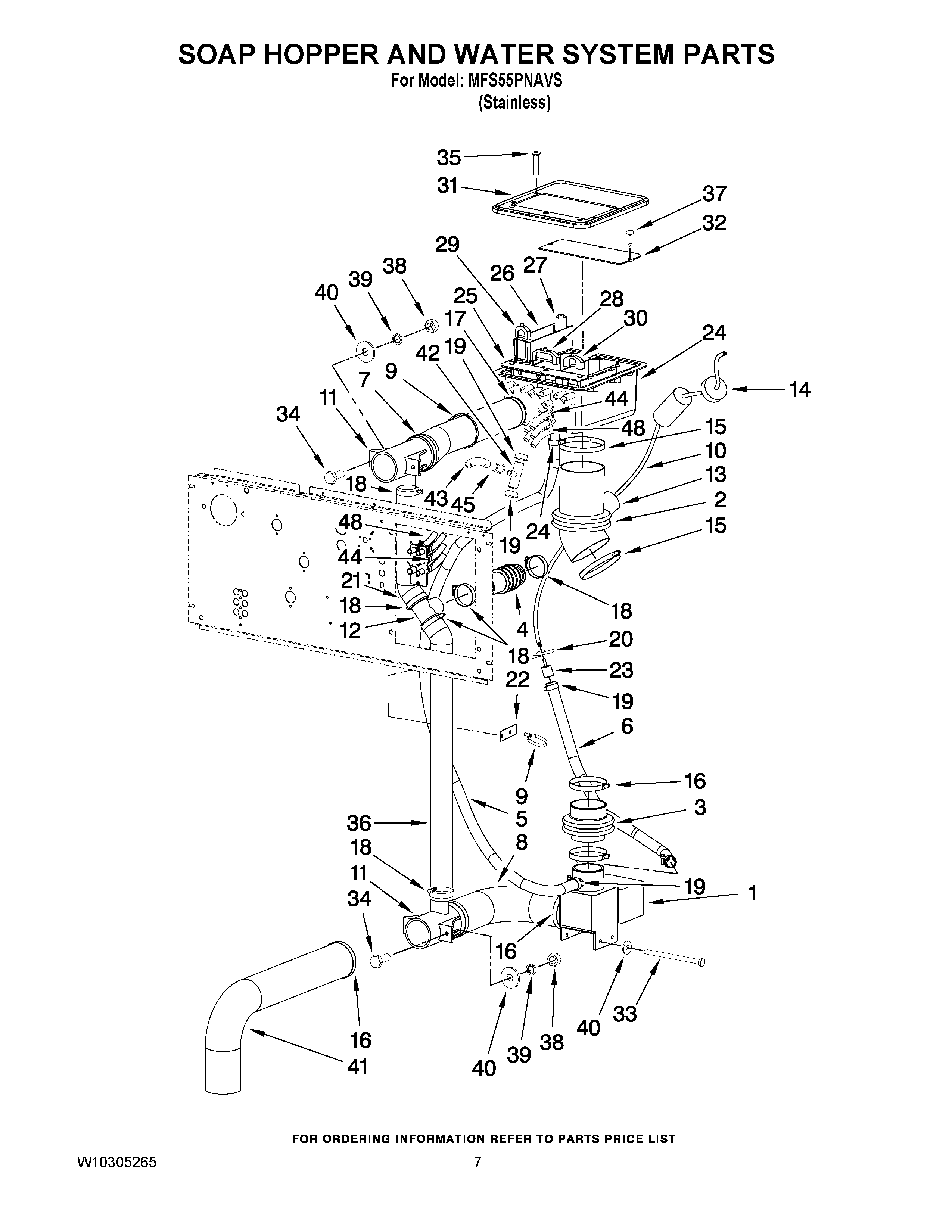

MFS55PNAVS 06 – SOAP HOPPER AND WATER SYSTEM PARTS
Written by
in
MFS55PNAVS 06 – SOAP HOPPER AND WATER SYSTEM PARTS
Products
Position
Product
NI
MAY 23004242
NI
MAY W10286348
1
MAY 23001244
2
MAY W10286335
3
MAY 23001245
4
MAY 23001250
5
MAY W10286336
6
MAY W10286337
7
MAY W10286338
8
MAY W10286339
9
MAY W10286340
10
MAY 23001252
11
DRAIN TEE
12
MAY 23001255
13
FOAM RUBBER AQUASTATE
14
MAY 23003486
15
MAY 23001025
16
HOSE CLAMP
17
HOSE CLAMP
18
MAY 23001750
19
HOSE CLAMP
20
HOSE CLAMP
21
MAY W10286341
22
MAY 23003791
23
MAY 23001260
24
SOAP BOX HOUSING
25
SOAP BOX INSERT
26
MAY 23001019
27
MAY 23001018
28
MAY 23001022
29
MAY 23001023
30
MAY 23001021
31
MAY 23001015
32
MAY 23001020
33
MAY 23002908
34
MAY 23001264
35
MAY 23003484
36
MAY W10286342
37
MAY 23003782
38
MAY 23001266
39
MAY 23001265
40
MAY 23002437
41
MAY 23002015
42
MAY W10304864
43
MAY W10223170
44
MAY W10286344
45
MAY W10286346
48
MAY 23002193
←
