MFS55PNAVS 07 – REAR PANEL PARTS – Aparts

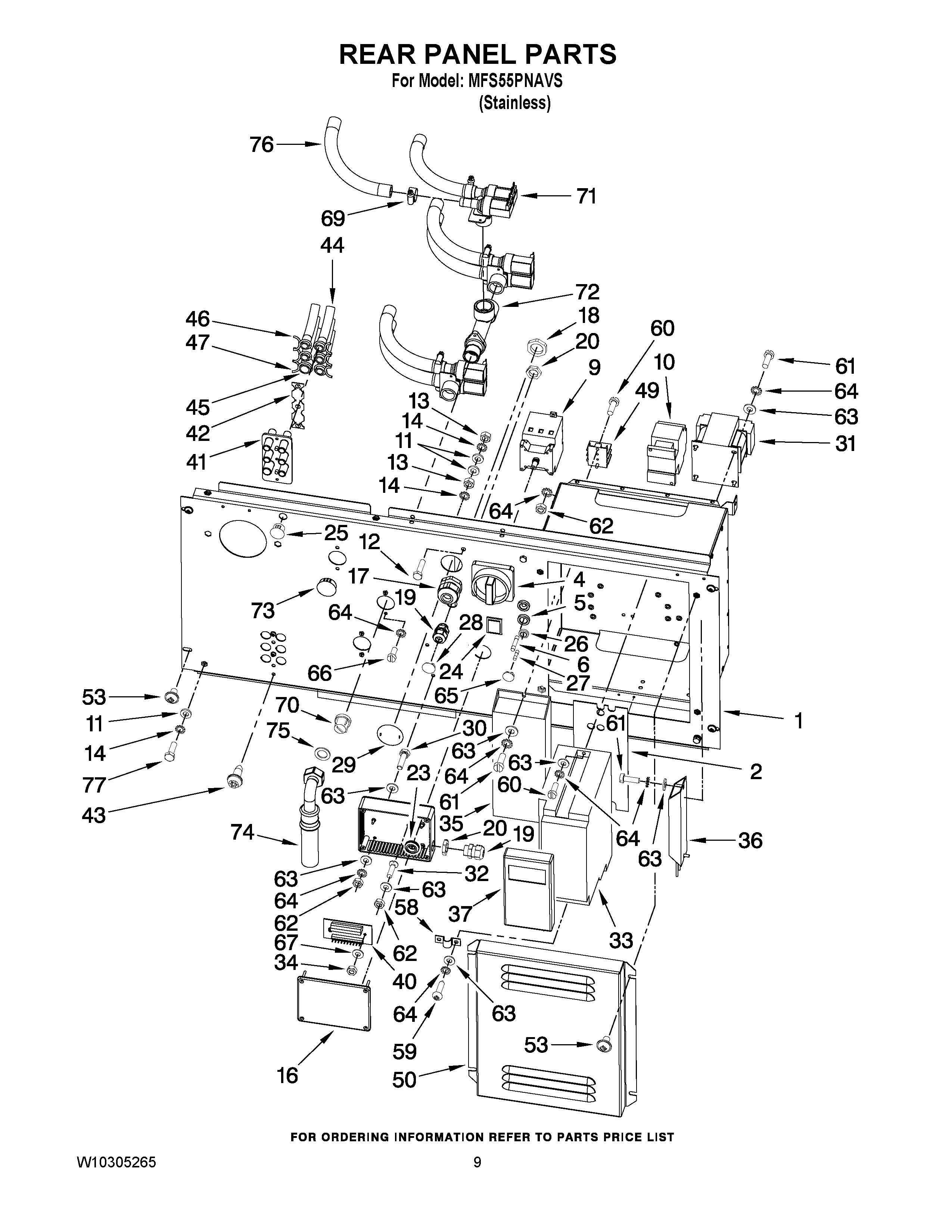

MFS55PNAVS 07 – REAR PANEL PARTS

Products

Position	Product
NI	MAY W10286353
1	MAY W10286349
2	MAY W10286350
4	KNOB
5	MAY 23002210
6	WP22001555 Whirlpool Fuse Assembly
9	SWITCH, MAIN (25A)
10	MAY 23003750
11	MAY 23002424
12	MAY 23002809
13	MAY 23001312
14	MAY 23002425
16	MAY W10304865
17	MAY 23004395
18	MAY 23004397
19	BUSHING,FOR PUMPS
20	WARTEL NUT, FOR PUMPS
23	MAY 23002834
24	MAY 23001452
25	MAY 23002794
26	MAY 23001462
27	MAY 23002919
28	MAY 23003785
29	MAY 23002150
30	MAY 23004095
31	MAY W10286352
32	MAY 23001468
33	FREQUENCY INVERTER
34	NUT M3
35	MAY W10286354
36	BRAKE RESISTOR
37	MAY W10304866
40	MAY W10286355
41	MAY W10223169
42	MAY 14227179
43	MAY W10131119
44	MAY 23002193
45	MAY W10223170
46	MAY W10286356
47	MAY W10286357
49	MAY 23002959
50	MAY W10286358
53	MAY W10286359
58	MAY 23004094
59	MAY W10286360
60	MAY 23001089
61	MAY 23002721
62	MAY 23001014
63	MAY 23002438
64	MAY 23002950
65	PLUG
66	MAY 23001361
67	MAY 23003654
69	HOSE CLAMP
70	MAY 23002922
71	MAY 23001455
72	MAY 23002924
73	MAY 23001476
74	MAY 23001523
75	MAY 23002921
76	MAY 23001507
77	SCREW (M6 X 20) LU
